60-80KVA Industrial Online UPS 380 / 400 / 415 VAC Three Phase Full Digital Control
-
High Light
LCD monitor Industrial Online UPS
,Cubical Industrial Online UPS
,80KVA Industrial UPS Power Supply
-
ColorWhite
-
Output Frequency50/60Hz Configurable
-
Battery TypeMaintenance-free Lead-acid VRLA AGM/GEL;NICd
-
Capacity48~64KW
-
Output Voltage380/400/415 Vac Three-phase
-
Regulation Of The Output Voltage348~424Vac Phase/neutral(from Control Panel)
-
Operation Temperature0℃±40℃
-
Rated Voltage(V)380/400/415Vac
-
Weight440kg，520kg
-
ComplianceSafty: EN 62040-1-1(Directive 2006/95/EC);EMC:6200-2(Directive 2004/108/EC)
-
Place of OriginMADE IN CHINA
-
Brand NameIndustrial UPS Power Supply
-
CertificationCE
-
Model Number60-80KVA Industrial Online UPS | CNI330
-
PriceNegotiable
-
Packaging DetailsExport Standard Package
-
Delivery Time2 weeks
-
Payment TermsT/T

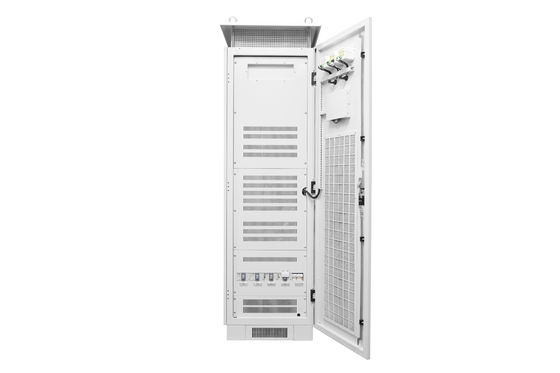

60-80KVA Industrial Online UPS 380 / 400 / 415 VAC Three Phase Full Digital Control
60-80KVA Industrial Online UPS 380 / 400 / 415 VAC Three Phase Full Digital Control
Industrial UPS Power Supply features:
- Static bypass has a strong anti-overload capability.
- Full digital control technique.
- Intelligent detecting and monitoring function.
- Digital control static switch and zero changeover time.
- Full isolation between input and output.
- DC panel and utility power are full isolated.
- Adopt full digital control technology.
- Intelligent detection and monitoring function.
- Digitally control the static switch with zero switch.
- Full isolation between input and output.
- Super low output zero earth voltage.
- DC UPS isolated with utility power completely.
- Cubical design with power standard (customization).
- Multifunctional protection for over-voltage, under voltage, over current, short circuit and over temperature and so on.
- Large-screen LCD monitor with Chinese and English operation interface.
- Ultra-long 256 event record, user-friendly analysis and management to the situation of the power supply (touch screen display).
Industrial UPS Power Supply Description:
| Model | 60KVA | 80KVA | |
| Capacity | 48KW | 64KW | |
| Input | |||
| Rated voltage | 380/400/415 Vac three-phase | ||
| Voltage range | ±20% | ||
| Frequency range | 50/60HZ±5% | ||
| Power factor | ≥0.8 | ||
| Current harmonic distortion | <5%with harmonic filter | ||
| Soft Start | 0-100% in 10″ | ||
| Bypass Input | |||
| Rated voltage | 380/400/415 Vac single-phase | ||
| Permitted voltage range | ±15%(selectable from ±10% to±25% from front panel) | ||
| Rated frequency | 50/60Hz | ||
| Permitted frequency range | ±2%(selectable from ±1% to 5% from front panel) | ||
| Standard features | BackFeed portection;split bypass line | ||
| Batteries | |||
| Type | Maintenance-free lead-acid VRLA AGM/GEL;NICd | ||
| Maximum recharge current(A) | 0.2 X C10 | ||
| DC Voltage | 384VDC | ||
| AC ripple voltage | <1% | ||
| Inverter output | |||
| Number of phases | 3+N | ||
| Rated voltage(V) | 380/400/415Vac | ||
| Regulation of the output voltage | 348~424Vac phase/neutral(from control panel) | ||
| Crest factor(Ipeak/Irms) | 3:1 | ||
| Static stability | ±1% | ||
| Dynamic stability | ±5% | ||
| Frequency | 50/60Hz configurable | ||
| Overload | 110% 125% 150% of the rated current for 5h/10’/1′ | ||
| Frequency stability | ±0.05% on mains failure;±2%(selectable from ±1% to ±5%)with mains supply present | ||
| System | |||
| Remote signaling | Volt free contacts | ||
| Remote controls | EPO and Bypass | ||
| Communication | RS232+romote contacts | ||
| Operation temperature | 0℃/+40℃ | ||
| Relative humidity | <95% non condensing | ||
| Colour | Light grey (RAL7035) | ||
| Noise | 50-80dBA at 1m | ||
| Protection degree | IP42 | ||
| Efficiency Smart Mode | up to 98% | ||
| Compliance | Safty: EN 62040-1-1(Directive 2006/95/EC);EMC:6200-2(Directive 2004/108/EC) | ||
| Weight(KG)N.W | 440 | 520 | |
