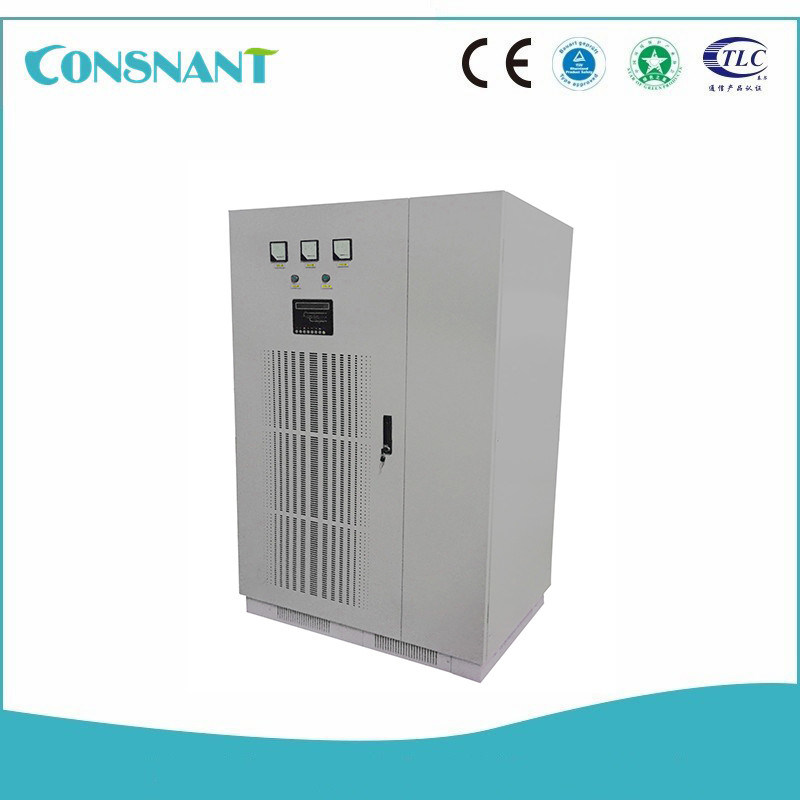

100KVA 80KW Industrial Uninterruptible Power Supply , Single Phase Industrial Ups Systems

100KVA 80KW Industrial Uninterruptible Power Supply , Single Phase Industrial Ups Systems

  • High Light

    industrial uninterruptible power supply systems

    ,

    industrial ups battery backup

  • Operation Temperature
    0ºC/ + 40ºC
  • Relative Humidity
    384VDC
  • Color
    0-100% In 10”
  • Noise
    54~65aBA At 1m
  • Protection Degree
    IP42
  • Efficiency Smart Mode
    Up To 98%
  • Place of Origin
    Shenzhen, China
  • Brand Name
    CONSNANT
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
    CNI310
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Export Standard Package
  • Delivery Time
    15-20 days after receiving 30% deposit
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    1000 pieces per year

100KVA 80KW Industrial Uninterruptible Power Supply , Single Phase Industrial Ups Systems



RS232 Communication Industrial UPS Power Supply

3ph / 1ph 10-100KVA






Industrial Grade Design:



The CNI310 system is composed of power special-purpose UPS, DBW regulator cabinet, PDU series feeder cabinet. CONSNANT Company apply herself to the development of China’s electricity demands for power plants, substations, power distribution products are designed with online double conversion, zero conversion function. Main applications including electric power long distance, RTU, power carrier wave, power monitoring and so on. When the utility power is normal, single phase 220V. After isolation, rectification and filtering through the inverter to provide a stable power supply to the load; if the input AC power is abnormal or power failure, the backup power system by the DC screen provide power through non-return diode inverter. When the DC screen occurs voltage shortage or power break, the static switch transfer to bypass for power supply; when the electricity is restored, the inverter automatically switches to utility power and provide power supply under inverter mode. If the inverter overload or fault and transfer power supply is under bypass mode, UPS also gives a warning signal at the same time.



System Features:



Protection degree is IP42, highly protecting the electronics inside the cabinet. Efficiency smartmode up to 98%, save power consumption and improve environment protection. CNI310 meet with EN 62040-1-1(Directive 2006/95/EC); EMC:6200-2(Directive 2004/108/EC), qualitication ensured.





Application:



Petroleum, chemical industry, gas and power station and so on.





Optional Spare Part:



  • SNMP card
  • Dry contact card
  • Signal transmitter
  • Bypass isolation and voltage regulation
  • Increase feeder circuit (standard for 8 loops)
  • 12 pulse rectifier
  • The appearance of special models(standard dimension:800×600×2260mm)



FAQ:



Q1: What's included in products?

A: It is included UPS unit, user manual, 2% spare parts for emergency, test certificate(optional)


Q2. Your UPS meet CE requirements?

A:Our UPS is with the certificate of CE, ISO and .Chinese TLC certificates.



Q3: Can we change the shape, size, color or printing based on the original design?

A: Yes, and OEM, ODM accepted


Q4:. Can you design one specially?

A: Yes



Technical parameter:



CNI310 10-100KVA
Model 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA 80KVA 100KVA
Capacity 8KW 12KW 16KW 24KW 32KW 48KW 64KW 80KW
Input
Rated voltage 380/400/415 Vac three
Voltage range ±20%
Frequency range 50/60HZ±5%
Power factor ≥0.8
Current harmonic distortion <5%with harmonic filter
Soft start 0-100% in 10”
Bypass Input
Rated voltage 220/230/240Vac single-phase
Permitted voltage range ±15%(selectable from ±10% to ±25% from front panel)
Rated frequency 50/60Hz
Permitted frequency range ±2%(selectable from ±1% to ±5% from front panel)
Standard features BackFeed protection; split bypass line
Batteries
Type Maintenance-free lead-acid VRLA AGM / GEL;NICd
Maximum recharge current(A) 0.2 X C10
DC Voltage 384VDC
AC ripple voltage <1%
Inverter output
Number of phase 1
Rated voltage(V) 230Vac single phase
Regulation of the output voltage 220~244Vac phase/neutral(from control panel)

Crest factor

(Ipeak/Irms)

3:1
Static stability ±1%
Dynamic stability ±5%
Frequncy 50/60Hz configurable
Overload 110% 125% 150% of the rated current for 5h/10'/1'
Frequency stability ±0.05% on mains failure;±2%(selectable from ±1% to ±5%)with mains supply present
