LCD Monitoring Panel  APF Accusine Active Harmonic Filter , Industry Grade Electrical Harmonics Filters

LCD Monitoring Panel APF Accusine Active Harmonic Filter , Industry Grade Electrical Harmonics Filters

  • High Light

    harmonic distortion filter

    ,

    accusine active harmonic filter

  • Voltage Range
    380×(1±15%)V
  • Frequency Range
    50×(1±1%)Hz
  • Compensating Rate (THDILoad-THDIS)/ THDILoad
    ≥85%
  • Order Of Harmonic Compensation
    Within 5~13: Selectable Or Within 2~25: All Compensation
  • Protection Level
    IP20
  • Protection
    Grid Over-voltage, Grid Under-voltage, Grids Missing Phase, Grid Wrong Phase, The Machine Over Current And Overheating
  • Place of Origin
    Shenzhen China
  • Brand Name
    CONSNANT
  • Certification
    ISO CE
  • Model Number
    50A - 300A
  • Minimum Order Quantity
    10
  • Packaging Details
    export standard carton box
  • Payment Terms
    L/C, T/T, Western Union

LCD Monitoring Panel APF Accusine Active Harmonic Filter , Industry Grade Electrical Harmonics Filters

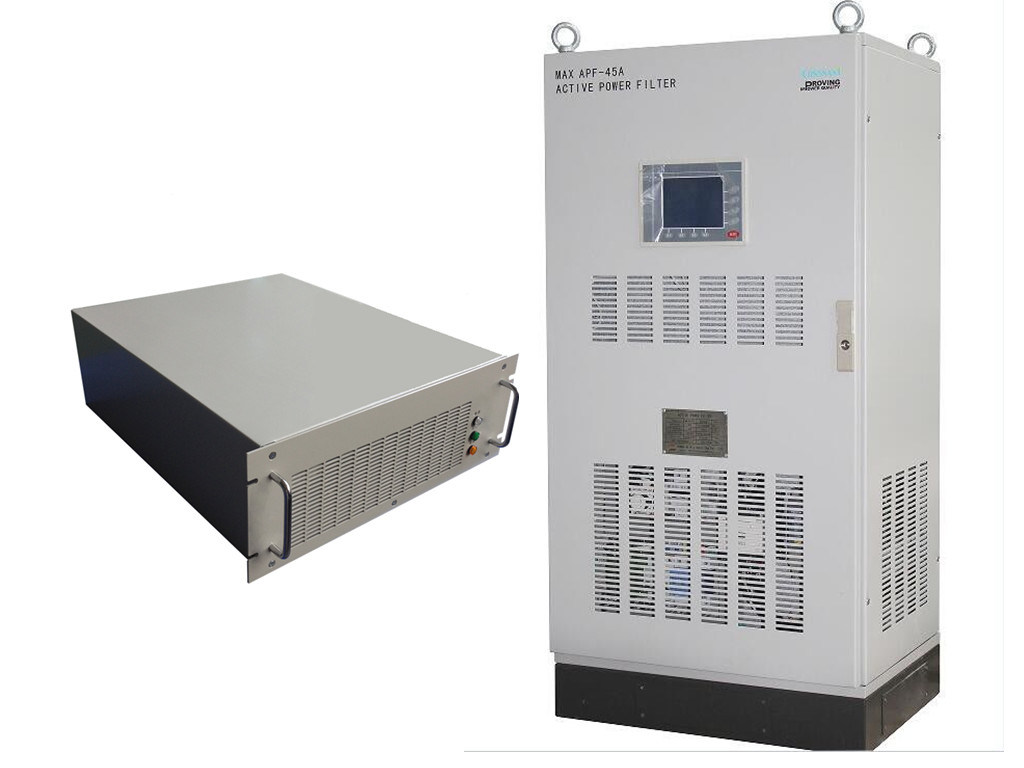

LCD Monitoring Panel APF Active Power Filter With Industry Grade Stability





Quick details:


AC Input
Rated voltage:  380×(1±15%)V
Rated Frequency:  50×(1±1%)Hz
Rated topology:  Three-phase three-wire



Key Features:



APF (Active Power Filte)is with neutral current first compensating, simultaneous compensation of Harmonic and reactive power, order of harmonic selectable compensating, system parameter settings online, RS485 standard, Modbus RTU communication protocol,  Expansion Ability ( directly connect in parallel with the same model machine), complete protectiopn ( Grid over-voltage, Grid under-voltage, Grids missing phase, Grid wrong phase, the Machine over current and overheating)



Technical Specification:





Output current capacity(A) 45 75 100 150 200

Technical
Indexes



orders of harmonic compensating

Within 5~13: selectable

Or within 5~25: all compensation

Compensating rate (THDILoad-THDIS)/ THDILoad ≥85%
Reactive power compensating

Determined by priority



Full response time ≤20ms
Overload Protection Automatically limited to the rated output current
Active power loss <5%Rated capacity
Noise <65dB

Environment

&
Conditions

Operating temperature -10OC~+45OC
Storing Temperature -20OC~+65OC
Relative humidity <90%(25OC)
Working Mode Automatically or manually
Communication Interface RS485 PC interface, remote control function
Operation Display LCD monitoring panel; parameters setting online; touchable button operation; multi-parameter display
Display Accuracy ±2%FS
Protection level IP20
dimension mm(W×H×D) 600×1200×400 600×2200×600 800×2200×600
Non-standard sizes can be customized
Weight(kg) 150 200 400
