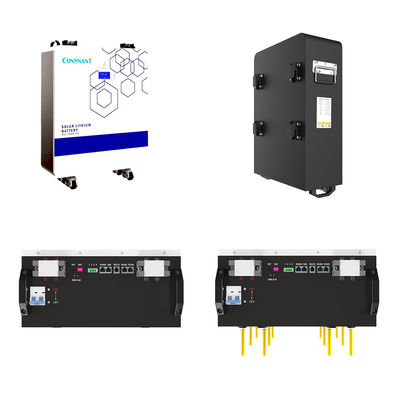

DOD RS485 Lithium Iron Battery Pack  200Ah Power Backup Pack

DOD RS485 Lithium Iron Battery Pack 200Ah Power Backup Pack

  • High Light

    DOD Lithium Iron Battery Pack

    ,

    RS485 Lithium Iron Battery Pack

    ,

    200Ah Power Backup Pack

  • Operating Voltage Range
    37.5V~54.75V
  • Communication Mode
    RS485
  • Weight
    110kg
  • Size
    (W575×H764×D190mm )±5mm
  • Color
    Depending
  • Name
    Lithium Iron Battery Pack
  • Place of Origin
    Shenzhen,China
  • Brand Name
    CONSNANT
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
    CNHD-48V200Ah-15S
  • Minimum Order Quantity
    2 Unit
  • Price
    Negotiable
  • Packaging Details
    Export Standard Package
  • Delivery Time
    20 days after receving 30% deposid
  • Payment Terms
    L/C, T/T, , MoneyGram
  • Supply Ability
    500 set per month

DOD RS485 Lithium Iron Battery Pack 200Ah Power Backup Pack

48V 200Ah Power Lithium Iron Battery



Description:



       This product is a new type of backup power supply for the development of high-tech products,

with integration, miniaturization, light, intelligent, standardized, environmental protection and

other characteristics, can be widely used in indoor distribution stations, integrated base stations,

marginal stations, distributed power supply and other fields.



Feature:



      1. Standard design, low operating environment requirements (can be in -20 ~ 60℃ humidity < 95%

         normal work), small size, light weight, easy installation, simple maintenance in the later stage,

         can save considerable upfront investment and maintenance costs in the later stage.



     2. Automatic charge and discharge management. The monitoring unit automatically measures the

        charge and discharge current of the battery and manages the floating charge and even charge

        of the battery;



     3. When the battery voltage is lower than the alarm value, it will alarm, and when the voltage is too

       low, it will automatically power down to protect the battery.







Reference:



NO. Item Specification

1

Nominal Capacity 200Ah
2 Watt Hour 9600Wh
3 Standard charging/discharging method 50A
4 Maximum continuous charging/discharging current 100A
5 Cycle Life ≥3000 cycles (0.5C charge ,0.5C discharge)80% DOD;±25℃
6 Operating Temperature -20℃-60℃
7 Storage Temperature -20℃~50℃
8 Shipment voltage ≥48V
9 Designed life 10 YEARS
10 Guarantee period 3 YEARS





Pre-sale testing:

NO. Item Testing Instruction Requirement
1 Vibration Test

Battery will be vibrated 30 minutes in three mutually perpendicular directions and changing frequency between 10 to 55Hz. The rate of scanning frequency is from 10 Hz to 55Hz with the rate of 1Hz per min.

Vibration frequency:10-30Hz Amplitude:0.38mm Vibration frequency:30-55Hz: amplitude:0.19mm

The battery shall not rupture, smoke, explode or leak. Battery electric voltage ≥48V.
2

Constant Temperature/

Humidity Test

Keep the battery at 40±2℃ and 90%-95%RH for 48 hrs after complete charge.

After the test, keep the battery at 20±5℃ for 2 hrs. Discharge at 10A constant current discharge to the termination voltage.

Appearance of the battery shall not rust, smoke or explode. Discharge Capacity ≥80%
3 High Temperature Performance Test Keep the battery at a hot oven with 55±2℃ for 2 hrs, then measure the capacity with constant discharge current 0.5C to discharge protection point after complete charge. After the test, keep the battery at 20±5℃ for 2 hrs. Appearance of the battery shall not rust smoke or explode. Discharge
Capacity >90%.
4 Low Temperature Performance Test

Keep the battery at -20±2℃ for 16-24 hrs, then measure the capacity with constant discharge

current 0.5C to discharge protection point after

complete charge. After the test, keep the battery at
20±5℃ for 2 hrs.

Appearance of the battery shall not rust, smoke or explode. Discharge
Capacity >55%.





DOD RS485 Lithium Iron Battery Pack  200Ah Power Backup Pack 0





Shipment packaging:



DOD RS485 Lithium Iron Battery Pack  200Ah Power Backup Pack 1





Storage conditions:



    1.When the battery pack to be long-term stored, charge the battery pack to about 60%​ capacity,

        store in dry and ventilated place, charge 1h for every 3 months.



    2.The battery pack and charger should be stored in clean, dry and ventilated place, avoid contacting

       with corrosive materials and be away from fire and heat.
