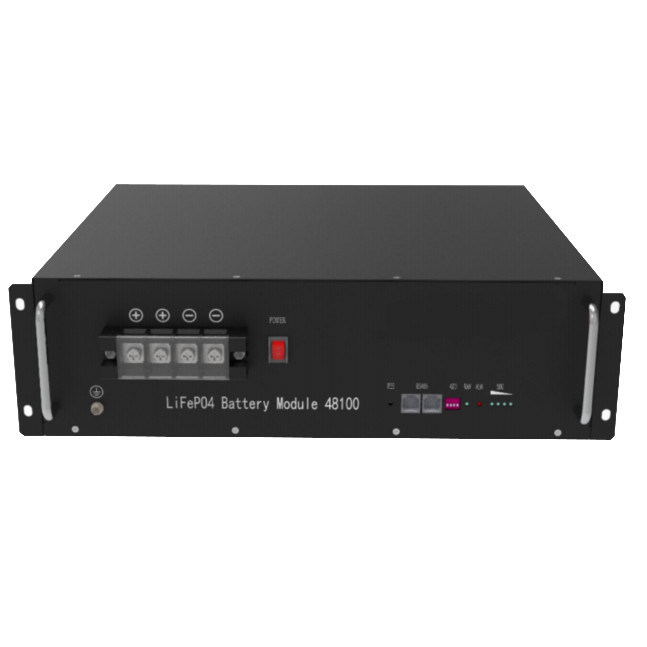

BMS 100Ah Lithium Iron Battery Pack RS485 5120Wh Rechargeble

BMS 100Ah Lithium Iron Battery Pack RS485 5120Wh Rechargeble

  • High Light

    BMS Lithium Iron Battery Pack


    100Ah Lithium Iron Battery Pack


    RS485 Rechargeble Battery Pack

  • Color
  • Nominal Capacity
  • Nominal Voltage
  • Communication Mode
  • Weight
  • Size
    (W444×L430×H132mm )±2mm
  • Designed Life
    15-18 Years
  • Guarantee Period
    5 Years
  • Place of Origin
    ShenZhen, China
  • Brand Name
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
  • Minimum Order Quantity
    2 Unit
  • Price
  • Packaging Details
    Export Standard Package
  • Delivery Time
    20 days after receving 30% deposid
  • Payment Terms
    L/C, T/T, MoneyGram
  • Supply Ability
    500 set per month

BMS 100Ah Lithium Iron Battery Pack RS485 5120Wh Rechargeble

100Ah(16S) Lithium-Ion Battery Pack
Description and Model:
     This product is a new type of backup power supply for the development of high-tech products,
can be widely used in indoor distribution stations, integrated base stations, marginal stations, ETC,
distributed power supply and other fields.
     Adopted by the high safety performance, lithium battery cathode material for lithium iron phosphate,

high safety, high stability, high cycle life, high specific energy, specific power, low temperature performance
is superior, but large current charge and discharge.
     The battery management system (BMS), with the charge, over discharge, short circuit, over-current (load),
temperature, flow, total pressure protection,charging under the secondary electricity, balanced and various
protective functions, providing the bluetooth , CAN ,RS485 communication interface and the upper machine
to realize remote monitoring, can be connected to the base station power environmental monitoring systems,
Intelligent software anti-theft design.
    Standard design, suitable for installation in 19-inch standard cabinet, low operating environment requirements

(can be in -20 ~ 60℃, humidity < 95% normal work), small size light weight, easy installation, simple maintenance
in the later stage, can save considerable upfront investment and maintenance costs in the later stage.Ensure the
life of lithium battery and reduce the daily maintenance work.
Manufacturing standard reference:

  • YDB032-2009 communication backup type lithium ion battery pack;
  • YDT - 2011-2344.1 the communication lithium iron phosphate battery part 1: integrated battery;
  • "YDT, 1051-2010" communication board (stand) power system total technical requirements ";
  • YDT - 2005-1363.3 the communication board (station) power supply, air conditioning and environment centralized monitoring management system "of the relevant standards.

Key features:
1. Lithium ferrous phosphate battery(LiFePO4), high safety, high energy density, excellent cycling
2. BMS, battery management system, with the intelligent positive protection functions;
3. Automatic charge and discharge management;
4. Alarm function, when the battery voltage is lower than the alarm value or too low, it will automatically
power down to protect the battery;
5. The battery pack has good electromagnetic compatibility.
Basic Characteristics Reference:

1Watt Hour5120Wh
2Operating voltage range40V~58.4V
3Standard charging/discharging method50A
4Maximum continuous charging/discharging current100A
5Cycle Life≥3000 cycles (0.5C charge , 0.5C discharge) 80%DOD
6Operating Temperature-20℃-60℃
7Storage Temperature-20℃~50℃
8Shipment voltage≥48V
9Charge retention and capacity recovery capabilityStandard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate ≥90%, Recovery rate of charge≥90

Safe Characteristic:

No.ItemTesting instructionRequirement
1Over-charge testCharge in accordance with the following two ways (Choosing one between the two).
(1)Charge at 1C current for 90min or until voltage of some single battery reaches 5.0V (stop test when fulfills either condition).
(2)Charge at 3C current until the voltage of some single battery reaches 10.0V, then stop the test.
The battery shall not explode or catch fire.
2Over-discharge testCharge the battery. Place at 20±5℃ for 1h, then discharge in 1/3C current at same temperature until so cell’s voltage is 0V.The battery shall not explode or catch fire.
3Short-circuiting TestAfter charge batteries, place at 20±5℃ for 1h. Short the battery for 10min, the external circuit resistance should be less than 5mΩ.The battery shall not explode or catch fire.

Safety characteristics test no electronic protection circuit;
86Kpa-106Kpa ;Above technical performance standard test environment temperature: 20±5℃;
Relative humidity: 65 ± 20% (unless otherwise requested), Atmospheric pressure: 86Kpa-106Kpa.
Shipment package:
No fall down, no pile up over 8 layers, and keep face up.
BMS 100Ah Lithium Iron Battery Pack RS485 5120Wh Rechargeble 0
Storage conditions:

  • When the battery pack to be long-term stored, charge the battery pack to about 60% capacity,store in dry and

ventilated place, charge 1h for every 3 months.

  • The battery pack and charger should be stored in clean, dry and ventilated place, avoid contacting with corrosive

materials and be away from fire and heat.
