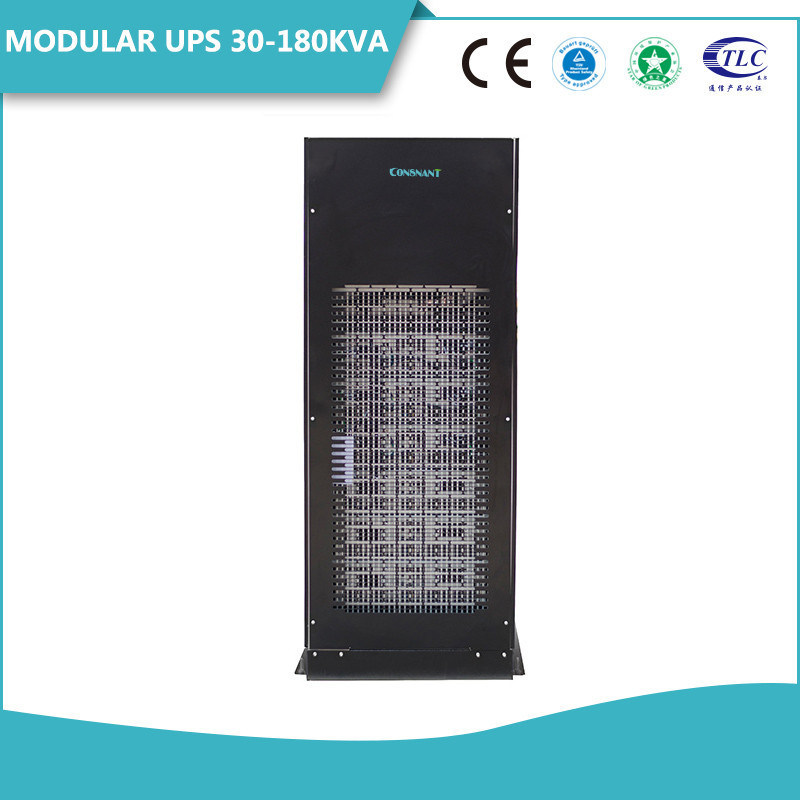

Self - Diagnosis Modular UPS System Unbalance Load With Comprehensive Protection

Self - Diagnosis Modular UPS System Unbalance Load With Comprehensive Protection

  • High Light

    redundant ups power supply

    ,

    commercial ups battery backup

  • Online Hot Swappable
    Yes
  • Protection
    Unbalance Load
  • Back Up Type
    Long-acting Machine
  • Overload Capacity
    Long Term At 135% Rated Load ,150%1000% 100ms
  • Maintenance
    Full Front Access, UPS, Failed Part Can Be Replaced Shortly
  • Display Language
    12 Language (Chinese ,English ,Russian, French ,Spanish And So On).
  • Place of Origin
    Shenzhen, China
  • Brand Name
    CONSNANT
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
    CNM330
  • Minimum Order Quantity
    1 Unit
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    20days after receiving 30% deposit
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    500 pieces per month

Self - Diagnosis Modular UPS System Unbalance Load With Comprehensive Protection

Self-Diagnosis Advanced Modular UPS System With Comprehensive Protection



Brief Information:




CNM330 series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 10KVA to 300KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, CNM330 achieves a high input power factor, low THDi Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size


Excellent Self-Diagnosis Performance:



  • Monitor inverter, rectifier
  • Monitor inverter fuse
  • Monitor battery
  • Monitor magnetic’s temperature
  • Monitor every fan failure
  • Monitor every switch status


Application:

  • Application IDC(Internet Data Center)
  • Computing center
  • ISP (Internet Service Provider )
  • Telecom , Finance, bank and securities , Tax
  • Hospital system , industrial automation
  • Precision equipment, etc.




Technical Specifications:





Model CNM330 20-300KVA
Capacity 20-300KVA
Main Input
Input Voltage 380V/400V/415V
Input Frequency Range 50/60Hz
Power Factor Full load>0.99 ,Half load >0.98
THDi THDi<3%
Input Power Soft-start Function 5-30s settable
Input Voltage Ranges 228V-476V;-20%~25% at Full load ; linear derating at -25% ~- 40%; can take 70% load at -40%
Frequency Range 40-70HZ
Battery
Battery Voltage ±240VDC(Default),12V Battery 30~40pcs can be choose
Charge Voltage Accuracy ±1%







Bypass
Bypass Input Voltage 380/400/415VAC 3-phase 4-wire
Voltage Range Default value is -20%~+15%; -40%, -30%, -10% ~ +10%, +15% , other ranges can be set via software
Overload Capacity

Long term at 135% rated load ,150%<load<180% more than 10 min,

load>1000% 100ms







Output
Inverter Output Voltage 380/400/415VAC 3-phase 4-wire
Voltage Accuracy ±0.5% ( balanced load ) , ±1% ( unbalanced load )
THDV THDV<1% (linear load) , THDV<3% (nonlinear load)
Power Factor 0.9
Three Phase Angle Accuracy 120°± 0.5°
Current Crest Ratio 3:1
Overload Capacity 110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time 0ms,15ms (Eco Mode)








System
Frequency 50Hz/60Hz (Settable)
Mains Synchronization Range ±2Hz(Default value), adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection Level IP20
Operation Temperature 0-40ºC
Storage Temperature -25ºC~70ºC ( without battery)
Humidity 0-95% (no-condensing)
Noise(dB) 55-62dB,Adjusted with load
Weight module:PM20 20KVA power module : 35KG
module:PM30 30KVA power module : 35KG
module:PM40 40KVA power module : 35KG
Dimension (W x D x H)mm 3 module cabinet 600X900X1135
5 module cabinet(5 battery cabinet option) 600X1100X2070/
6 module cabinet 600X900X1535
10 module cabinet 900X900X2080
power module 440X650X132(3U)(10KVA/20KVA/30KVA)


(Optional South America 208V must be derating use)
