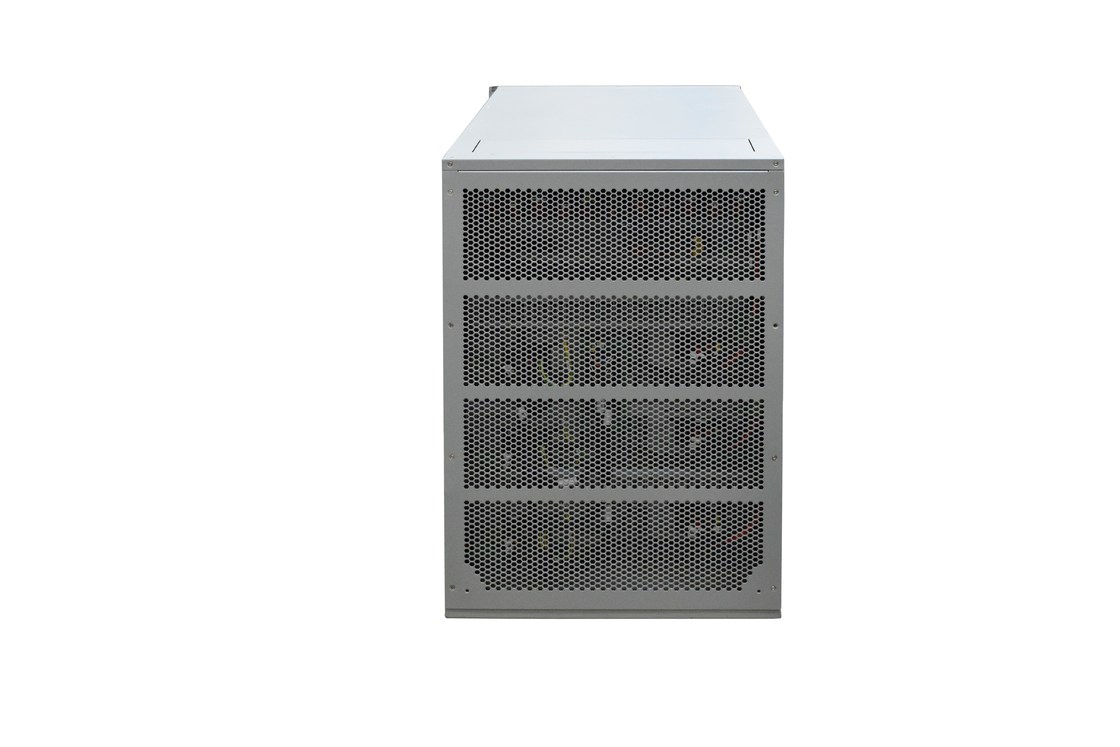

Embedded Three Phase UPS Modular UPS System For Data Centers 30KW - 90KW

Embedded Three Phase UPS Modular UPS System For Data Centers 30KW - 90KW

  • High Light

    IDC Modular UPS System

    ,

    Embedded Modular UPS System

    ,

    240V Three Phase UPS

  • Application
    IDC(Internet Data Center),computing Center,ISP(Internet Service Provider ),Telecom,
  • Type
    UPS
  • Phase
    3 Phase Input 3 Phase Output
  • Input Voltage
    380V/400V/415V
  • Frequency
    50Hz/60Hz(Settable)
  • Battery
    ±240VDC(Default),12V Battery 30~40pcs Can Be Choose
  • Bypass Input Voltage
    380/400/415VAC 3-phase 4-wire
  • Product Name
    Three Phase Ups Embedded Modular UPS For Data Centers 30KW - 90KW
  • Battery Type
    240V
  • Inverter Output Voltage
    380/400/415VAC 3-phase 4-wire
  • Power Factor
    Full Load>0.99,Halfload >0.98
  • Place of Origin
    MADE IN CHINA
  • Brand Name
    Modular UPS System
  • Certification
    CE
  • Model Number
    CNM330 - Modular UPS 30KW - 90KW
  • Price
    Negotiable
  • Packaging Details
    Export Standard Package
  • Payment Terms
    T/T

Embedded Three Phase UPS Modular UPS System For Data Centers 30KW - 90KW

Product Description:



Application:

IDC(Internet Data Center),computing center,ISP(Internet Service Provider ),Telecom,

Finance bank and securities,Tax,hospital system, industrial automation, precision equipment, etc.



CNM330 series is modular online UPS for sensitive equipments. The single cabinet power rating covers from 15KVA to 300KVA which delivers the best of combination of reliaability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, CNM330 achieves a high input power factor, low THDi Modular design with N+X redundancy and online hot swapping easy to expand the capacity Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size.



Working principle:

Modular UPS use double conversion on-line structure,including the rectifier, inverter, battery charger, control circuit, the input and output battery connector breaker. Have function that is input power factor compensation. All modules can be online hot-swappable, provide the highest level of availability, and maintainability.

If one power module failure will not affect the system normal working, power module can be online hot-swappable all power module parallel is managed by the control board, in accordance with the unified parameters running, one power module fault can be automatically exit parallel system, will not cause harm to the whole parallel system.

Modular UPS system use independent static bypass module,do not use multiple static bypass structure,avoid caused overload damage Modules because of multiple bypass module uneven current when UPS turn to bypass working.Themodule paralleloutput voltage accuracy is±1%,parallel circulation current<1%.

Static bypass module contains bypass static switch only, excluded static switch of the main circuit output; therefore, replacing static bypass module will not cause the system power down or transfer manual maintenance bypass,which can realize online hot-swap replacement.

Technical Specifications:

Model CNM330 15-1200KVA
Capacity 15-1200KVA
Main input
Input Voltage 380V/400V/415V
Input Frequency Range 50/60Hz
Power Factor Full load>0.99,Halfload >0.98
THDi THDj<3%
Input Power Soft-start Function 5-30s settable
Input Voltage Ranges 228V-476V;-20%~25% at Fullload;linear derating at-25%~-40%;can take 70% load at -40%
Frequency Range 40-70HZ
Battery
Battery Voltage ±240VDC(Default),12V Battery 30~40pcs can be choose
Charge Voltage accuracy ±1%
Bypass
Bypass Input Voltage 380/400/415VAC 3-phase 4-wire
Voltage Range Default value is-20%~+15%;-40%,-30%,-10%~+10%,+15%,other ranges can be set via software
Overload Capacity Long term at 135% rated load ,150%<load<180% more than 10 min,load>1000% 100ms
Output
Inverter Output Voltage 380/400/415VAC 3-phase 4-wire
Voltage Accuracy ±0.5%(balanced load),±1%(unbalanced load)
THDV THDV<1%(linearload),THDV<3%(nonlinear load)
Power Factor 0.9/1.0
Three Phase Angle accuracy 120°±0.5°
Current Crest Ratio 3:01
Overload Capacity 110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time 0ms,15ms (Eco Mode)
System
Frequency 50Hz/60Hz(Settable)
Mains synchronization range ±2Hz(Default value), adjustable with step of 0.5Hz within range of +/- 0.5Hz-3Hz
Protection Level IP20
Communication Ports RS232,RS485,dry contact, SNMP card, EPO,generator port
System efficiency >96% at load above 50%,>95% at load above 25%
Operation Temperature 0-40℃
Storage Temperature -25℃~70℃(without battery)
Humidity 0-95%(no-condensing)
Noise(dB) 55-62dB,Adjusted with load
Net Weight 15KVA power module:20KG 20KVA power module:20KG
30KVA power module:35KG 40KVA power module:35KG
Dimension(WxDxH)mm 3 module cabinet 600X900X1135
6 module cabinet 600X900X1535
10 module cabinet 600x900×2000/900X900X2000(with side cabinet)
power module 440X650X132(3U)-15KVA/20KVA/30KVA/40KVA
