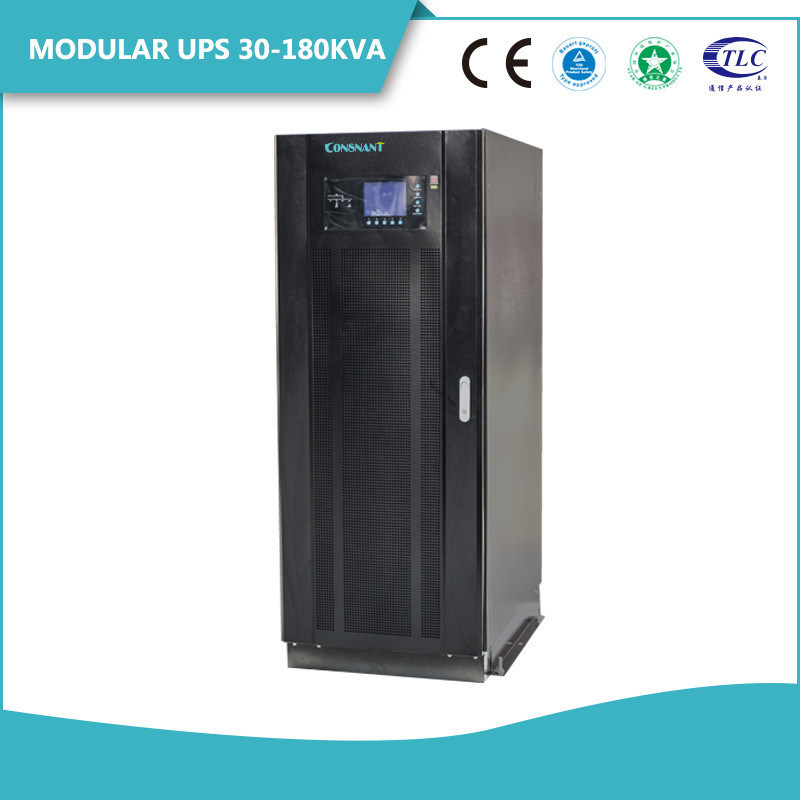

Modular Oline 3 Phase UPS System , Data Center Battery Backup System Low Audible Noise

Modular Oline 3 Phase UPS System , Data Center Battery Backup System Low Audible Noise

  • High Light

    commercial ups battery backup

    ,

    modular type ups

  • Phase
    Three
  • Protection
    Unbalanced Load
  • Backup Type
    Long Acting Machine
  • Overload Capacity
    Long Term At 135% Rated Load ,150%1000% 100ms
  • Inverter Output Voltage
    380/400/415VAC 3-phase 4-wire
  • Type
    Oline
  • Place of Origin
    Shenzhen,China
  • Brand Name
    CONSNANT
  • Certification
    CE,ISO9001,ISO14001
  • Model Number
    CNM330-30KVA
  • Minimum Order Quantity
    1 Unit
  • Price
    Negotiable
  • Packaging Details
    Export standard package
  • Delivery Time
    20 days after receiving 30% deposit
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    200 pieces per month

Modular Oline 3 Phase UPS System , Data Center Battery Backup System Low Audible Noise

30KVA to 300KVA Low Audible Noise Modular UPS System For Unbalancing Load





Brief Information:




CNM330 series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 10KVA to 300KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, CNM330 achieves a high input power factor, low THDi Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size




Main Characteristics



  • Single system maximum power 300KVA
  • Power module 10-30KW, parallel system provide maximum 4pcs ups operating
  • High efficiency , >95% when load higher than 30%, Maximum efficiency up to 96%
  • High power density,Even for power module, 30KW in 3U height, Power module size, 440×132(3U)×650 ).
  • Low cost , 20-30% cost lower than other company’s product.
  • Support module parallel and hot- swap, good performance for enlarge capacity in field and manufactory, maintenance;
  • High output power factor is 1 for example(150KVA=150KW),high ability for output load.
  • Rectifier and inverter using Three level technology, enhance the efficiency.
  • Using high reliability monitor platform, enhance monitor processing ability, One monitor monitoring and communication with 5 power module and 1 bypass module at the same time.
  • Battery sharing technology in the same cabinet





Our Service:





1. 2% spares together with shipment for urgent issue.

2. All of the necessary documents such as drawing, manual etc.

3. We will provide the online service by mail

4. We can despatch engineer to assist you solve the problem if necessary (But you are requested to pay for the cost of ticket, hotel etc. ). you can despatch engineer(s) to our company to get training.

5. One year warranty



Technical Specifications:





Model CNM330 20-300KVA
Capacity 20-300KVA
Main Input
Input Voltage 380V/400V/415V
Input Frequency Range 50/60Hz
Power Factor Full load>0.99 ,Half load >0.98
THDi THDi<3%
Input Power Soft-start Function 5-30s settable
Input Voltage Ranges 228V-476V;-20%~25% at Full load ; linear derating at -25% ~- 40%; can take 70% load at -40%
Frequency Range 40-70HZ
Battery
Battery Voltage ±240VDC(Default),12V Battery 30~40pcs can be choose
Charge Voltage Accuracy ±1%







Bypass
Bypass Input Voltage 380/400/415VAC 3-phase 4-wire
Voltage Range Default value is -20%~+15%; -40%, -30%, -10% ~ +10%, +15% , other ranges can be set via software
Overload Capacity

Long term at 135% rated load ,150%<load<180% more than 10 min,

load>1000% 100ms







Output
Inverter Output Voltage 380/400/415VAC 3-phase 4-wire
Voltage Accuracy ±0.5% ( balanced load ) , ±1% ( unbalanced load )
THDV THDV<1% (linear load) , THDV<3% (nonlinear load)
Power Factor 0.9
Three Phase Angle Accuracy 120°± 0.5°
Current Crest Ratio 3:1
Overload Capacity 110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time 0ms,15ms (Eco Mode)








System
Frequency 50Hz/60Hz (Settable)
Mains Synchronization Range ±2Hz(Default value), adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection Level IP20
Operation Temperature 0-40ºC
Storage Temperature -25ºC~70ºC ( without battery)
Humidity 0-95% (no-condensing)
Noise(dB) 55-62dB,Adjusted with load
Weight module:PM20 20KVA power module : 35KG
module:PM30 30KVA power module : 35KG
module:PM40 40KVA power module : 35KG
Dimension (W x D x H)mm 3 module cabinet 600X900X1135
5 module cabinet(5 battery cabinet option) 600X1100X2070/
6 module cabinet 600X900X1535
10 module cabinet 900X900X2080
power module 440X650X132(3U)(10KVA/20KVA/30KVA)


(Optional South America 208V must be derating use)
