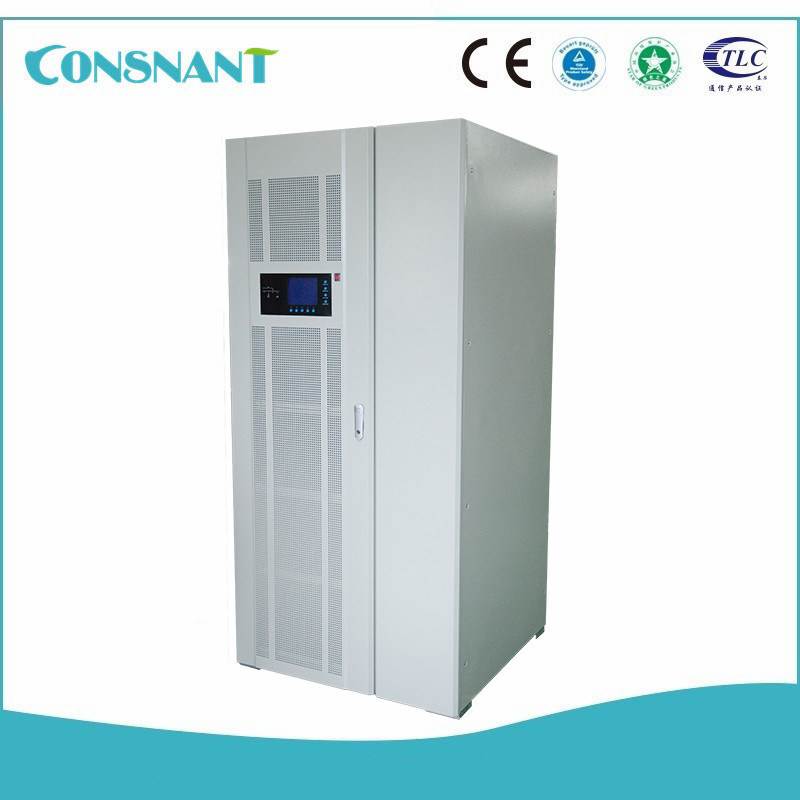

Modular Power UPS System 300KVA Large Data Record High Efficiency Easy Maintenance Pure Sine Wave

Modular Power UPS System 300KVA Large Data Record High Efficiency Easy Maintenance Pure Sine Wave

  • High Light

    commercial ups battery backup

    ,

    modular type ups

  • Input Voltage
    380V/400V/415V (South American 208V Option ,derating Use)
  • Power Factor
    Full Load >0.99 Half Load>0.98
  • Output Voltage
    380/400V415VAC 3-phase 4-wire
  • Power Factor
    0.9 / 1
  • Place of Origin
    Shenzhen,China
  • Brand Name
    CONSNANT
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
    CNM330-300K
  • Minimum Order Quantity
    1 Unit
  • Price
    Negotiable
  • Packaging Details
    Wooden case
  • Delivery Time
    20 days after receiving 30%deposit
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    2000 pieces per year

Modular Power UPS System 300KVA Large Data Record High Efficiency Easy Maintenance Pure Sine Wave

Large Data Record Power Modular UPS System With Easy Maintenance 300KVA





Brief Information:




CNM330 series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 10KVA to 300KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, CNM330 achieves a high input power factor, low THDi Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size



Application:


Application IDC(Internet Data Center)

Computing center

ISP (Internet Service Provider )

Telecom , Finance, bank and securities , Tax

Hospital system , industrial automation

Precision equipment, etc.





Good Advantages:



  1. Hot-swappable, front access, small footprint
  2. High efficiency, wide input voltage range, high power density, low input THDI and unity PF
  3. Pure sine wave output voltage, high EMC performance
  4. Display language variety
  5. High overload capacity, battery recharge faster, self-Diagnosis, auto-calibration by Parametric set software, battery sharing, intelligent battery management, self aging
  6. Low audible noise, record data before failure, download history log in a easily readable






model CNM330
Input voltage 380V/400V/415V (South American 208V option ,derating use)
Input Frequency 50/60HZ
THDI THDI<3%
Power Factor Full load >0.99 half load>0.98
Battery voltage ±240VDC(default) 12V battery 30-40PCS can be choose
Bypass overload capacity

Long term at 135% rated load, 150%<load<180% 10min ,

Load>1000% 100ms

Output voltage 380/400V415VAC 3-phase 4-wire
Voltage Accuracy ±0.5% (balanced load) ±1% (unbalanced load)
Power factor 0.9 / 1
Overload capacity 110% 1H , 125% 10mins , 150% 1min , >150% 200ms
Communication ports RS232 , RS458 , Dry contact , SNMP card , EPO , generator port
System efficiency >96% at load above 50% , >95% at load above 25%

(Optional South America 208V must be derating use)
