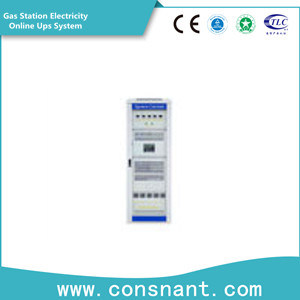

Gas Station Electricity Online Ups System , 30 KVA Uninterruptible Power System

Gas Station Electricity Online Ups System , 30 KVA Uninterruptible Power System

  • High Light

    solar panel regulator charge controller


    solar panel battery charger controller

  • Efficiency
    Double Conversion: 94%, ECO:98%
  • Overload Capacity
    Normal In 110% Load, 125% For 10min
  • Soft Start
  • Display
  • Discharge Current
  • Phase
    10-20KVA: Single Phase; 20-100KVA: Three Phase
  • Place of Origin
    Shenzhen, China
  • Brand Name
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
  • Minimum Order Quantity
    1 Unit
  • Price
  • Packaging Details
    Export Standard Package
  • Delivery Time
    5-7 days for sample order, 7-15 days for mass production
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    50000 pieces per year

Gas Station Electricity Online Ups System , 30 KVA Uninterruptible Power System

Electricity UPS System Special Cabinet Electricity UPS 10-100KVA
Key features:

  1. Adopt full digital control technology
  2. Intelligent detection and monitoring function
  3. Digitally control the static switch with zero switch
  4. Full isolation between input and output
  5. Super low output zero earth voltage
  6. DC UPS isolated with utility power completely
  7. Cubical design with power standard (customization)
  8. Multifunctional protection for overvoltage, under voltage, over current, short circuit and over temperature and so on.
  9. Large-screen LCD monitor with Chinese and English operation interface
  10. Ultralong 256 event record, user-friendly analysis and management to the situation of the power supply (touch screen optional)
  11. Static bypass has a strong anti-overload capability

Petroleum, chemical industry, gas and power station and so on.
Control system:
It adopts microprocessor bus control technology, three core processor controlling rectification, inversion and parallel connection respectively, to ensure the real-time control of the rectifier, inverter and static switch and the coordination of every power part, characterized by increased control of aging, higher reliability, enhance of the efficiency of the whole UPS system and the output technical parameters are better than that of the device with same capacity.
6 pulse or 12 pulse fully controlled bridge (6 or 12 SCR) compose rectifier. Its function is to input AC 3880V to DC220V or so by rectification. “slope” start (soft start) is the control feature, which means output voltage of the rectifier increase from 0V to 220V within 10 second and has no impact on the power grid.
SPWM(sinusoidal pulse width modulation) , formed by 6 IBGT high power tubes, is composed of full-bridge-control.
Large Capacity of Overload of the UPS Inverter
110% load --60'
125% load --10'
150% load --1'
200% single phase load --30"
Good Capacity of Resistance to Output Short Circuit Current Limiting and Period Load Impact
Static switch:

  • Not sync automatically switch
  • Optional bypass cabinet: Isolating transformer and the bypass voltage regulation
  • Intelligent monitoring:Working status and data of UPS are transmitted to DCS system in real-time via RS232/RS485, passive contact and power transmitter, which finally realize Intelligent monitoring.

Unique option:

  • SNMP card
  • Dry contact card
  • Signal transmitter
  • Bypass isolation and voltage regulation
  • Increase feeder circuit (standard for 8 loops)
  • 12 pulse rectifier
  • The appearance of special models(standard dimension:800×600×2260mm)

Our Service:

  1. 2% spares together with shipment for urgent issue.
  2. All of the necessary documents such as drawing, manual etc.
  3. We will provide the online service by mail
  4. We can despatch engineer to assist you solve the problem if necessary (But you are requested to pay for the cost of ticket, hotel etc. ). you can despatch engineer(s) to our company to get training.
  5. One year warranty



Technical Specification:


CND310 10KVA-100KVA
Model (KVA)1015203040506080100
Rating capacity(KW)81216243240486480
Rating voltage220V(one-phase) /380V(three phase)
AC input
Voltage range±25%
Frequency range50,60Hz±10%
Soft start0-100% in 5”
Power factor0.95(with input filter)
Bypass input
Permitted voltage range±15%
Frequency range50/60Hz±5%
Voltage accuracy220V±1%(steady load) 220V±3%( fluctuating load)
Permitted Frequency range50/60Hz±0.05Hz(powered by battery)
Power factor0.8
THDLinearload<2%, non linear load<4%
Dynamic transients<5%
Current crest ratio3:1
Overload capacityNormal in 110% load, 125% for 10min
EfficiencyDouble switch:94%, ECO:98%
Battery voltage220V
Cutoff voltage185V
Maximum discharge current36A55A73A109A145A181A218A291A364A
Penal display
LCDChinese/English UPS status, operation instruction input voltage, output voltage, current, frequency, battery voltage, value of charge and discharge current, accident display, warning
Temperature0ºC-40 ºC
Humidity0-95%(no condensing)
Storage temperature-25 ºC—55 ºC

Package and delivery
