1K-5KVA Double Conversion Ups With Lithium Battery 127Vac

C1-5kVA LV(110V)ONLINE UPS Datasheet

           Feature:



Zero Transfer time



True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.



DSP Digital Control Based



Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply



Ultra Wide Input Mains range



Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 60V~145V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life



Best Loading Capability



Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application



Genset Compatible



Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.



High Input power factor



Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer



Reliable design



Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion.



Open to customization



Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system









          Specification:



Model C1K-LV C1KS-LV C2K-LV C2KS-LV C3K-LV C3KS-LV C5K-LV C5KS-LV
Capacity VA/W 1kVA/800W 2kVA/1.6kW 3kVA/2.4kW 5kVA/5.4kW
Topology Double Conversion Online UPS
Phase Single Phase Input Single Phase Output

AC

Mains Input

Wiring 1 phase 3wires ( L / N+PE)
Rated Voltage 110/115/120/127Vac
Voltage Range Line-Neutral: 55~145VAC
Frequency Range 40Hz-70Hz
Input Power Factor ≥0.99
AC Output Wiring 1 phase L/N+PE
Output Voltage 110/115/120/127VAC
Voltage Regulation ±2%
Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform Pure Sine Wave

Distortion

(THDV%)

<2%(Linear Load)
<7%(None-Linear Load)
Over load capability

1Min@105%~125%Rated Load

30Sec.@125%~150%Rated Load

0.5Sec.@>150%Rated Load

10min@105%~125%

60s@125%~150%

0.5S@>150%

Efficiency AC/AC Mode 88% 89% 90% 92%
DC/AC Mode 85% 86% 87% 90%

Battery

&

Charger

Rated Battery Voltage

24VDC

Internal

36VDC

External

48VDC

Internal

72VDC

External

72VDC

Internal

96VDC

External

144VDC

Internal

192VDC

External

Battery Capacity

12V/7AH

x2pcs

External Battery Depends

12V/7AH

X4pcs

External Battery Depends

12V/7AH

X6pcs

External Battery Depends

12V/7AH

X12pcs

External Battery Depends
Backup Time >6mins @ Half Load >6mins @ Half Load >6mins @ Half Load >6mins @ Half Load
Charging Current

standard Model with Internal Battery:1A

Long Backup Time Model :4A

Physical Chassis Style RACK / Tower (separated)

Tower Dimension

W x H x D (mm)

1KS: 145 x 220 x 250

1K, 2KS: 145 x 220 x 318

2K:145 x 220 x 390

3K/3KS: 190 x 318 x 368

C5KS-LV

190 x 360x 528

Rack Dimension

3KR/5KRS: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery

1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D)

Weight (kg) 8.9 4.2 14 5.9 21.6 8.3 37 16
HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status

Standards

COMMUNICATION

1. RS232 PORT

2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown

Optional Extension Card

CMC MODBUS Card, USB Card, Relay Card

(Needs assembly according to order request before shipping)

Operating Environment

Endurance

Temperature range -10~50oC
Relative Humidity 0-98%(Non-condensing)
Acoustics Noise <55dB @ 1 meters



UPS Outlook



Front View

1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 0               1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 1

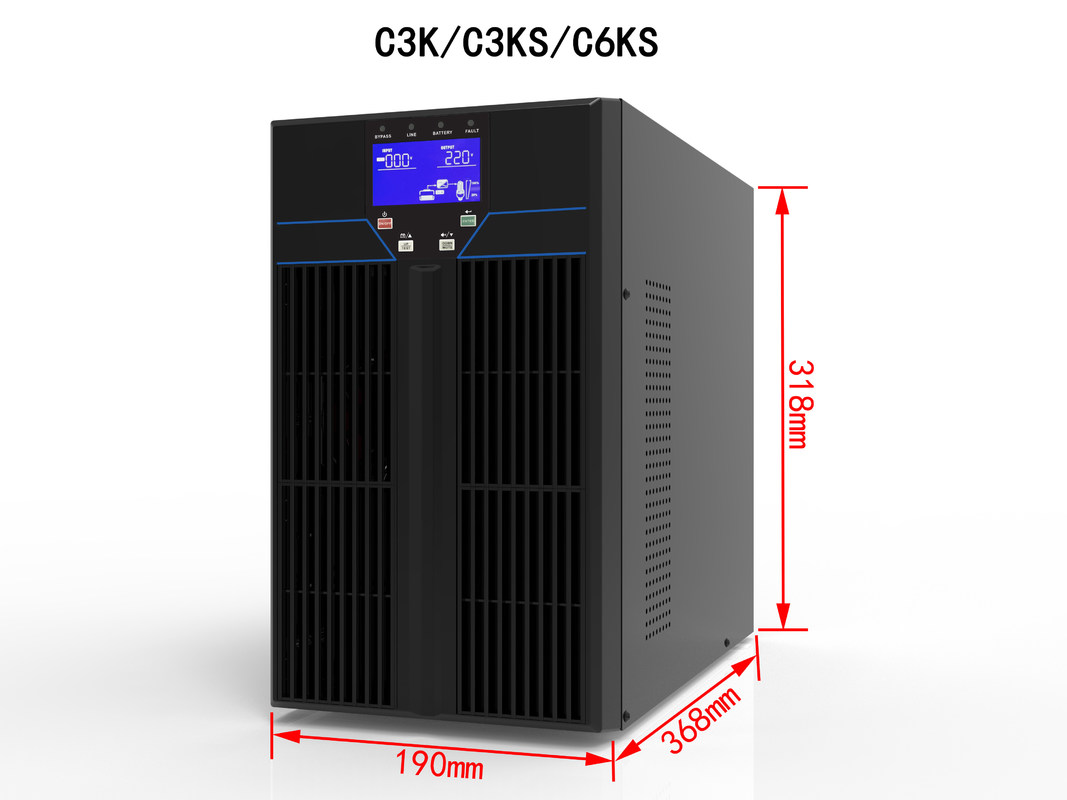

C1K(S)/2K(S) Bezel with 2 Button        C3K(S)/5K(S) Bezel with 2 Button

1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 2             1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 3

                                                    C1K(S)/2K(S) Bezel with 4 Button             C3K(S)/5K(S) Bezel with 4 Button





1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 4



C1KR(S) 1U Rack UPS



1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 5



C1KR(S)~C10KR(S) 2U Rack UPS



Rear Panel

                                                                            1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 6  1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 7



                                                                       C1K(S)/2K(S)-LV Rear Panel                C3K(S) -LV Rear Panel







1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 8



C5K (S)-LV Rear



1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 9



C1KR 1U RACK UPS Rear Panel





1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 10



C1KRS 1U RACK UPS Rear Panel





1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 11

C1/2KR(S) 2U RACK UPS Rear Panel





1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 12

C3KR(S)2U RACK UPS Rear Panel



NOTE:

① Battery Capacity and voltage is open to customization

② Dimension might vary for different bezel

③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order

④ More parameter customization,please contact sales representative





Packing



1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 13

Certification

1K-5KVA Double Conversion Ups With Lithium Battery 127Vac 14
