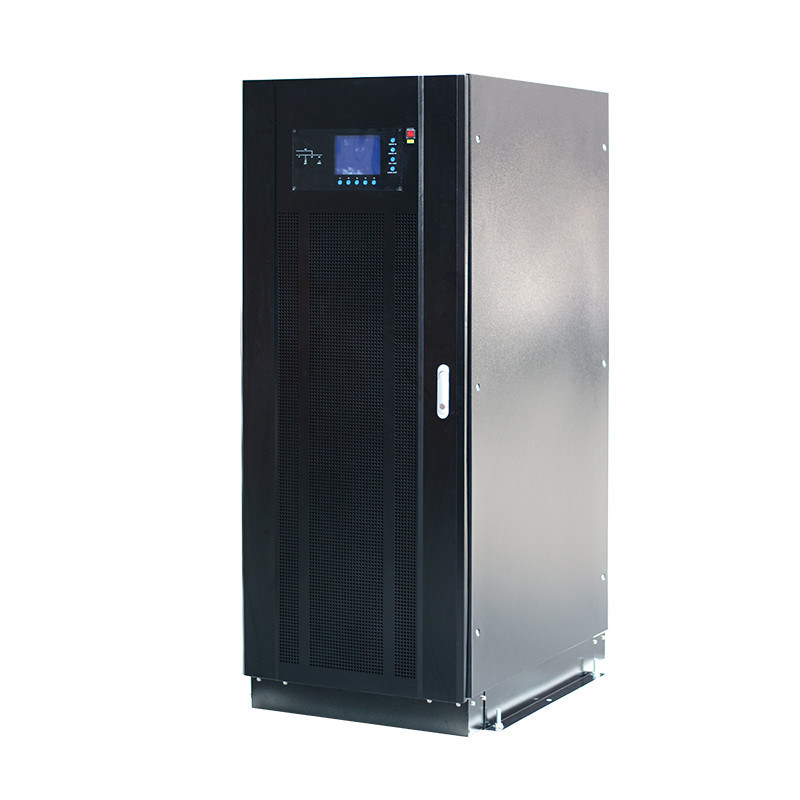

90KVA Online Modular UPS Precision Equipment 3 Phase Battery Backup , High Stability 30 Kva Ups System

90KVA Online Modular UPS Precision Equipment 3 Phase Battery Backup , High Stability 30 Kva Ups System

  • High Light

    commercial ups battery backup

    ,

    modular type ups

  • Power Factor
    0.99
  • System Efficiency
    >96% At Load Above 50%, >95% At Load Above 25%
  • Protection Level
    IP20
  • Input Voltage Ranges
    228V-476V;-20%~25% At Full Load ; Linear Derating At -25% ~- 40%; Can Take 70% Load At -40%
  • Communication Ports
    RS232,RS485,dry Contact, SNMP Card, EPO, Generator Port
  • Power Module
    20/30/40KW Per One
  • Place of Origin
    Shenzhen, China
  • Brand Name
    CONSNANT
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
    CNM330-90K
  • Minimum Order Quantity
    1 Unit
  • Price
    Negotiable
  • Packaging Details
    Export Standard Wooden Case
  • Delivery Time
    10 days after receiving 30% deposit
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    500 pieces per month

90KVA Online Modular UPS Precision Equipment 3 Phase Battery Backup , High Stability 30 Kva Ups System


Precision Equipment Modular UPS System High Stability Three Phase 30 - 300KVA



Description:
CNM330 series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 10KVA to 300KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, CNM330 achieves a high input power factor, low THDi Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size
Application:
Application IDC(Internet Data Center)
Computing center
ISP (Internet Service Provider )
Telecom , Finance, bank and securities , Tax
Hospital system , industrial automation
Precision equipment, etc.

Working principle:

Modular UPS use double conversion on-line structure, including the rectifier, inverter, battery charger, control circuit, the input and output battery connector breaker. Have function that is input power factor compensation. All modules can be online hot-swappable, provide the highest level of availability, and maintainability.
If one power module failure will not affect the system normal working, power module can be online hot-swappable all power module parallel is managed by the control board, in accordance with the unified parameters running, one power module fault can be automatically exit parallel system, will not cause harm to the whole parallel system.

Modular UPS system use independent static bypass module, do not use multiple static bypass structure, avoid caused overload damage modules because of multiple bypass module uneven current when UPS turn to bypass working. The module parallel output voltage accuracy is±1%, parallel circulation current< 1%.
Static bypass module contains bypass static switch only, excluded static switch of the main circuit output; therefore, replacing static bypass module will not cause the system power down or transfer manual maintenance bypass, which can realize online hot-swap replacement.

Rich Management Interface

Advanced battery management

  • All floating automatic conversion
  • Temperature compensation
  • Discharge to suspend automatic voltage regulation
  • Battery self-diagnosis and self-inspection
  • Battery capacity prediction
  • Discharge time estimates
  • Low voltage forecasting warning

Data recorder:

Every 10 ms records a core electrical data, and in Fault occurs, the freezing failure 1 to 1.5 before work. The core of the cycle frequency electrical data Accurately record the cause of failure, to help the accident diagnosis and accurate positioning Rapid diagnosis to improve maintainability, the data will be recorded before a failure or overload occur.


Advanced self-diagnosis:

  • Inverter and rectifier circuit working condition monitoring
  • Battery capacity and status detection
  • Equipment working environment temperature testing
  • Ease of maintenance and management of equipment
  • Can each fan of fault detection, and replace the fan without power


Technical Specifications:


ModelCNM330 20-300KVA
Capacity20-300KVA
Main Input
Input Voltage380V/400V/415V
Input Frequency Range50/60Hz
Power FactorFull load>0.99 ,Half load >0.98
THDiTHDi<3%
Input Power Soft-start Function5-30s settable
Input Voltage Ranges228V-476V;-20%~25% at Full load ; linear derating at -25% ~- 40%; can take 70% load at -40%
Frequency Range40-70HZ
Battery
Battery Voltage±240VDC(Default),12V Battery 30~40pcs can be choose
Charge Voltage Accuracy±1%
Bypass
Bypass Input Voltage380/400/415VAC 3-phase 4-wire
Voltage RangeDefault value is -20%~+15%; -40%, -30%, -10% ~ +10%, +15% , other ranges can be set via software
Overload Capacity

Long term at 135% rated load ,150%<load<180% more than 10 min,
load>1000% 100ms

Output
Inverter Output Voltage380/400/415VAC 3-phase 4-wire
Voltage Accuracy±0.5% ( balanced load ) , ±1% ( unbalanced load )
THDVTHDV<1% (linear load) , THDV<3% (nonlinear load)
Power Factor0.9
Three Phase Angle Accuracy120°± 0.5°
Current Crest Ratio3:1
Overload Capacity110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time0ms,15ms (Eco Mode)
System
Frequency50Hz/60Hz (Settable)
Mains Synchronization Range±2Hz(Default value), adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection LevelIP20
Operation Temperature0-40ºC
Storage Temperature-25ºC~70ºC ( without battery)
Humidity0-95% (no-condensing)
Noise(dB)55-62dB,Adjusted with load
Weightmodule:PM2020KVA power module : 35KG
module:PM3030KVA power module : 35KG
module:PM4040KVA power module : 35KG
Dimension (W x D x H)mm3 module cabinet600X900X1135
5 module cabinet(5 battery cabinet option)600X1100X2070/
6 module cabinet600X900X1535
10 module cabinet900X900X2080
power module440X650X132(3U)(10KVA/20KVA/30KVA)


(Optional South America 208V must be derating use)
