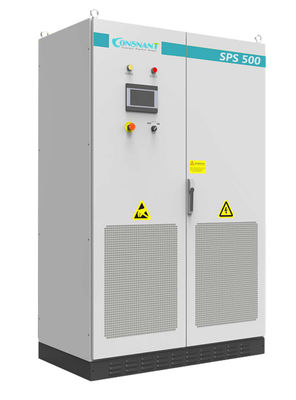

693kva 50-630KW Bidirectional Battery Inverter IP20 Solar Charger

Basic Information
Place of Origin: China
Brand Name: CONSNANT
Certification: CE,ISO9001/ISO14001
Model Number: Runner series
Minimum Order Quantity: 2Uint
Price: Negotiable
Packaging Details: standard export package
Delivery Time: 15 days after receiving 30% deposit
Payment Terms: L/C, T/T,,
Supply Ability: 5000 pieces per month
Apparent Power: 55-693kva Rated Power: 50-630kw
Rated Voltage: 400V Rated Current: 72-909A
Rated Frequency: 50/60HZ THDI: <3%
AC Connection: 3/N/PE Overload Capacity: 110%-10min,120%-1min
Battery Voltage: 600-700VDC DC Voltage Range: 500-900V
Max. Efficiency: 95.5-98.5% Protection Degree: IP20
Weight: 450-900kg Display: Touch Screen
High Light:

630KW Bidirectional Battery Inverter

,

693kva Bidirectional Battery Inverter

,

IP20 Solar Charger Battery Inverter

Bidirectional battery inverter from 50KW to 630KW,can be used alone or with solar charge and other accessories

Features

Configured with solar charge controller, bypass cabinet or stand alone.
Pak-shaving, back-up, use the system however you want it

Applicable in MW level system by paralleling multiple units



More convenient for parameter setting and maintenance

Supports remote control of DG





Specification

  CNS SPS50 CNS SPS100 CNS SPS 250 CNS SPS 500 CNS SPS 630
AC(grid-connected)
Apparent power 55kva 110kva 275kva 550kva 693kva
Rated power 50KW 100KW 250KW 500KW 630KW
Rated voltage 400V
Rated current 72A 144A 361A 722A 909A
Voltage rated 310V-450V
Rated frequency 50/60HZ
Frequency range 45-55/55-65HZ
THDI <3%
PF 0.8 lagging-0.8leading
AC connection 3/N/PE
AC(Off-grid)
Apparent power 55KVA 110KVA 275KVA 550KVA 693KVA
Rated power 50KW 100KW 250KW 500KW 630KW
Rated voltage 400V
Rated current 72A 144A 361A 722A 909A
THDU <=2%linear
Rated frequency 50/60HZ
Overload capacity 110%-10min 120%-1min
DC(battery and PV)
Rated power 50KW 100KW 250KW 500KW 630KW
Current regulation ±1%
Voltage regulation ±1%
Voltage ripple <3%
Current ripple <2%
Rated voltage 600VDC 600VDC 600VDC 700VDC 700VDC
Voltage range 500V-820V 600V-900V
Rated current 84A 167A 417A 714A 900A
General information
Max.efficiency 95.5% 97.1% 97.3% 98.5% 98.5%
Protection degree IP20
Noise emission <65db(A)@1m
Environment teperature -25℃…+55℃
Cooling Forced-air
Relative humidity 0-95%non-condensing
Max.altitude 6000m(derate over 3000m)
Dimension(W*H*D) 600*1630*800mm 1100*1890*850mm 1600*2080*850mm 1200*1900*800mm 1200*1900*800mm
Weight 450kg 820kg 1465kg 900kg 900kg
Build-in transfer Yes Yes Yes NO NO
Transfer between on/off grid Manual(default)Automatic(optional)<=10ms
Communication
Display Touch screen
Communication interface RS485/CAN
Certificate CE,MEA,PEA,EN,IEC



Our packing

693kva 50-630KW Bidirectional Battery Inverter IP20 Solar Charger 0



Certification

693kva 50-630KW Bidirectional Battery Inverter IP20 Solar Charger 1
