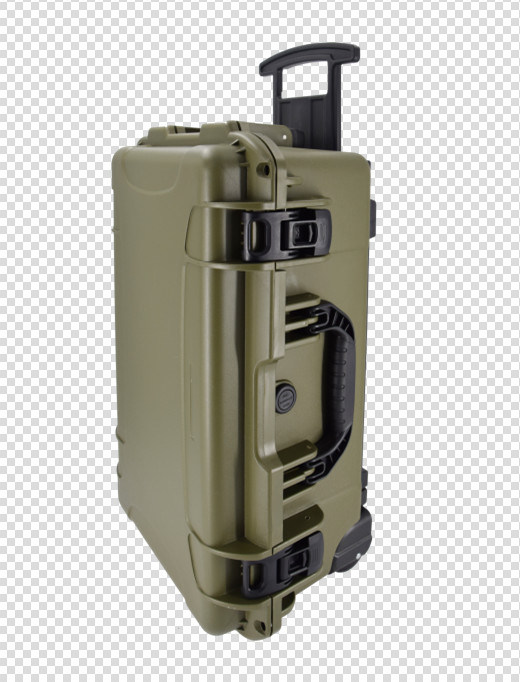

Portable PWM 52V 68Ah Lithium Ion Ups DC25.2V STD-T082433

Portable PWM 52V 68Ah Lithium Ion Ups DC25.2V STD-T082433

  • High Light

    52V 68Ah Lithium Ion Ups

    ,

    PWM Lithium Ion Ups

    ,

    DC25.2V Power Supply Ups

  • Battery Capacity
    52V 68Ah
  • AC Input Voltage
    80V ~260V,50/60Hz±1%
  • AC Output Voltage
    220V (50Hz)/110V(60Hz)
  • Solar Panel
    72V(Vp)/‹20A(IP)
  • Efficency
    92%
  • Place of Origin
    Shenzhen Consnant
  • Brand Name
    Consnant
  • Certification
    CE
  • Model Number
    STD-T102442
  • Minimum Order Quantity
    50 pieces
  • Price
    Negotiable
  • Packaging Details
    Export standard package
  • Delivery Time
    7 days for sample, 15-21 days for large quantity
  • Payment Terms
    L/C, T/T,
  • Supply Ability
    500 pieces per week

Portable PWM 52V 68Ah Lithium Ion Ups DC25.2V STD-T082433

                                  Portable AC/DC Power Supply

Features:



  • Use integrated design of interver,control circuit and battery packs.
  • Convenient design with luggage bag,easy to carry and use.
  • Intelligent control system.
  • pure sine wave output ,high efficiency.
  • Emergency power supply.

Info:

  • Material:Imported ABS plastics,firm and durable
  • Display:Coulombmeter,accurate and complete figure
  • Efficiency:92%
  • Life Span :AC,solar and car charging (optional)
  • Excellent performance at high/low temperature
  • Intelligent chip design,excellent batttery`s storage capacity





Technical Specification:

Model NO. STD-T102442 STT204840
Continuous Output Power 1000W 2000W
Peak Power 2000W 4000W
Battery Type Samsung/Panasonic 18650 Lithium Battery
Battery Capacity 24V43AH 48V40AH
External DC Charging DC25.2V7A DC58.8V7A
Charging Time 5~6H 6~7H
Solar Charging PWM(Optional)
Charging Current 10A
Input Volt Range 36~55V 72~85V
AC Output 220V/110V
Output Frequency 50/60Hz
Output Wave Form Pure Sine Wave
Dc Output 5V2A 12V10A 24V10A 5V2A12V10A48V10A
Working Temp -15℃~50℃
Operation Types RH45%~85%,NON-Condensing
Protection Types Over-charge,Over-display,Over temperature,Short circuit protection
Display Content DC Voltage,DC Current,Battery Remaining Capacity,Active Power,Remaining Time
Cooling Fan Cooling(When internal temperature is over 65℃
Dimension9L*H*W) 20 25
Weight
