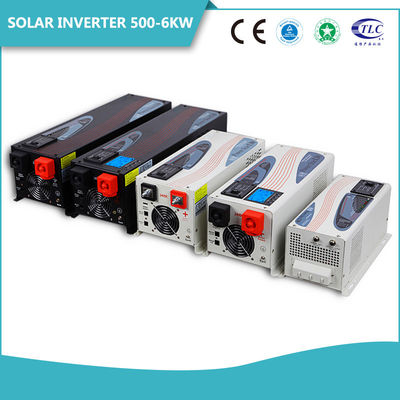

6000 Watt Pure Sine Wave Inverter , 6000 Watt Solar Inverter Remote Control Function

Basic Information
Place of Origin: Shenzhen, China
Brand Name: CONSNANT
Certification: CE, ISO
Model Number: CNS112
Minimum Order Quantity: 10
Price: US$160-500 /piece
Packaging Details: Export Stadard Package
Delivery Time: 5-7days for sample, 7-15 days for mass production.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000 pieces per year
AC Input Phase & Waveform: Single Phase & Pure Sine Wave Input Voltage: 95-126VAC Or 194-253VAC±4%
AC Output Phase & Waveform: Single Phase & Pure Sine Wave (bypass Mode Sync To Input) Output Frequency: 50Hz±0.3Hz 60Hz±0.3Hz (bypass Mode Sync To Input)
Peak Power: 3 Times Of Rating Power Short Circuit Protection: Yes, Shutdown After 10ms
Power Factor: 0.9-1.0 Battery Mode Efficiency: >85%
Line Mode Efficiency: >96% Communications: RS-232/USB/SNMP(custom-made)
High Light:

solar power 3 phase inverter

,

solar panel dc to ac inverter

CNS112 1-6KW Inverter




CNS112 series Pure Sine Wave Inverter Charger 1000W-6000W, LED/LCD digital display, 3times peak power, low frequency type with transformer, UPS function. It widely applied in wind generator, Solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station.



6000 Watt Pure Sine Wave Inverter , 6000 Watt Solar Inverter Remote Control Function 0


Main Features:
1. LED/LCD digital display show voltage, load and battery info in real time.
2. Peak power is three times of rated power.
3. Can work with inductive load such as air conditioner, motor door and so on.
4. Pure sine wave output, available for sensitive load.
5. 4-step progressive charging, 7 battery type selector.
6. Fast and powerful charger with 35A and 75A/90A.
7. Accept generator's energy output.
8. High power factor 0.9, low power consumption.
9. Automatically transfer between battery and line modes.
10. Microprocessor control guarantees high reliability.
11. Bypass without battery connected.
12. Remote control function.
13. Protection against: Over load, over temperature, over charging, low battery
14. Reverse connection (optional by hard connector), Blackouts



6000 Watt Pure Sine Wave Inverter , 6000 Watt Solar Inverter Remote Control Function 1


Technical specifications:

MODEL CNS112-1KW CNS112-1.5KW CNS112-2KW CNS112-3KW CNS112-4KW CNS112-5KW CNS112-6KW
Nominal Power 1000W 1500W 2000W 3000W 4000W 5000W 6000W
AC Input
Phase &
waveform
Single phase & Pure Sine Wave
Voltage 110/120/130VAC or 220/230/240VAC
Acceptable Voltage 95-126VAC or 194-253VAC±4%
Low Line Disconnect 85VAC±4% or 184VAC±4%
Low Line Re-connect 95VAC±4% or 194VAC±4%
High Line Disconnect 136VAC±4% or 263VAC±4%
High Line Re-connect 126VAC±4% or 253VAC±4%
Frequency 50Hz:41-54Hz 60Hz:51-64Hz
AC Output
Phase & waveform Single phase & Pure Sine Wave (bypass mode sync to input)
Voltage 110/120/130VAC or 220/230/240VAC±10%rms (bypass mode sync to input)
Frequency 50Hz±0.3Hz 60Hz±0.3Hz (bypass mode sync to input)
Peak Power 3 times of rating power
Short Circuit
Protection
Yes, shutdown after 10ms
Power Factor 0.9-1.0
DC Input
Battery Voltage 12VDC or 24VDC or 48VDC
Minimum Start
Voltage
10VDC or 20VDC or 40VDC
Low Battery Alarm 10.5±0.3vdc or 21±0.6vdc or 42±1.2vdc
Low DC input
Shut-down
10±0.3vdc or 20±0.6vdc or 40±1.2vdc
High DC input Alarm & Fault 16±0.3vdc or 32±0.6vdc or 64±1.2vdc
High DC input
Recovery
15.5±0.3vdc or 31±0.6vdc or 62±1.2vdc
MAX Charger
Current
20A/35A/ 50A/75A/90A(According to the Inverter model)
System parameter
Battery Mode
Efficiency
>85%
Line Mode
Efficiency
>96%
power saver Load <=25W (Enabled on "P/S auto" setting of Remote control)
Audible Alarm Sounding when the heat sink's tem is over 100ºC and shutdown after 30 seconds.
Over Load
Protection
110% <load<150%, beeps 0.5s every 1s, and Fault after 60s.
Load>150%, beeps 0.5s every 1s, and Fault after 20s.
Protections low battery,over charging,over temp,over load
Communications RS-232/USB/SNMP(custom-made)
Operating Environment 0-40ºC,0-90%RH(non-condensing)
Audible Noise <60dB
Net Weight(KG) 16kg 18kg 20kg 25kg 39kg 42kg 49kg
Dimension L X W X H 470 X223 X185mm 650 X223 X185mm
