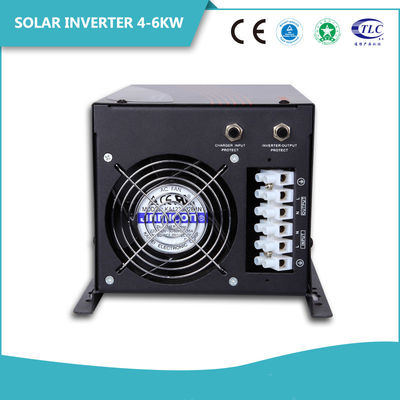

AC / DC Off Grid Solar Inverter Dry Contact 1 - 12kw Hybrid Singlt Phase

AC / DC Off Grid Solar Inverter Dry Contact 1 - 12kw Hybrid Singlt Phase

    • AC / DC Off Grid Solar Inverter Dry Contact 1 - 12kw Hybrid Singlt Phase
    • AC / DC Off Grid Solar Inverter Dry Contact 1 - 12kw Hybrid Singlt Phase
    • AC / DC Off Grid Solar Inverter Dry Contact 1 - 12kw Hybrid Singlt Phase
  • AC / DC Off Grid Solar Inverter Dry Contact 1 - 12kw Hybrid Singlt Phase

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: CONSNANT
    Certification: CE, ISO9001, ISO14001
    Model Number: CNS110

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiable
    Packaging Details: Each unit in one carton
    Delivery Time: 5-7 days for sample order, 7-15 days for mass production
    Payment Terms: 30% T/T inadvance, L/C, Western Union
    Supply Ability: 50000 pieces per year
    Contact Now
    Detailed Product Description
    Frequency: 50/60Hz Power Factor: 0.9~1.0
    Rated Charge Current: 40/60A Solar Charger Efficiency: ≥97%
    Efficienc: (Battery Mode)≥87%; (Line Mode) Nominal DC Input Voltage: 24/48VDC
    Transfer Time: AC To DC: 20ms(max); DC To AC: 15ms(max)

    AC / DC Off Grid Solar Inverter Dry Contact 1 - 12kw Hybrid Singlt Phase







    Features:

    1. AC/Solar Charging Off Grid Hybrid Inverter.

    2. LED/LCD display, Enhanced functions setting via LCD, Man-machine intelligent design

    3. Built-in 40A/60A optional MPPT solar charger controller.

    4. LCD shows the solar capacity.

    5. 5 stages adjustable AC charging current. AC charging also can be closed

    6. AC/DC priority modes can be set.

    7. Generator restart signal. (Dry contact)

    8. 3 times peak power. Strong loading capacity.

    9. Overload, output short-circuit protection.



    CNS110 Series Technical Specifications:




    Battery Inverter Mode Specifications:
    Output

    Output Voltage
    Waveform

    Sine wave

    Rated Output
    Power(KW)

    LV:1-6KW HV:1KW-12KW
    Power Factor 0.9~1.0

    Nominal Output
    Voltage(V)

    LV:120Vac±10% rms HV:230 Vac±10% rms

    Nominal Output
    Frequency(Hz)

    60Hz±0.3Hz
    50Hz±0.3Hz


    DC Voltage

    Nominal DC
    Input Voltage

    12VDC/24VDC/48VDC
    DC Voltage Range 10-15.5Vdc for 12V battery
    20-31.0 Vdc for 24V battery
    40-62.0 Vdc for 48V battery
    Low Battery Alarm 10.5Vdc±0.3Vdc for 12V Battery
    21.0 Vdc±0.6Vdc for24V Battery
    42.0 Vdc±1.2Vdc for 48V Battery

    Low DC
    input shut-down

    10.0Vdc±0.3Vdc for 12V Battery
    20.0Vdc±0.6Vdc for 24V Battery
    40.0Vdc±1.2Vdc for 48V Battery
    High DC input alarm&fault 16Vdc±0.3Vdc for 12V Battery
    32Vdc±0.6Vdc for 24V Battery
    64Vdc±1.2Vdc for 48V Battery
    High DC input recorvery 15.5Vdc±0.3Vdc for 12V Battery
    31.0Vdc±0.6Vdc for 24V Battery
    62.0Vdc±1.2Vdc for 48V Battery
    AC Charger Nominal Charge Current 20A/35A/50A/70A/90A(5satges adjustable charging current)
    Charge Current Regulation ±5Adc
    Over Charge protection Bat.V≧15.5VDC for 12V battery
    Bat.V≧31.0VDC for 24V battery
    Bat.V≧62.0VDC for48V battery
    Beeps 0.5s every 1s& fault after 60S
    Algorithm
    Three stage:Boost CC(Constant current stage) →Boost CV(Constant voltage stage) →Float(constant voltage stage)
    Solar Charger Rated Charge Current 40A 60A
    Rated Charge Battery Voltage Type 12V/24V/48V 12V/24V
    Max PV open Circuit array voltage 12V for 40Vdc
    24V for 40Vdc
    48V for 110Vdc
    Charger Mode MPPT
    PV Low Voltage Re-connect PV≧Bat.V=3V
    PV Low Voltage Disconnect PV≦Bat.V
    Efficiency Efficiency ≧97%
    Efficiency(Battery Mode) ≧85%
    Efficiency(Line Mode) >98%
    Transfer Time AC to DC 20ms(Max)
    DC to AC 15ms(Max)
    System parameter Over-load Protection

    110%<load<150%, beeps 0.5s every 1s, and fault after 60s off the output,
    Load>150%, beeps 0.5s every 1s, and fault after 20s.

    Surge rating(10s) 1:3(VA)
    Power Saver Load≦25W(enabled on “P/S auto” setting of Remote comtro;)
    Protections Low battery, over charging, overload, over temp
    Indicatoers LED+LCD Display
    General Specifications Operation Temperature Range 0℃ to 40℃
    Strorage Temperature -15℃~60℃
    Operation Humidity 5% to 95%(non-condensing)
    Audible Noise 60dB max
    Cooling Forced air, Variable speed fan
    Dimension(L*W*H)

    1-3KW: 526*423*260mm
    4-6KW:530*396*190mm
    7-12KW:627*416*204mm

    Net Weight(Kg) 1KW:21.5Kg; 1.5KW:23.5Kg
    3KW:30.5Kg 4KW:32Kg
    5KW:36.5Kg 6KW:40.5Kg
    7KW:43.5Kg 8KW:50Kg
    10KW:57.5Kg 12KW:60Kg


    AC / DC Off Grid Solar Inverter Dry Contact 1 - 12kw Hybrid Singlt Phase
