3KW 5KW Outdoor Solar Power System 48VDC 230VAC Pure Sine Wave For CCTV

3KW 5KW Outdoor Solar Power System 48VDC 230VAC Pure Sine Wave For CCTV

  • High Light

    5KW Outdoor Solar Power System

    ,

    48VDC Outdoor Solar Power System

    ,

    CCTV Outdoor UPS Systems

  • Model
    CNW4850L-3KW/L, CNW4850L-5KW
  • Nominal Capacity
    3KW/5KW
  • Watt Hour
    2560WH
  • Nominal Voltage
    48VDC, 230VAC (120VAC Is Optional For 3KW)
  • Power Factor
    1
  • Install Method
    Pole Mount, Wall Mount, Floor Installation
  • Place of Origin
    Shenzhen, China
  • Brand Name
    CONSNANT
  • Certification
    CE, ISO9001, ISO14001,ISO45001
  • Model Number
    CNW4850L-3KW/L, CNW4850L-5KW
  • Minimum Order Quantity
    10
  • Price
    Negotiable
  • Packaging Details
    Export Standard Package
  • Delivery Time
    5-7 days for sample order, 7-15 days for mass production
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    50000 pieces per year

3KW 5KW Outdoor Solar Power System 48VDC 230VAC Pure Sine Wave For CCTV

Outdoor Solar Power System

Model: CNW4850L-3KW/L, CNW4850L-5KW

Nominal Capacity: 3KW/5KW

Watt Hour: 2560WH

Nominal Voltage: 48VDC, 230VAC (120VAC is optional for 3KW)

Install Method: Pole Mount, Wall Mount, Floor Installation



Application field

  • Traffic Lights
  • CCTV
  • Road Monitor Camera
  • Other outdoor field

Description

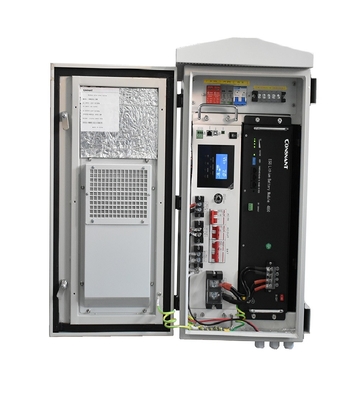

-The whole system integration includes an off-grid solar inverter module, lithium iron phosphate battery pack, PDU, and outdoor cabinet.

-The system is commonly used in the corner of the city, remote roads, mountains, bad environments, dust, moisture, rain, mist-erosion, very poor power quality in the area.

-The system provides a continuous pure sine wave AC power supply for outside communications/network equipment.



Feature:

  1. It adopts full-digital double closed-loop control, combined with advanced SPWM technology to output pure sine waves.
  2. Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.
  3. Four charging modes: PV Only, Mains Electricity Priority, PV Priority, and PV&Mains Electricity hybrid charging.
  4. Advanced MPPT technology with 99.9% efficiency.
  5. Comes with an LCD display and 3 LED indicators that can clearly indicate the status and data.
  6. Power saving mode, reduce no-load loss.
  7. Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan.
  8. It comes with double lithium battery activation modes: mains and PV, and supports lead-acid battery and lithium battery access.
  9. All-round protection for solar panels includes overload and short circuit protection, under-voltage and over-voltage protection, and reverse polarity protection.
  10. With sun protection, heat insulation, roof ventilation
  11. With waterproof and the filtration dust inlet
  12. The cabinet body is designed for the IP55 protection level. The cabinet front door shutters with waterproof design, on the back of welding outdoor cabinet.
  13. Modular design is easy to maintain
  14. System configuration AC and DC lightning protection



Model CNW4850L-3KW CNW4850L-3KWL CNW4850L-5KW
Input
Output voltage waveform Pure sine wave
Rated output power(W) 3000 3000 5000
Rated output voltage(Vac) 230 120 230
Power factor 1
output frequency range 50Hz ± 0.3Hz / 60Hz ± 0.3Hz
Bypass circuit breaker 63A
Rated battery input voltage 48V(minimum starting voltage 44V)
Battery voltage range 48VDC
Operating temperature range -15°C to 55°C
Storage temperature range -25°C ~ 60°C
Communication interface USB/RS485(WiFi/GPRS)/Dry Node Control
Dimension(L*W*D) 482*425*133mm
Weight(kg) 13.3
AC Charge
Battery type Lithium Battery
Maximum charge current 0-60A 0-40A 0-60A
Charge voltage range 40-58Vdc 40-60Vdc 40-58Vdc
Overcharge protection Alarm and turn off charging in 1 minute
DC Charge
Maximum PV open circuit voltage 145VDC
PV operating voltage range 60-145VDC
MPPT voltage range 60-115VDC
Battery voltage range 40-60VDC
Maximum output power 4200W
PV charge current range(settable) 0-80A
Lithium Battery Pack
Rated Capacity 50Ah Nominal Voltage 48VDC/51.2VDC
Cell Resistance 1Khz ≤0.8mΩ Charge Voltage 3.65V
Working environment temperature Charge:0°~C55°C
Dischrage:-10°C~55°C
Elevation Less than 2000m
Cycle life 2500cycles≥80%, 25±2℃, 1C/1C, 80% DOD
