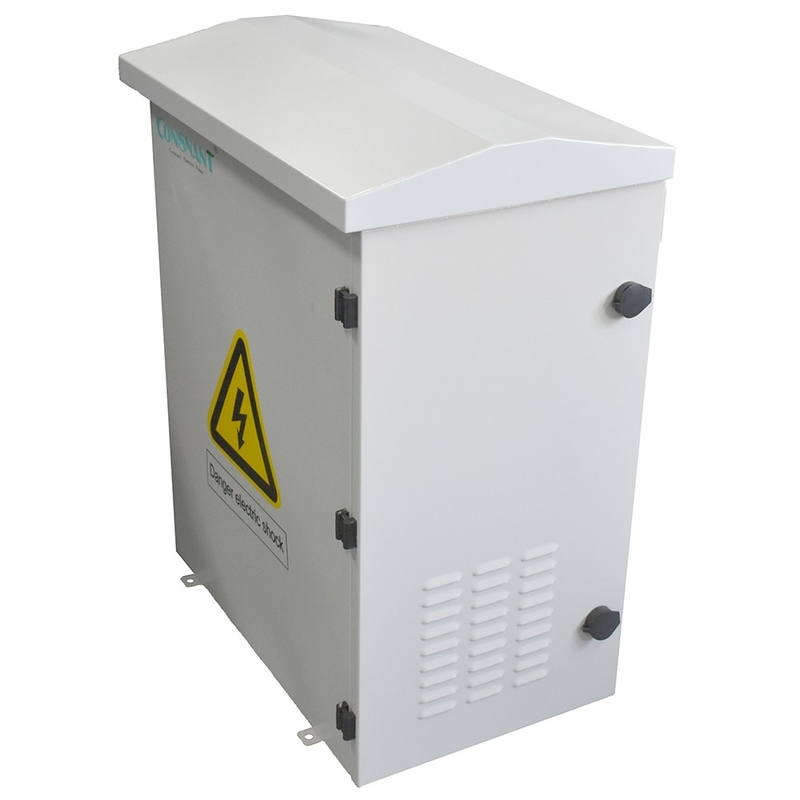

Outdoor Telecom Cabinet Integrated IP55 Outdoor Solar Power System 3KW / 5KW 2.56KWH
Product Description:
IP55 Outdoor Cabinet Characterization:

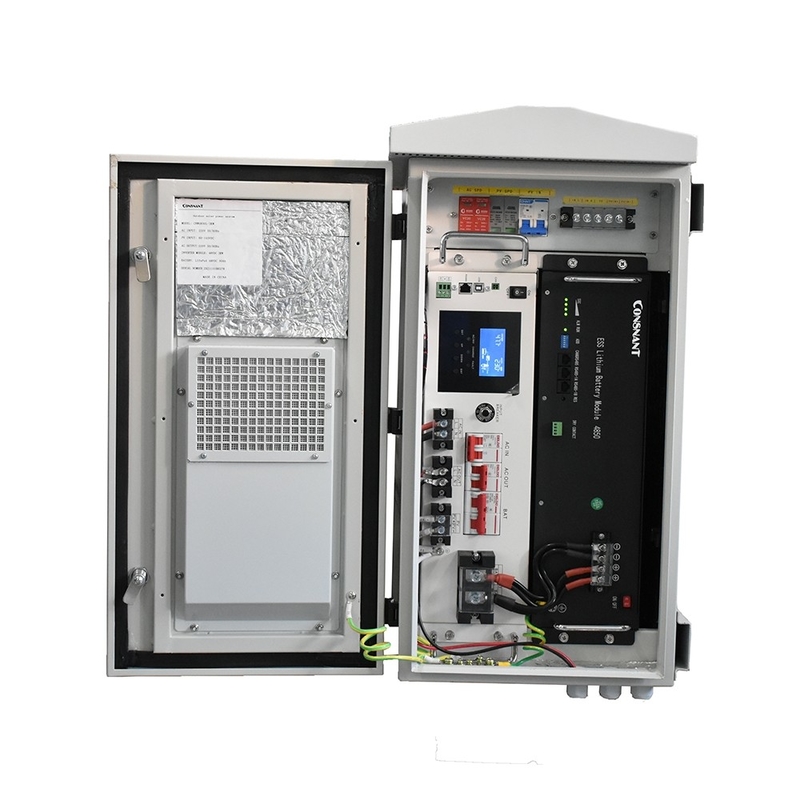

■ The whole system integration includes an off-grid solar inverter module, lithium iron phosphate battery pack, PDU, and
outdoor cabinet .
■ The system is commonly used in the corner of the city, remote roads, mountains, bad environments, dust, moisture, rain, mist-erosion, very poor power quality in the area .
■ The system provides a continuous pure sine wave AC power supply for outside communications/network equipment .
IP55 Outdoor Cabinet Environmental Adaptability:
■ Wide input voltage, avoids frequent switching to battery power because of large power grid voltage, reduce battery failure probability, adapt to the power environment in poor areas .
■ The environment which require higher IP level, we use heat exchanger to effectively reduce the temperature of box inside and improve IP protection level .
IP55 Outdoor Cabinet Technical Parameter:
| Model | CNW4850L-3KW | CNW4850L-3KWL | CNW4850L-5KW |
| Inverter | |||
| Output voltage waveform | Pure sine wave | ||
| Rated output power(W) | 3000 | 3000 | 5000 |
| Rated output voltage(Vac) | 230 | 120 | 230 |
| Power factor | 1 | ||
| Output frequency range | 50Hz±0.3Hz/60Hz±0.3Hz | ||
| Bypass circuit breaker | 63A | ||
| Rated battery input voltage | 48V(minimum starting voltage 44V) | ||
| Battery voltage range | 48VDC | ||
| Operating temperature range | -15℃to 55℃ | ||
| Storage temperature range | -25°℃～60°℃ | ||
| Communication interface | USB/RS485(WiFi/GPRS)/Dry Node Control | ||
| Dimensions (L*W*D) | 482*425*133mm | ||
| Weight (kg) | 13.3 | ||
| AC Charge | |||
| Battery type | Lithium Battery | ||
| Maximum charge current | 0-60A | 0-40A | 0-60A |
| Charge voltage range | 40-58Vdc | 40-60Vdc | 40-58Vdc |
| Overcharge protection | Alarm and turn off charging in 1 minute. | ||
| DC Charge | |||
| Maximum PV open circuitvoltage | 145Vdc | ||
| PV operating voltage range | 60-145Vdc | ||
| MPPT voltage range | 60-115Vdc | ||
| Battery voltage range | 40-60Vdc | ||
| Maximum output power | 4200WV | ||
| PV charge currentrange (settable) | 0-80A | ||
| Lithium Battery Pack | |||
| Rated Capacity | 50Ah | Nominal Voltage | 48VDC/51.2VDC |
| Cell Resistance 1Khz | ≤0.8mQ | Charge Voltage | 3.65V |
| Working environmenttemperature | Charge:0℃～55℃Discharge:-10℃～55℃ | Elevation | Less than 2000m |
| Cycle life | 2500cycles≥80%,25±2℃,1C/1C,80% DOD | ||
