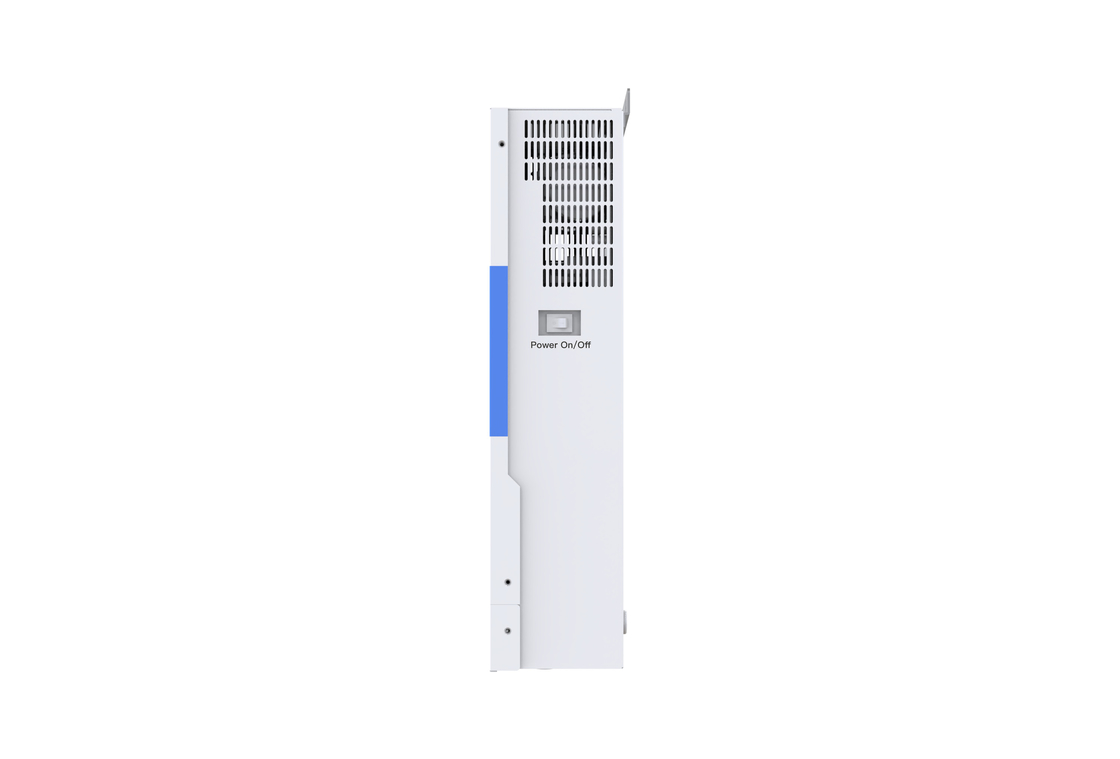

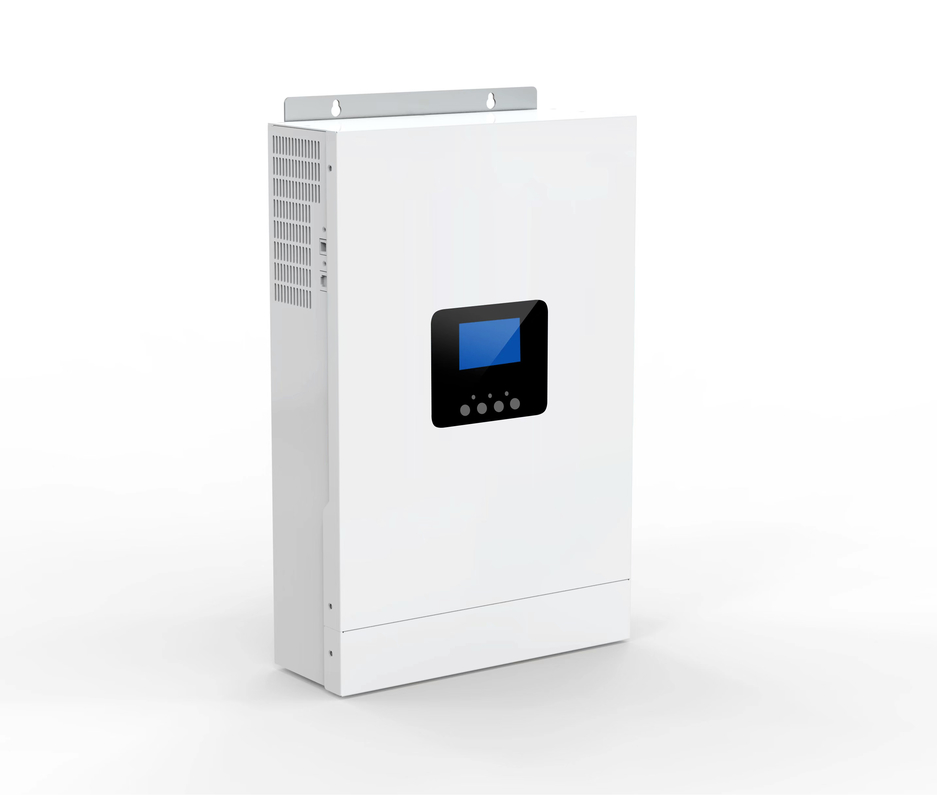

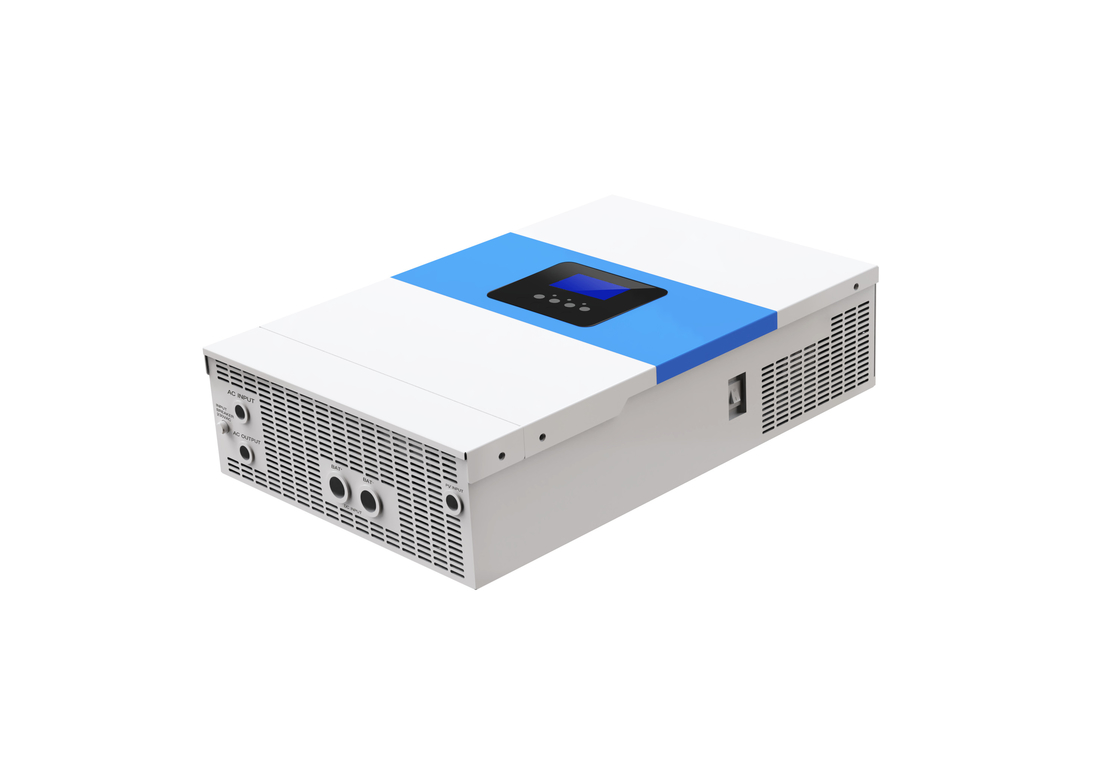

Pure Sine Wave Off Grid Inverter 230VAC Optical Storage Integrated Machine
-
High Light
Optical Storage Off Grid Inverter
,RS232 interface Off Grid Inverter
,Off grid solar inverter 230VAC
-
ModelCNS110 3500-24, CNS110 5500-48
-
Nominal Capacity3.5KW/5.5KW
-
Nominal Voltage24VDC/48VDC
-
Output Voltage230VAC
-
Input Voltage Range90 – 280VAC (Suitable For Household Appliances),170-280VAC (suitable For Personal Computers)
-
MPPT Operating Voltage Range120-450VDC
-
MPPT100A
-
Frequency Range50Hz/60Hz
-
Size300*110*462
-
Type230VAC Off-grid Solar Inverter
-
ColorBlue And More
-
Place of OriginMADE IN CHINA
-
Brand NameHybrid Solar Inverter
-
CertificationCE
-
Model NumberCNS110 OFF-GRID INVERTER
-
PriceNegotiable
-
Packaging DetailsExport Standard Package
-
Delivery Time2 weeks
-
Payment TermsT/T
Pure Sine Wave Off Grid Inverter 230VAC Optical Storage Integrated Machine
CNS110 OFF-GRID INVERTER 230VAC
Hybrid Solar Inverter Product Description:
- Hybrid Solar Inverter pure sine wave off-grid type optical storage integrated machine
- Hybrid Solar Inverter output power factor1
- Hybrid Solar Inverter up to 6 units can be Paralleled
- Hybrid Solar Inverter wide PV input voltage range (120-450VDC)
- Hybrid Solar Inverter can work normally without a battery
- Hybrid Solar Inverter built-in 100A MPPT solar charger
- Hybrid Solar Inverter the battery balancing feature optimizes battery performance and extends the life
- Hybrid Solar Inverter built-in dust screen for use in harsh environments
Hybrid Solar Inverter Technical Parameter:
| Model | CNS110 3500-24 | CNS110 5500-48 |
| Rated power | 3500VA/3000W | 5500VA/5500W |
| Input | ||
| Voltage | 230VAC | |
| Voltage range | 170-280VAC(suitable for personal computers)
90-280VAC(Suitable for household appliances) |
|
| Frequency range | 50Hz/60Hz(Automatic adaptation) | |
| Output | ||
| Grid voltage regulation(battery mode) | 230VAC±5% | |
| Surge power | 7000VA | 11000VA |
| Efficiency | >93.6% | |
| Switch time | 10ms | |
| Waveform | Pure sine wave | |
| Battery | ||
| Battery voltage | 24VDC | 48VDC |
| Float charge voltage | 27VDC | 54VDC |
| Overcharge protection | 33VDC | 63VDC |
| PV Charge &AC Charge | ||
| PV maximum open-circuit voltage | 500VDC | 500VDC |
| PV maximum power | 5500W | 5500W |
| Maximum grid | 80A | 80A |
| MPPT operating voltage range | 120VDC-450VDC | 120VDC-450VDC |
| PV maximum | 100A | 100A |
| charge current | ||
| Physical properties | ||
| Size | 300*110*462 | |
| Net weight (kg) | 10.5 | 11.5 |
| Communication interface | RS232 | |
| Environment | ||
| Humidity | Relative humidity (non-condensing) | |
| Operating temperature | -10℃-50℃ | |
| Storage temperature | -15℃-60℃ | |
Hybrid Solar Inverter FAQ:
