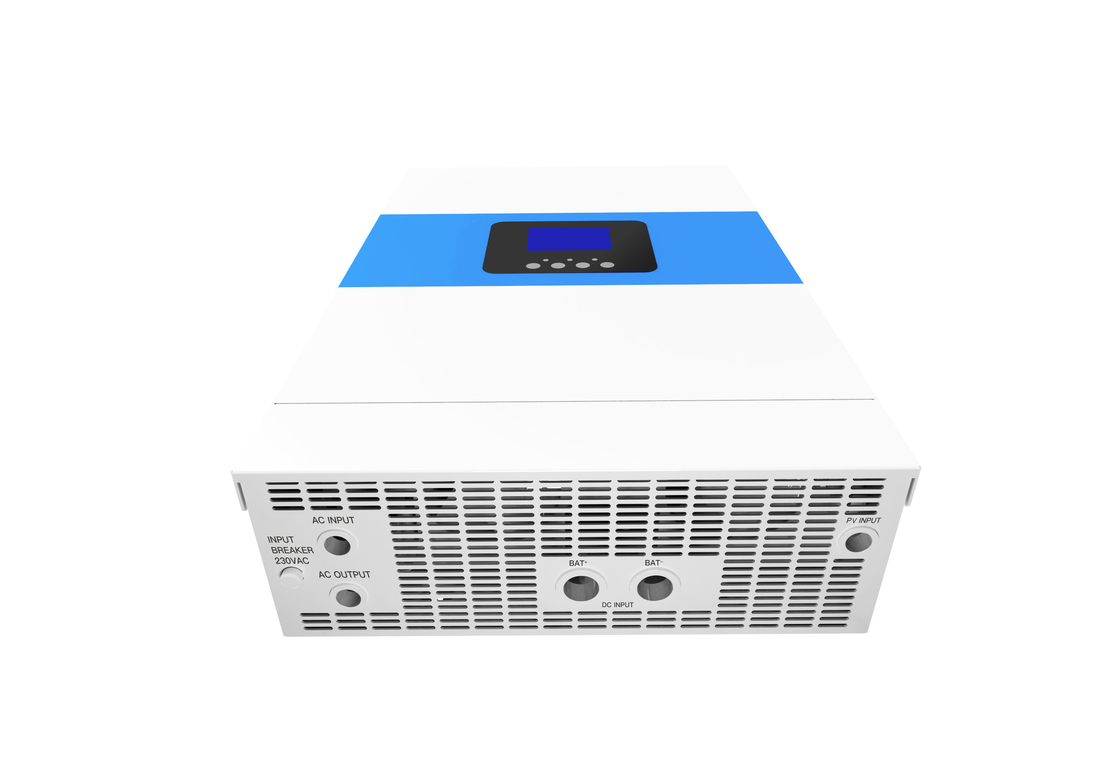

CNS110 3500-24 3500W 24VDC Off Grid Solar Inverter Sine Wave For Household Appliances
-
High Light
24VDC Off Grid Solar Inverter
,sine wave Off Grid Solar Inverter
-
ModelCNS110 3500-24
-
Rated Power3500VA/3500W
-
Switch Time10ms
-
Surge Power6000VA
-
Size300*110*462mm
-
WaveformPure Sine Wave
-
Place of OriginShenzhen,China
-
Brand NameCONSNANT
-
CertificationCE,ISO9001,ISO14001
-
Model NumberCNS110 3500-24
-
Minimum Order Quantity10
-
PriceNegotiable
-
Packaging DetailsEach unit in one carton
-
Delivery Time20 days after receiving 30% deposit
-
Payment TermsL/C, T/T, Western Union
-
Supply Ability500 pieces per month
CNS110 3500-24 3500W 24VDC Off Grid Solar Inverter Sine Wave For Household Appliances
OFF Grid Inverter CNS110 3500-24 24VDC 3.5KW 230VAC MPPT 100A
CNS110 Series Off-grid Inverter
PERFORMANCE AND FUNCTIONALITY
-Pure sine wave off-grid type optical storage integrated machine.
-Output power factor 1.
-Up to 6 units can be Parallelled.
-Wide PV input voltage range (120-500VDC).
-It can work normally without a battery.
-Built-in 100A MPPT solar charger.
-Battery balancing feature optimizes battery performance and extend life.
-Built-in dust screen for use in harsh environment.
| Model | CNS110 3500-24 | ||
| Rated power | 3500VA/3500W | ||
| Input | |||
| Voltage | 230VAC | ||
| Voltage range | 170-280VAC(uitable for personal computers) | ||
| 90-280VAC(Suitable for household appliances) | |||
| Frequency range | 50Hz/60Hz(Automatic adaptation) | ||
| Output | |||
| Grid voltage regulation | 230VAC±5% | ||
| (battery mode) | |||
| Surge power | 7000VA | ||
| Efficiency | >93.6% | ||
| Switch time | 10ms | ||
| Waveform | Pure sine wave | ||
| Battery | |||
| Battery voltage | 24VDC | ||
| Float charge voltage | 27VDC | ||
| Overcharge protection | 33VDC | ||
| PV Charge &AC Charge | |||
| PV maximum open circuit voltage | 500VDC | ||
| PV maximum power | 5000W | ||
| Maximum grid charge current | 80A | ||
| MPPT operating | 120VDC-450VDC | ||
| voltage range | |||
| PV maximum charge current | 100A | ||
| Physical properties | |||
| Size(mm) | 300*110*462 | ||
| Net weight (kg) | 10 | ||
| Communication interface | USB/RS232(standard) Wifi(optional) | ||
| Environment | |||
| Humidity | 5%-95%Relative humidity (non-condensing) | ||
| Operating temperature | -10℃-50℃ | ||
| Storage temperature | -15℃-60℃ | ||
