48V Solar Grid Tie Inverter 110-230Vac Lead Acid Pure Sine Wave

48V Solar Grid Tie Inverter 110-230Vac Lead Acid Pure Sine Wave

  • High Light

    48V Solar Grid Tie Inverter


    230Vac Solar Grid Tie Inverter


    Lead Acid Hybrid Ups Inverter

  • Color
  • Frequency
    50Hz/ 60Hz (automatic Detection)
  • Battery Type
    Lead Acid Or Lithium Battery
  • Efficiency
  • Communicat Ion Interface
    USB/RS485 (WiFi/GPRS)/Dry Node Control
  • Size
  • Weight
  • Place of Origin
    ShenZhen, China
  • Brand Name
  • Certification
    CE(EN62109); EN61000; C2
  • Model Number
    HT4830S80-145 | HT4840S80-145 | HT4850S80-145 | HT4825U80-145 | HT4830U80-145 | HT4835U80-145
  • Minimum Order Quantity
    20 Pieces
  • Price
  • Packaging Details
    Export Standard Package
  • Delivery Time
    5-8 days for sample order, 15-21 days for large quantity
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    1000 pieces per month

48V Solar Grid Tie Inverter 110-230Vac Lead Acid Pure Sine Wave

Hybrid PV Energy Storage Rack Mount Off Grid Solar Inverter


Product Instruction:

     HT series is a new hybrid PV energy storage inverter controller integrating PV energy storage,

mains charging and storage and AC sine wave output. Using DSP control through advanced control

algorithms, it comes with high response speed, high reliability, high industrialization standard and

other characteristics.

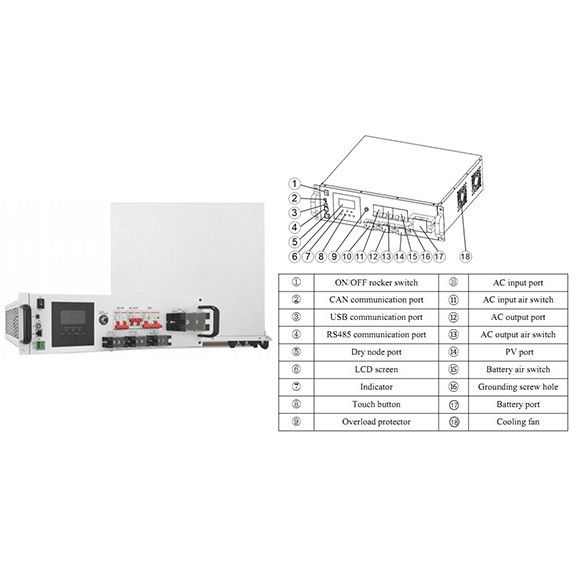

48V Solar Grid Tie Inverter 110-230Vac Lead Acid Pure Sine Wave 048V Solar Grid Tie Inverter 110-230Vac Lead Acid Pure Sine Wave 1


     With segmented LCD display design, the product can display the system running data and status in real time. All-round electronic protections ensure that the entire system is safer and more stable.


     • The AC-DC charging module adopts advanced control algorithm to realize full digital voltage

and current double closed-loop control with high control precision and small size. Wide AC voltage

input range and complete input/output protections enable stable and reliable battery charging and

• The DC-AC inverter module based on a full digital intelligent design uses advanced SPWM

technology to output pure sine waves and convert DC to AC, suitable for AC loads such as household

appliances, power tools, industrial equipment, electronic audio and video equipment.


Key Feature:

1. Full digital voltage; current double closed loop control, combined with advanced SPWM technology

to output pure sine wave.
2. Two output modes: mains bypass and inverter output enable uninterrupted power supply.
3. 4 charging modes are available for choice:

    Only PV, Mains priority, PV priority, and Hybrid charging.
4. Advanced MPPT technology with efficiency up to 99.9%.
5. LCD screen design, with 3 LED indicators, for dynamic display of system data and run status.

6. ON/OFF rocker switch controls AC output.
7. Power saving mode reduces no-load loss.
8. Intelligent variable speed fan ensures efficient heat dissipation, and thereby extends system life.
9. Double lithium battery activation modes: mains and PV, and supports lead-acid battery and

    lithium batteryaccess.
10. Multiple protections provide 3
60 ° all-round protection for the system.

11. Complete protections include multi-electrical appliance air switch short circuit protection,

     overvoltage and undervoltage protection, overload protection, back-flow protection, etc.
12. Horizontal installation facilitates cabinet combination installation.
13. Lithium battery can be activated by both mains and PV panel.


Specification Reference:

Model HT4830S80-145 HT4840S80-145 HT4850S80-145 HT4825U80-145 HT4830U80-145 HT4835U80-145
Mains mode
Frequency 50Hz/ 60Hz (automatic detection)
Frequency range 47±0.3Hz ~ 55±0.3Hz (50Hz);
57±0.3Hz ~ 65±0.3Hz (60Hz);
Overload/short circuit protection Circuit breaker
Efficiency >95%
Conversion time 10ms (typical)
(bypass and inverter)
AC backflow protection Yes
Maximum bypass overload current 40A
Inverter mode
Output voltage waveform Pure sine wave
Power factor 1
Output voltage error ±5%
Output frequency range (Hz) 50Hz ± 0.3Hz
60Hz ± 0.3Hz
Output short circuit protection Circuit breaker
Bypass circuit breaker specification 63A
Rated battery input voltage 48V (minimum starting voltage 44V)
Battery voltage range 40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm / shutdown voltage / overvoltage alarm / overvoltage recovery...LCD screen can be set)
Eco mode Load ””≤ 50W
AC charging
Battery type Lead acid or lithium battery
current error
± 5Adc
Short circuit protection Circuit breaker
Circuit breaker specification (AC IN) 63A/(BAT) 125A
Overcharge protection Alarm and turn off charging in 1 minute.
PC charge
Maximum PV open circuit voltage 145Vdc
PV operating voltage range 60-145Vdc
MPPT voltage range 60-115Vdc
Battery voltage range 40-60Vdc
Maximum output power 4200W
PV charge current range (settable) 0-80A
Charge short circuit protection BAT circuit breaker and fuse
Wiring protection Reverse polarity protection
Hybrid charging Max charger current specifications (AC charger+PV charger)
Max charger current(can be set) 0-140A 0-120A
Certified specification
Specification certification CE(EN62109)
EMC certification level EN61000, C2
Operating temperature range -15°C to 55°C
Storage temperature range -25°C ~ 60°C
RH range 5% to 95% (conformal coating protection)
Noise ≤”60dB
Heat dissipation Forced air cooling, adjustable air speed
Communicat ion interface USB/RS485 (WiFi/GPRS)/Dry Node Control
Dimensions (L*W*D) 482*425*133mm
Weight (kg) 13.3






     Warning: risk of electric shock! Make sure all power supplies are disconnected from the all-in-one machine and

the capacitor is completely discharged before performing any checks or operations!
