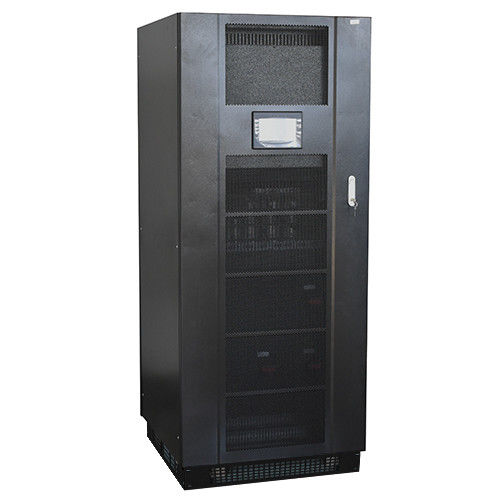

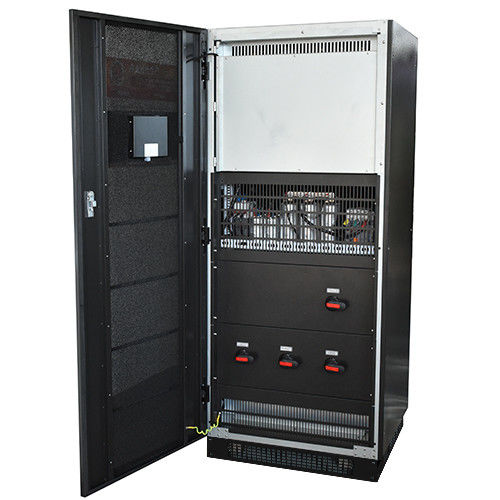

SNMP RS485 Low Frequency Online UPS 10-600KVA 384VDC Ups Power Supply
-
High Light
SNMP Low Frequency Online UPS
,RS485 Low Frequency Online UPS
,384VDC Ups Power Supply
-
ColorBlack
-
Power10-600KVA
-
System Voltage384VDC
-
SizeDepending
-
WeightDepeding
-
DisplayLCD 7" Touch Screen Display
-
Parallel Type8 Parallel Machine Max
-
Place of OriginShenZhen, China
-
Brand NameCONSNANT
-
CertificationCE,ISO9001/ISO14001
-
Model NumberCNG330
-
Minimum Order Quantity1Uint
-
PriceNegotiable
-
Packaging DetailsEach Piece protected by styrofoam in a carton.Pallet
-
Delivery Time15days after receiving 30% deposit
-
Payment TermsL/C, T/T,
-
Supply Ability500 pieces per month
SNMP RS485 Low Frequency Online UPS 10-600KVA 384VDC Ups Power Supply
High intelligence and reliable power supply:
Due to its outstanding mechanical and electrical design,CNG330 series UPS provides maximum protection
for vital mission-critical networks, security appl ications (electro-medical) and industrial applications.The load
for vital mission-critical networks, security appl ications (electro-medical) and industrial applications.The load
is powered continuously by the inverter with a filtered, stabilized and regulated sinewave supply. The input and
output EMI filters considerably increase the immunity of the load to mains disturbances and surges.The CNG330
uses on-line double conversion technology (VFI) with isolation transformer on the inverter output.
The CNG330 is supplied with Watch & Save 3000 software as standard and can be remotely monitored using the
Power NetGuard system from anywhere in the world. Additional battery extension packs allow the standard battery
runtime to be extended up to several hours.
Feature:
SIMPLE TO INSTALL:
■ Capability to install the UPS into any distribution system(neutral not required on rectifier input);
■ Capability to separate the rectifier/bypass power networks and to power them from two separate sources, without Galvanic
isolation (Necessary on UPS without an output transformer).
■ Capability to separate the rectifier/bypass power networks and to power them from two separate sources, without Galvanic
isolation (Necessary on UPS without an output transformer).
HIGH RELIABILITY:
■ Extremely high short-circuit current to ensure compatibility with the most difficult transformer applications (lighting, drives and
industrial processes) and an isolation transformer on the inverter output;
■ Full microprocessor control with no-break static and manual bypasses;
■ IGBT technology.
industrial processes) and an isolation transformer on the inverter output;
■ Full microprocessor control with no-break static and manual bypasses;
■ IGBT technology.
LOW CONSUMPTION LEVELS:
CNG330 can achieve efficiencies >98% thanks to selectable Economy Mode which can be used in stable electrical
environments to provide power supply continuity when the mains fail.
| CNG330 10-600KVA | ||||||||||||
| Model | 10KVA | 20KVA | 30KVA | 60KVA | 80KVA | 100KVA | 160KVA | 200KVA | 250KVA | 300KVA | 500KVA | 600KVA |
| Capacity | 8KW | 16KW | 24KW | 48KW | 64KW | 80KW | 128KW | 160KW | 250KW | 300KW | 500KW | 600KW |
| Input | ||||||||||||
| Rated voltage | 400 Vac three-phase | |||||||||||
| Voltage range | 380/400/415VAC(+25%,Can be set through the LCD panel) | |||||||||||
| Frequency range | 40-70Hz(Automatically select synchronization range according to grid frequency) | |||||||||||
| Range(HZ) | 50±5%(±10%)Bypass synchronization tracking | |||||||||||
| Phase system | 3φ4W+PE(Three phase five wire system) | |||||||||||
| Battery voltage(VDC) | 384 | 480 | ||||||||||
| Battery quantity(section) |
Standard with 32 (30~34,can be set through the LCD panel); (500/600KVA(Standard 40 knots (38~42knots,can be set through the LCD panel)) |
|||||||||||
| Output | ||||||||||||
| Power factor | 0.8/0.9 | |||||||||||
| Voltage(V) | L-N: 220±1% L-L: 380±1% | |||||||||||
| Three-phase 100% load unbalance voltage stability |
≤2%,Allow 100% imbalance | |||||||||||
| Frequency(HZ) | Normal power, tracking the frequency of power, Grid abnormal. 50±0.2% | |||||||||||
| Parallel operation mode (parallel type) |
8 parallel machine | |||||||||||
| Others | ||||||||||||
| Index | Standard with no transfer time maintenance bypass switch | |||||||||||
| communication function | Provides dry contract communication and RS232/RS485, Optional SNMP option to achieve intelligent monitoring of UPS | |||||||||||
| Cooling way | Forced cooling | |||||||||||
| Operating temperature(℃) | 0~40 | |||||||||||
| Humidity | 0~95%, non-condensing | |||||||||||
Packaging & Shipping
- Payment T/T,L/C, and money gram
- T/T 30% deposit, balance in full before shipment
- Packing woodencase / as customer request
- Warranty 1 year
