Bypass Synchronization Online Ups System ISO14001 HD Panel 384VDC

Bypass Synchronization Online Ups System ISO14001 HD Panel 384VDC

  • High Light

    Bypass Synchronization Online Ups System


    ISO14001 Online Ups System


    384VDC Online Uninterruptible Power Supply

  • Color
  • Power
  • Application
    Data Center,Local Area Networks,Serves,Industrial Processes,Traffic
  • System Voltage
  • Display
    LCD 7" Touch Screen Display
  • Operating Temperature(℃)
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Each Piece protected by styrofoam in a carton.Pallet
  • Delivery Time
    15days after receiving 30% deposit
  • Payment Terms
    L/C, T/T,
  • Supply Ability
    500 pieces per month

Bypass Synchronization Online Ups System ISO14001 HD Panel 384VDC

  • Mutiple PC system accordance for such as Windows 2008, Vista,2003, XP; Mac OS X, Linux, Novell and most popular Unix operating systems.
  • High level diagnostics: event log with 128 messages, states, measurements and alarms – available from the built-in LCD with several languages.
  • achieve efficiencies >98% thanks to selectable Economy Mode which can be used in stable electrical environments to provide power supply continuity when the mains fail.

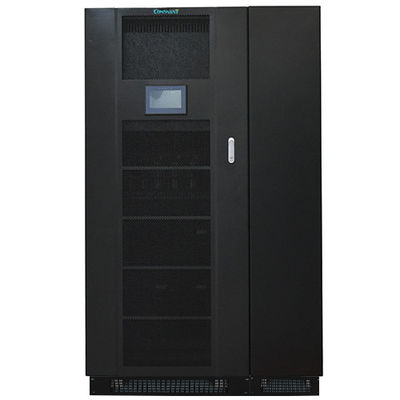

Bypass Synchronization Online Ups System ISO14001 HD Panel 384VDC 0


CNG330 10-600KVA
Model 10KVA 20KVA 30KVA 60KVA 80KVA 100KVA 160KVA 200KVA 250KVA 300KVA 500KVA 600KVA
Capacity 8KW 16KW 24KW 48KW 64KW 80KW 128KW 160KW 250KW 300KW 500KW 600KW
Rated voltage 400 Vac three-phase
Voltage range 380/400/415VAC(+25%,Can be set through the LCD panel)
Frequency range 40-70Hz(Automatically select synchronization range according to grid frequency)
Range(HZ) 50±5%(±10%)Bypass synchronization tracking
Battery voltage(VDC) 384 480
Battery quantity(section)

Standard with 32 (30~34,can be set through the LCD panel);

(500/600KVA(Standard 40 knots (38~42knots,can be set through the LCD panel))

Power factor 0.8/0.9
Voltage(V) L-N: 220±1% L-L: 380±1%
Parallel operation mode
(parallel type)
8 parallel machine
Waveform distortion Linear loadTHD<3%; Nonlinear loadTHD<5%
Overload capacity 125% full load for 10 minutes, maintain 150 % full load for 1 minute and then switch to bypass power supply, after reducing the load can automatically restore the inverter
Panel display LED displays working status and fault indication; LCD displays three-phase input voltage, input frequency, three-phase output voltage, load ,battery voltage, battery charge and discharge current, etc
Display LCD 7" touch screen display
Alarm function Battery low voltage, abnormal power supply, overload, UPS failure, over temperature protection
Protection Input over voltage, battery under voltage, overload, short circuit, over temperature protection
Cooling way Forced cooling
Operating temperature(℃) 0~40




Packaging & Shipping


  1. Payment T/T,L/C,  and money gram
  2. T/T 30% deposit, balance in full before shipment
  3. Packing woodencase / as customer request
  4. Warranty 1 year
