Product Introduction:

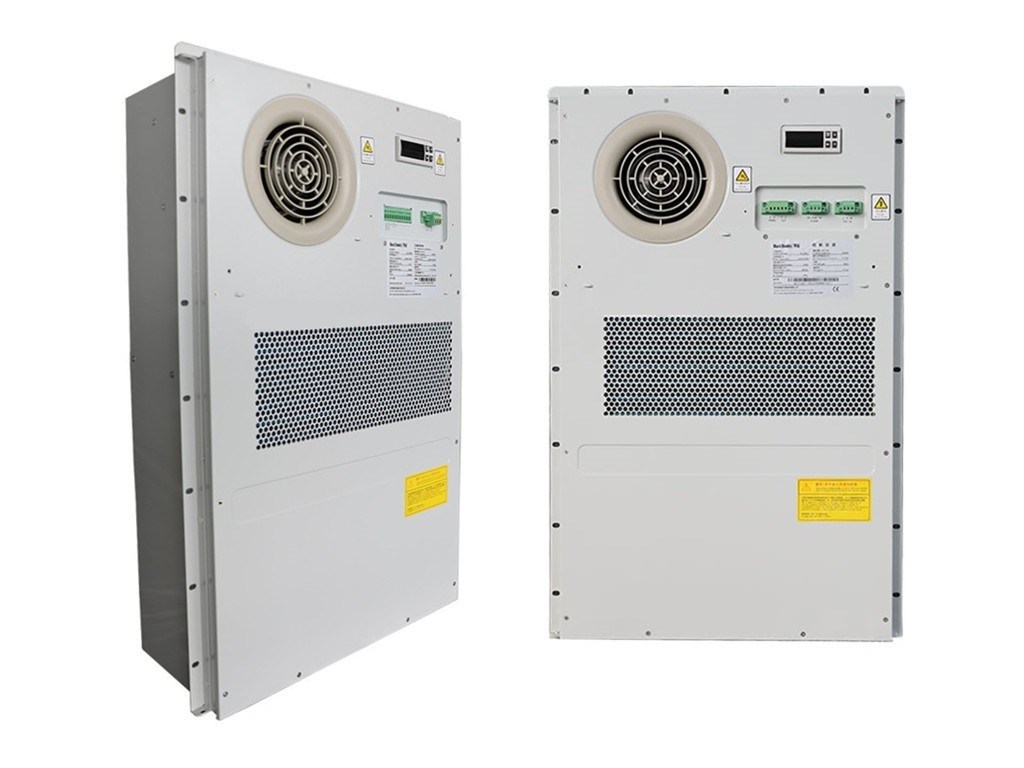

AC - X series air conditioner is a kind of temperature control equipment applied to cabinets with relatively concentrated heat source. It effectively solve the cabinet heating problem with the advantages of short air duct and uniform air-out. It is the first choice model for the communication industry outdoor base station.
Application:
Telecommunication, Electric power, Machinery, Machine tools, Textile, Transportation, Automobile, Petroleum, Chemical industry, New energy, Metallurgy, Advertising
Product advantages:
1.flexible and convenient installation
2. low noise, efficient, corrosion resistant and outstanding high temperature performance
3. the world famous compressor and fan
4.Multifunction alarm output, real-time system monitoring, convenient human-computer interface.
5.Unique external cycle patent technology, improving product maintenance cycle, with draining and desilting
Parameters:
Input voltage :AC220V +/-15%
Telecommunication interface:RS485
Alarm output: Dry contact
IP grade:IP55
Refrigerant:R134a
Working temperature:-40℃~+55℃
Technical Specification:
| MODEL |
COOLING CAPACITY (W) |
DIMENSIONS(NO FLANGE) MM |
HEATER W |
RATED POWER W |
NOISE dB(A) |
WEIGHT KG |
||
| H | W | D | ||||||
| AC0300X | 300 | 550 | 320 | 170 | 300 | 186 | 62 | 15 |
| AC0600X | 600 | 550 | 320 | 170 | 500 | 298 | 62 | 17 |
| AC0800X | 800 | 723 | 370 | 200 | 800 | 350 | 63 | 22 |
| AC1000X | 1000 | 746 | 446 | 200 | 1000 | 433 | 64 | 28 |
| AC1500X | 1500 | 746 | 446 | 200 | 1000 | 531 | 64 | 29 |
| AC2000X | 2000 | 746 | 446 | 200 | 1000 | 800 | 64 | 34 |
| AC2500X | 2500 | 945 | 505 | 200 | 1000 | 1150 | 64 | 44 |
| AC3000X | 3000 | 1273 | 485 | 220 | 1600 | 1210 | 64 | 52 |
| AC4000X | 4000 | 1273 | 485 | 250 | 1600 | 1800 | 64 | 60 |
Our products are sold all over the world, you can rest assured.
