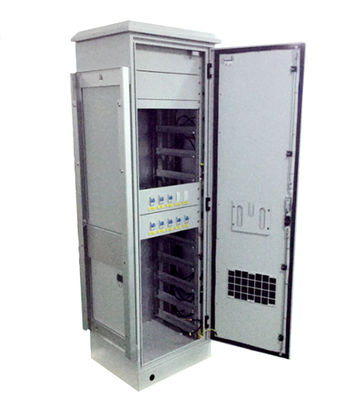

Telecom Electronics / Battery IP55 Outdoor Cabinet With Polyurethane Insulation
Introduction:
Outdoor Battery Cabinet is designed to provide a secure and clean environment for equipment in harsh or outdoor environments.
The outdoor cabinet can be fully customized, the details in the presentation is for reference. Its high security and equipment integration for a total packaged solution make it outstanding from other products.
Typical applications:
Communication and telecommunication installations, the housing of data and control equipment. The cabinet can accommodate the application equipment, DC or AC backup power, and batteries.
Features:
CRC sheet frame, roof, and Aircon/HEX/Peltier covers
|
Steel sandwich panel construction
|
Attractive powder coat finish
|
Polyurethane insulation
|
Vandal resistant 3 point locking
|
Galvanised steel base
|
48V DC Air-conditioning or Heat Exchanger (HEX) for heat removal
|
Filtered air inlet/outlet for battery compartment (HEX version)
|
240V AC Heater (HEX)
|
Accommodates up to 10 battery
|
Product Parameters:
Item | parameter |
Basic Specification | |
Internal dimension |
OEM battery size + 100 mm free space on both sides from battery + 200 mm from cabinet bottom + 450 mm free space on top. Fixed side panel and other supporting member of the cabinet is 1.6mm thick CRC sheet |
Cabinet roof | Slanting Canopy type |
Base plate | 2.0mm thick CRC sheet |
Base high | Clear ground clearance of 300 mm from surface |
Wall material | 1.6mm CRC sheet |
Cable Entry Arrangement | 6x PG 29 Gland at bottom cover |
Door & Locking |
|
IP | IP55 |
Cable laying arrangement. | Cable laying arrangement on both inner side panel of cabinet through hooks |
Document Holder | Document Punch on front door with PVC Sheet to hold the Documents |
Operating temperature | 0~55℃ |
Cabinet relative humidity | ≤95%, 25℃ |
Air Circulation & Heat exhaust arrangement | |
Temperature control | Fresh air circulation from well sized air vents situated on lower half of side panel and exhaust through fans on top through canopy. |
Other info | |
Sealing Arrangement | Proper IP 55 Sealing kit should be used for sealing. |
Thermal Insulation | Internal Insulation: 10mm thick and of non-flammable insulation foam at all seven sides of cabinet |
Earthing Arrangement | Copper earthing bar (on one inner side of the cabinet) |
Fan | There are top Fan housing unit for 4 fan position (There is Fan Controller to control the FAN operation (allowed Delta T = -5 Deg C ) and to report following alarms- through Potential free NO/NC Contacts (FAN Failure, High Temp)) |
Fan CFM & Filter | 2Fans 48 V DC 100 CFM ( N+1 Config)/ Filter of suitable Grade for normal Battery Operation |
Cabinet Design Life | Modular Construction, using CRC Sheet duly powder coated to sustain outdoor life of 15 years |
