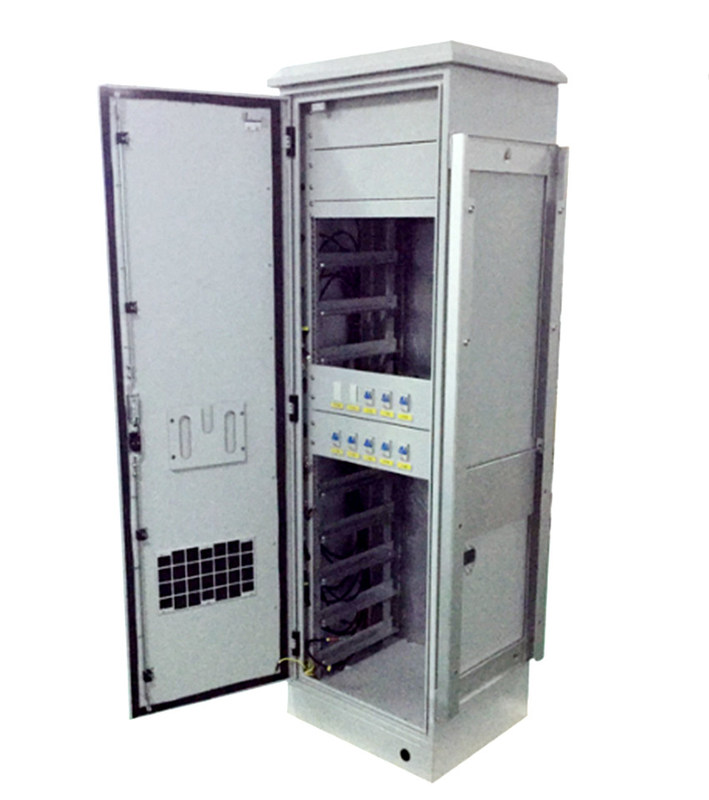

Lithium Iron Battery IP55 Outdoor Cabinet With 10 pieces Battery Modules
Outdoor Battery Cabinet
OEM battery size + 100 mm free space on both sides from battery + 200 mm from cabinet bottom + 450 mm free space on top.
Fixed side panel and other supporting member of the cabinet is 1.6mm thick CRC sheet
|Slanting Canopy type
|2.0mm thick CRC sheet
|Clear ground clearance of 300 mm from surface
|1.6mm CRC sheet
|Cable Entry Arrangement
|6x PG 29 Gland at bottom cover
|Door & Locking
|Cable laying arrangement.
|Cable laying arrangement on both inner side panel of cabinet through hooks
|Document Punch on front door with PVC Sheet to hold the Documents
|Cabinet relative humidity
|Air Circulation & Heat exhaust arrangement
|Fresh air circulation from well sized air vents situated on lower half of side panel and exhaust through fans on top through canopy.
|Proper IP 55 Sealing kit should be used for sealing.
|Internal Insulation: 10mm thick and of non-flammable insulation foam at all seven sides of cabinet
|Copper earthing bar (on one inner side of the cabinet)
|There are top Fan housing unit for 4 fan position (There is Fan Controller to control the FAN operation (allowed Delta T = -5 Deg C ) and to report following alarms- through Potential free NO/NC Contacts (FAN Failure, High Temp))
|Fan CFM & Filter
|2Fans 48 V DC 100 CFM ( N+1 Config)/ Filter of suitable Grade for normal Battery Operation
|Cabinet Design Life
|Modular Construction, using CRC Sheet duly powder coated to sustain outdoor life of 15 years
