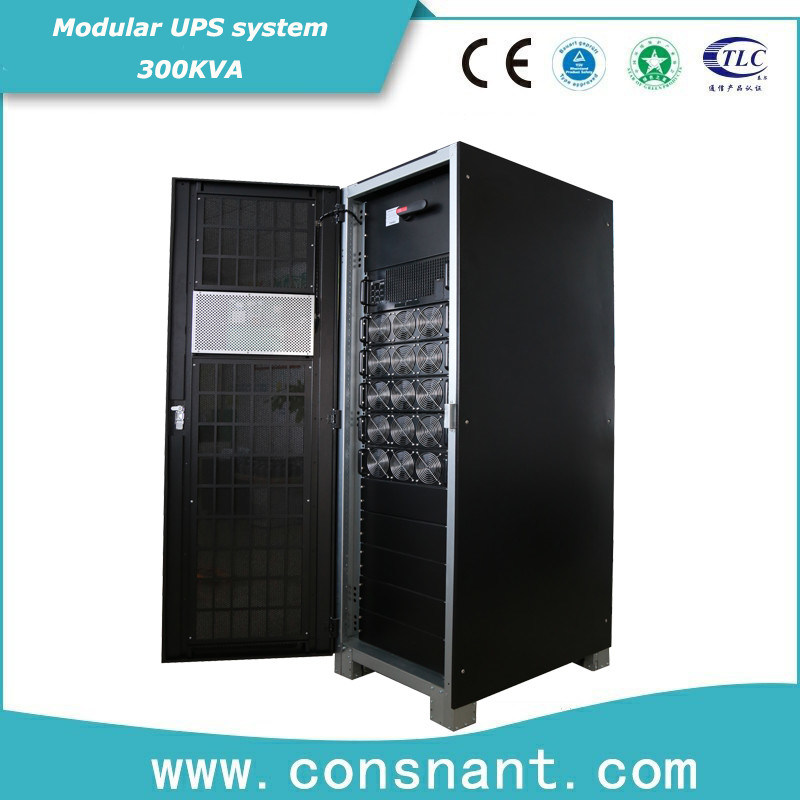

300KVA Modular UPS System High Stability Safety Protection Management Equipment

300KVA Modular UPS System High Stability Safety Protection Management Equipment

  • High Light

    commercial ups battery backup

    ,

    modular type ups

  • Input Power Factor
    Full Load>0.99 ,Half Load >0.98
  • THDi
    THDi<3%
  • Soft-start Function
    5-30s Settable
  • Application
    Backup Power
  • Output Capacity
    Large Type
  • Display
    LCD
  • Place of Origin
    Shenzhen, China
  • Brand Name
    CONSNANT
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
    CNM330 -300K
  • Minimum Order Quantity
    1 Unit
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    20days after receiving 30% deposit
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    500 pieces per month

300KVA Modular UPS System High Stability Safety Protection Management Equipment



High Overload Capacity Modular UPS System With Auto - Calibration 300KVA





Brief Information:




CNM330 series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 10KVA to 300KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, CNM330 achieves a high input power factor, low THDi Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size




UPS Application:


Servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.





Advantages:



  1.  Hot-swappable,  front access, small footprint
  2.  High efficiency, wide input voltage range,  high power density, low input THDI and unity PF
  3.  Double comversion, pure sine wave output voltage, high EMC performance
  4.  Display language variety, large blue LCD digital display for UPS status and operation
  5.  High overload capacity, battery recharge faster, self-Diagnosis, auto-calibration by Parametric set software, battery sharing, intelligent battery management, self aging
  6.  Low audible noise, record data before failure,  download history log in a easily readable



FAQ:



Q: Could you do custom-made products?

A: Yes, please show us the drawing of the goods you need, or your requirement for the products, customized UPS is available.



Q: Can you print my picture or logo onto the products?

A: Yes, OEM and ODM accepted



Q: What included in the products?

A: It includes UPS unit, user manual, 2% free spares together with shipment for urgent issue. Test certificate(optional)



Q: Nobody in our company know how to install the UPS?

A: You can get expert guides from us all the time. We can despatch engineer to assist you solve the problem if necessary (But you are requested to pay for the cost of ticket, hotel etc. ). Or you can despatch engineer(s) to our company to get training.





Technical Index:





model CNM330
Input voltage 380V/400V/415V (South American 208V option ,derating use)
Input Frequency 50/60HZ
THDI THDI<3%
Power Factor Full load >0.99 half load>0.98
Battery voltage ±240VDC(default) 12V battery 30-40PCS can be choose
Bypass overload capacity

Long term at 135% rated load, 150%<load<180% 10min ,

Load>1000% 100ms

Output voltage 380/400V415VAC 3-phase 4-wire
Voltage Accuracy ±0.5% (balanced load) ±1% (unbalanced load)
Power factor 0.9 / 1
Overload capacity 110% 1H , 125% 10mins , 150% 1min , >150% 200ms
Communication ports RS232 , RS458 , Dry contact , SNMP card , EPO , generator port
System efficiency >96% at load above 50% , >95% at load above 25%

(Optional South America 208V must be derating use)
