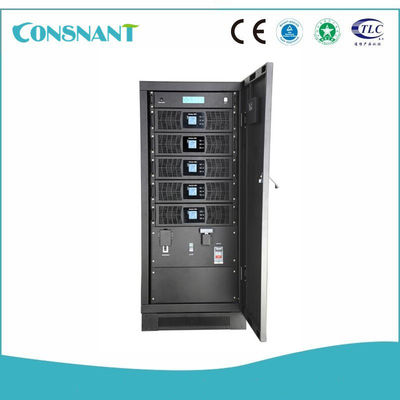

LCD Display Power Modular UPS System 50HZ 30 - 300KVA Easy Maintain

Basic Information
Place of Origin: China
Brand Name: CONSNANT
Certification: CE
Model Number: CNM331
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

CNM330 Series Three Phase Parallel Redundancy Modular Online UPS
​The CNM331 series three phases input and three phases output UPS,adopted modular design and the N+X parallel redundant technology,the capacity from 20KVA to 300KVA. This series of UPS products can almost completely solve all the power problems such as power off, high voltage, low voltage, instantaneous voltage drop, reduce the oscillation, high voltage pulse, voltage fluctuations, surge voltage, harmonic distortion, clutter interference, frequency fluctuations etc. This product is suitable for a wide range of applications, for example: computer equipment, communication systems and automation equipment etc.
Digital control.
19 inch standard cabinet can perfectly match the application environment of data center
N+X parallel redundant of power module
Control system parallel redundant
Support to use on parallel, maximum 4 cabinets
Optimized distribution bus cabinet to ensure the safety when use on parallel
Separate bypass for each power module
Common use battery bank when several UPS power modules or UPS cabinet use on parallel
Intelligent battery management
color LCD display
The UPS cabinet designed with the touch screen large LCD display, both Chinese and English language;
The power module is designed with LCD/LED display separately
Easy maintain
EPO function (the remote EPO is optional)
Intelligent management
Centralized monitoring module (hot swap)
RS232/RS485 communicate port
SNMP card(optional),
Relay card(Optional)
Technical parameter:

Model90kVA 150kVA300kVA
CapacityUPS Cabinet

30~90KVA
/27~81KW

30~150KVA
/27~135KW

30~300KVA
/27~270KW

Power Module30KVA/27KW
InputInput type3 Phase, 4 Wires + Grounding
Rated Voltage380/400V/415VAC
Voltage Range208~478VAC
Frequency Range40~70Hz
Power Factor≥0.99
Bypass RangeBypass protection highest voltage:+15%(available to choose +5%,+10%,+25%)
Bypass protection lowest voltage:-45%(available to choose -20%,-30%)
Bypass protection frequency range:±10%
Input current harmonic≤3% (100% nonlinear load)
OutputOutput type3 Phase, 4 Wires + Grounding
Rated Voltage380/400V/415VAC
Power Factor0.9
Voltage accuracy±2%
Output FrequencyAC ModeSynchronize with the input;when the main power frequency over the range of ±10%(available to choose ±1%,±2%,±4%,±5%),output frequency will be 50×(±0.2)Hz
Battery Mode(50/60±0.2%)Hz
Load Crest Ratio3:01
Transfer timeAC to Bypass: 0ms(tracking);AC to Battery:0ms
Overload AbilityLoad ≤110%,60min,≤125%,continue working 10min,≤150% continue working 1min,≥150% off
Output voltage distortion≤2% linear load
≤5% non linear load
EfficiencyNormal Mode ≥92%
InterfaceUPS cabinetRS232,RS485,2 pieces Intelligent Slot,dry contact
BatteryBattery Voltage±192V±204V±216V±228V±240V DC; (32 pcs,34 pcs,36 pcs,38 pcs,40 pcs are optional)
Charge currentUPS Cabinet45Amax75Amax150Amax
Power Module15Amax
Working Environments Operation Temperature0℃~40℃
Humidity0~95% no-codensing
Storage Temperature-25℃~55℃
Altitude< 1500m
Physical characteristics

Body Size
W×D×H

UPS cabinet600*840*1400600*840*1400600*1100*2000
(mm)Power Module443*580*131
WeightUPS cabinet157169306
(Kg)Power Module33
StandardCE,EN/IEC 62040-2,EN/IEC 62040-1-1,YD/T1095-2008
