Pure Sine Wave Modular UPS System 180 KVA High Output Load Three Phase

Basic Information
Place of Origin: Shenzhen,China
Brand Name: CONSNANT
Certification: CE,ISO9001,ISO14001
Model Number: CNM330
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Export packge standard
Delivery Time: 20 days after receiving 30% deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 set per month
Input Voltage: 380V/400V/415V (South American 208V Option ,derating Use) THDI: <3%
Power Factor: Full Load >0.99 Half Load>0.98 Output Voltage: 380/400V415VAC 3-phase 4-wire
System Efficiency: >96% At Load Above 50% , >95% At Load Above 25%
High Light:

redundant ups power supply


modular type ups

180KVA Modular Online High Output Load Ability Three Phase UPS System Pure Sine Wave High Efficiency


180KVA High Output Load Ability Modular UPS System With High Output PF

Brief Information:


CNM330 series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 30KVA to 300KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, CNM330 achieves a high input power factor, low THDi Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size




Wide Input voltage range

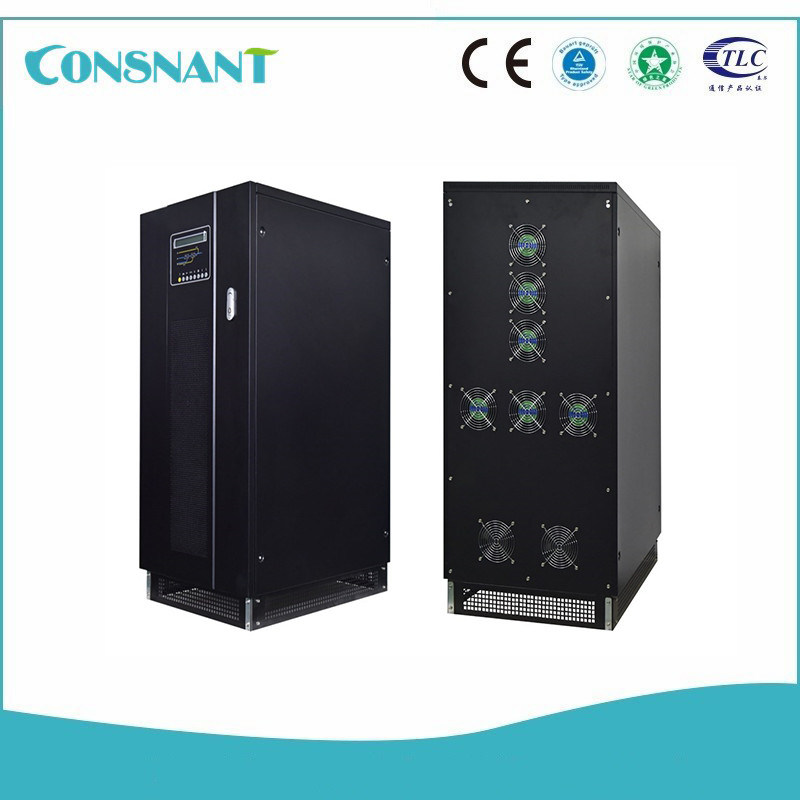

Pure Sine Wave Modular UPS System 180 KVA High Output Load Three Phase 0


Application IDC(Internet Data Center)

Computing center

ISP (Internet Service Provider )

Telecom , Finance, bank and securities , Tax

Hospital system , industrial automation

Precision equipment, etc.






model CNM330
Input voltage 380V/400V/415V (South American 208V option ,derating use)
Input Frequency 50/60HZ
Power Factor Full load >0.99 half load>0.98
Battery voltage ±240VDC(default) 12V battery 30-40PCS can be choose
Bypass overload capacity

Long term at 135% rated load, 150%<load<180% 10min ,

Load>1000% 100ms

Output voltage 380/400V415VAC 3-phase 4-wire
Voltage Accuracy ±0.5% (balanced load) ±1% (unbalanced load)
Power factor 0.9 / 1
Overload capacity 110% 1H , 125% 10mins , 150% 1min , >150% 200ms
Communication ports RS232 , RS458 , Dry contact , SNMP card , EPO , generator port
System efficiency >96% at load above 50% , >95% at load above 25%

(Optional South America 208V must be derating use)



Pure Sine Wave Modular UPS System 180 KVA High Output Load Three Phase 1
