Electrical Ups Unit Power Supply , 10 - 100 KVA Ups Uninterruptible Power Supply

Electrical Ups Unit Power Supply , 10 - 100 KVA Ups Uninterruptible Power Supply

  • High Light

    ups unit power supply

    ,

    online ups unit

  • Capacity
    10-100KVA , 8-80KW
  • Temperature
    0ºC-40 ºC
  • Humidity
    0-95%(no Condensing)
  • Storage Temperature
    -25 ºC—55 ºC
  • Altitude
    <1500m
  • Output PF.
    0.8
  • Place of Origin
    Shenzhen, China
  • Brand Name
    CONSNANT
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
    CND310
  • Minimum Order Quantity
    1
  • Price
    Negotianle
  • Packaging Details
    Export Standard Package
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    100 sets per month

Electrical Ups Unit Power Supply , 10 - 100 KVA Ups Uninterruptible Power Supply

Multi-protection Electricity UPS System With Input And Output Fully Isolated



Snapshot:


Model: 10-100 KVA
Nominal voltage: 380/400/415VAC
Nominal frequency: 50Hz/60Hz
Output power factor: 0.8

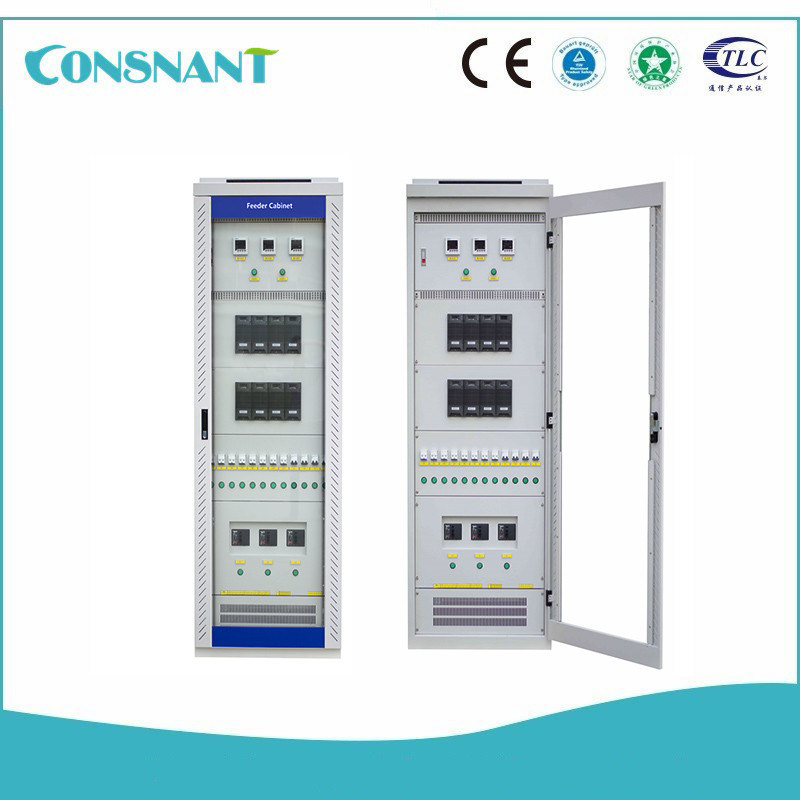

Electricity UPS System  includes:



Electrical UPS, DBW bypass stablalized cabinet, and feeder cabinet of PDU series.



Key Features:

  • Adopt full digital control technology, on-line double conversion
  • Intelligent detection and monitoring function
  • Digitally control the static switch with zero switch
  • Full isolation between input and output
  • Super low output zero earth voltage
  • DC UPS isolated with utility power completely
  • Cubical design with power standard (customization)
  • Multifunctional protection for overvoltage, under voltage, over current, short circuit and over temperature and so on.
  • Static bypass has a strong anti-overload capability
  • LCD display Chinese/English UPS status, operation instruction input voltage, output voltage, current, frequency, battery voltage, value of charge and discharge current, accident display, warning


Mainly Application:

Power system telemechanics, PTU, power line communication, power system monitoring and etc

Specification:


CND310 10KVA-100KVA
Model (KVA) 10 15 20 30 40 50 60 80 100
Rating capacity(KW) 8 12 16 24 32 40 48 64 80
Rating voltage 220V(one-phase) /380V(three phase)
AC input
Voltage range ±25%
Frequency range 50,60Hz±10%
Soft start 0-100% in 5”
Power factor 0.95(with input filter)
Bypass input
Permitted voltage range ±15%
Frequency range 50/60Hz±5%
Output
Voltage accuracy 220V±1%(steady load) 220V±3%( fluctuating load)
Permitted Frequency range 50/60Hz±0.05Hz(powered by battery)
Power factor 0.8
THD Linearload<2%, non linear load<4%
Dynamic transients <5%
Current crest ratio 3:1
Overload capacity Normal in 110% load, 125% for 10min
Efficiency Double switch:94%, ECO:98%
DC
Battery voltage 220V
Cutoff voltage 185V
Maximum discharge current 36A 55A 73A 109A 145A 181A 218A 291A 364A
Penal display
LCD

Large-screen LCD monitor with Chinese and English operation interface
Ultralong 256 event record, user-friendly analysis and management to the situation of the power supply (touch screen optional)

Unique option



  1. SNMP card
  2. Dry contact card
  3. Signal transmitter
  4. Bypass isolation and voltage regulation
  5. Increase feeder circuit (standard for 8 loops)
  6. 12 pulse rectifier
  7. The appearance of special models(standard dimension:800×600×2260mm)
Environment
Temperature 0ºC-40 ºC
Humidity 0-95%(no condensing)
Storage temperature -25 ºC—55 ºC
Altitude <1500m
