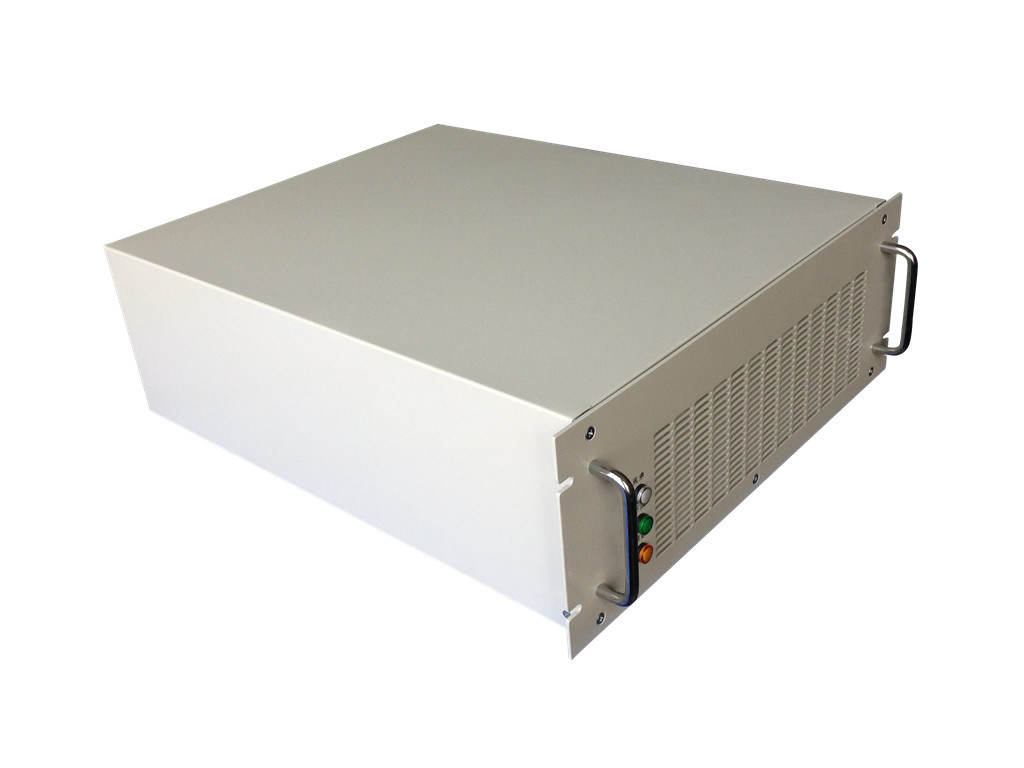

APF Active Three Phase Harmonic Filter With Touchable Button Operation , Schneider Active Harmonic Filter

Basic Information
Place of Origin: Shenzhen China
Brand Name: CONSNANT
Certification: ISO CE
Model Number: 50A - 300A
Minimum Order Quantity: 10
Packaging Details: export standard carton box
Payment Terms: L/C, T/T, Western Union

Multiple Protection APF Active Power Filter With Touchable Button Operation​






APF (Active Power Filte)is with neutral current first compensating, simultaneous compensation of Harmonic and reactive power, order of harmonic selectable compensating, system parameter settings online, RS485 standard, Modbus RTU communication protocol






Output current capacity(A) 45 75 100 150 200



Rated voltage 380×(1±15%)V
Rated Frequency 50×(1±1%)Hz
Rated topology Three-phase three-wire



orders of harmonic compensating

Within 5~13: selectable

Or within 5~25: all compensation

Compensating rate (THDILoad-THDIS)/ THDILoad ≥85%
Reactive power compensating

Determined by priority


Full response time ≤20ms
Overload Protection Automatically limited to the rated output current
Active power loss <5%Rated capacity
Noise <65dB



Operating temperature -10OC~+45OC
Storing Temperature -20OC~+65OC
Relative humidity <90%(25OC)
Working Mode Automatically or manually
Communication Interface RS485 PC interface, remote control function
Operation Display LCD monitoring panel; parameters setting online; touchable button operation; multi-parameter display
Display Accuracy ±2%FS
Expansion Ability Directly connect in parallel with the same model machine
Protection Grid over-voltage, Grid under-voltage, Grids missing phase, Grid wrong phase, the Machine over current and overheating
Protection level IP20
dimension mm(W×H×D) 600×1200×400 600×2200×600 800×2200×600
Non-standard sizes can be customized
Weight(kg) 150 200 400



Our Service:



1.  2% spares together with shipment for urgent issue.

2.  All of the necessary documents such as drawing, manual etc.

3.  We will provide the online service by mail

4.  We can despatch engineer to assist you solve the problem if necessary (But you are requested to pay      for the cost of ticket, hotel etc. ). you can despatch engineer(s) to our company to get training.

5.  One year warranty
