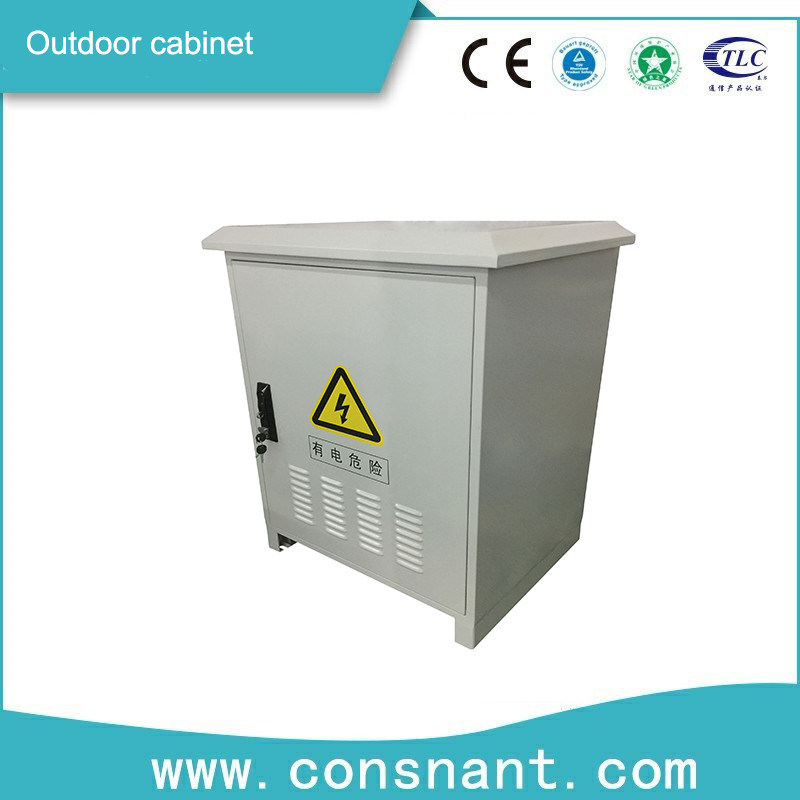

Outdoor Uninterruptible Power Supplies , High Reliability 6KVA Ups Power System

Basic Information
Place of Origin: Shenzhen, China
Brand Name: CONSNANT
Certification: CE, ISO9001, ISO14001
Model Number: CNW110
Minimum Order Quantity: 20
Price: Negotiable
Packaging Details: Export Standard Package
Delivery Time: 30days after receiving the deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 Piece per month

CNW110 Integrated Outdoor Online UPS 1-10KVA




Key Features:


Cpacity: 1-10KVA
Nominal voltage: 220/230/240VAC
Nominal frequency: 50/60Hz
Output Power factor: 0.7/0.8





Technical Specifications:





Model 1KVA 2KVA 3KVA 6KVA 10KVA
Range voltage 220/230/240VAC
Frequency 50Hz/62Hz
Input
Voltage range 115~295VAC(±3VAC) 176~297VAC(±3VAC)
Frequency Range 50Hz (46~54 Hz) ; 60Hz (56~64 Hz)
Soft Start 0~100% 5sec
Power factor 0.98
Output
Voltage Precision 220/230/240VAC(1±2%)AC
Frequency Precision 50Hz/62Hz±0.05Hz
Power factor 0.7/0.8(optional) standard 0.7
Wave Distortion Linear load<3% Non-linear load<6%
Overload capability Overload(110~150%)for 30 seconds,then automatically transfer to bypass.When load is normal,it can automatically transfer to normal mode
Crest Factor 3:1
Transfer time 0ms (AC to DC)
Battery 36VDC 72VDC 96VDC 240VDC 240VDC
Charging current 4A/8A(optional) 4A/8A(optional) 4A/8A(optional) 4.2A 4.2A
Internal Battery Caoacity (38/65/80/100AH) optional
Panel display
LED Load level/Battery level ,Battery indicator,Utility power,Inverter ,Bypass,Overload ,Fault
Communications
Communications interface RS232 SNMP card(optional)
Work Environment
Temperature -40~55ºC
Humidity 0~95%(Non-condensing
Storage Temperature -25ºC~55ºC
Elevation <1500m
Physical Characteristics
Weight(KG)N.W 85 125 125 150 150
Dimensions:(WxDxH)mm 613*640*954 650*753*1227 650*753*1227 940*940*1770 940*940*17




Reliable power Rich experience:


CNW110 series communication marginal network outdoor UPS is special for wireless communication system of outdoor micro cellular base station and design of a high-performance integrated outdoor online uninterrupted power supply system, has the very high technology advancement and practicability.

Key Features:




Application:


This UPS is commonly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature (+50 °C) / low temperature (-40 °C), severe dust, moisture,rain, mist erosion, very poor power quality (voltage longterm higher than 260V or less than 160V, frequency abnormal change) in the area.

High Reliability of the UPS System:


Using microprocessor control, directly produce highfrequency pulse width modulation wave (SPWM) control of the UPS inverter, to simplify the UPS control circuit, to improve the stability, to have more real-time UPS to quickly respond to changes in the external environment and guarantee the machine's control circuit is more simple and reliable.
Using digital control techniques, to avoid the traditional analog control temperature drift inherent defects such as hardware parameters, to ensure consistency and reliability of UPS.

Fine Dust-proof, Water-proof Features:




Environmental Adaptability:


1. Wide input voltage, avoids frequent switching to battery power because of large power grid voltage, reduce battery failure probability, adapt to the power environment in poor areas.
2. Input Frequency Range 45 ~ 55Hz, to ensure the fuel generator to access all kinds of stability to meet user requirements for using on the oil machine.

Optional Accessories:


Heat exchanger & Air Conditioner
The environment which require higher IP level, we use heat exchanger to effectively reduce the temperature of box inside and improve IP protection level .


Heater and Temperature Controller:


In response to low temperature climate impact of batteries and UPS, we adopt ajustable heating device to ensure the UPS and battery life of normal use.
