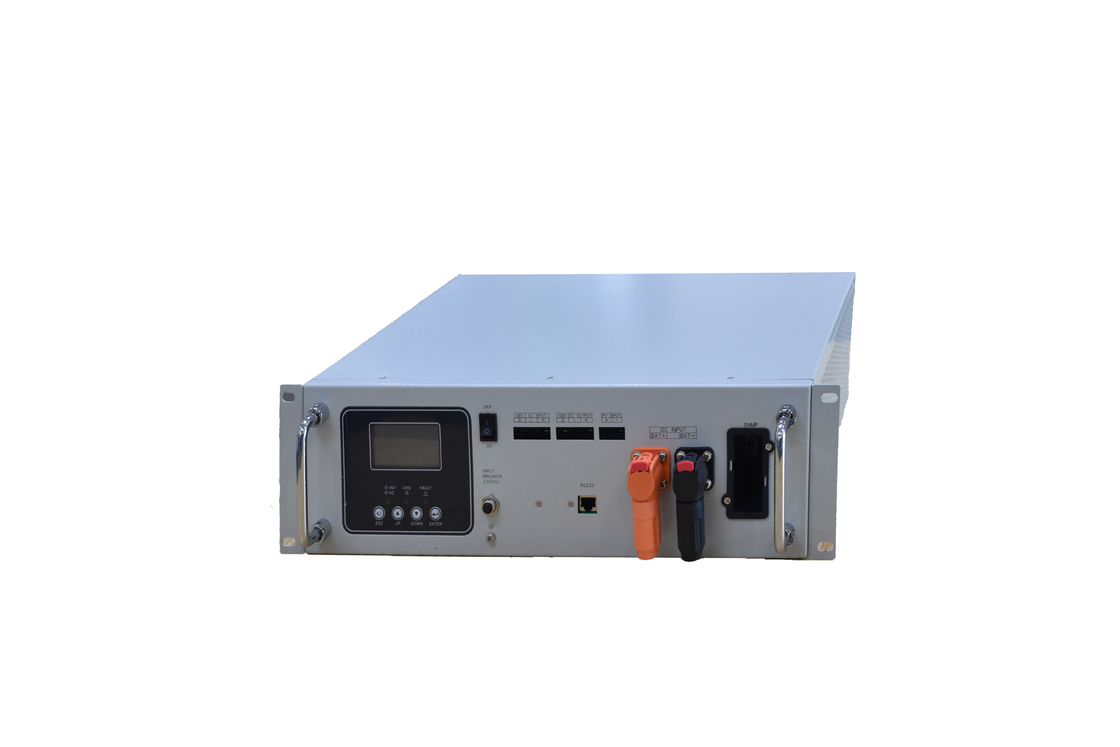

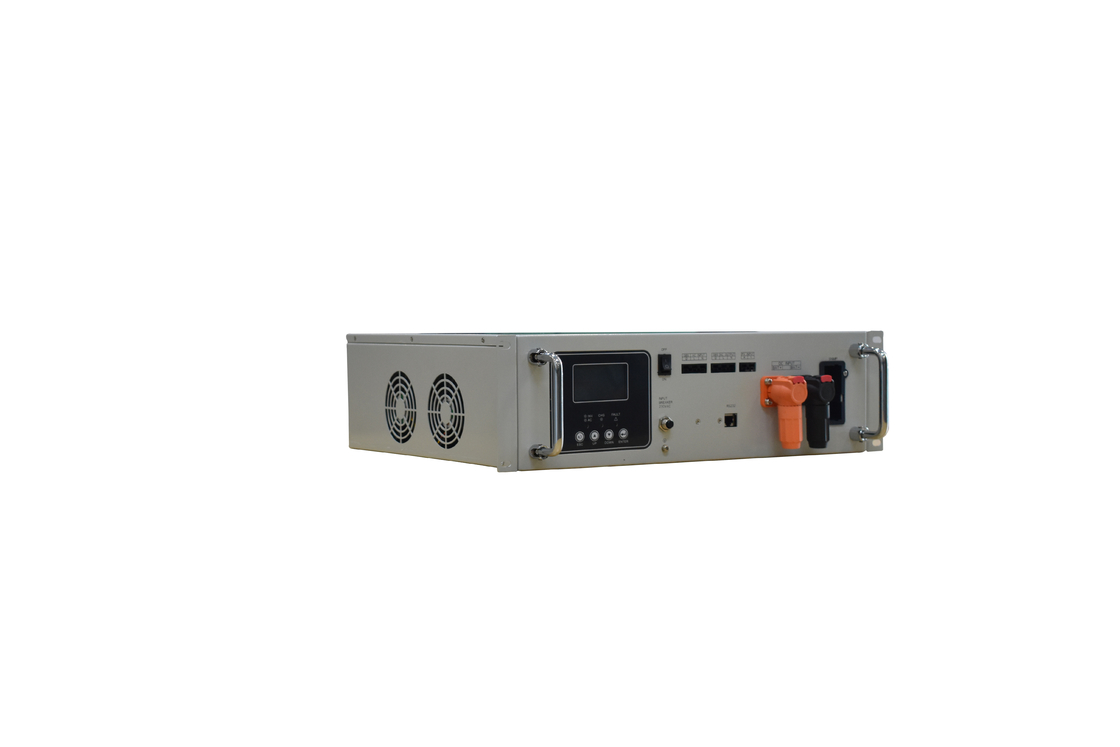

Rack-Mounted Inverter Control Machine CNR110 5500-48 5.5KW 48VDC

INTRODUCTION

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size.

Features

Configurable battery charging current based on load requirements.

Configurable Mains/Solar Charger priority via LCD setting.

Configurable mains input voltage range for home appliances and personal computers via load requirements.

Remote monitor function via SNMP Card(optional).

Basic System Architecture

The following illustration shows basic application for this solar inverter. It also includes following devices to have a complete running system:

Generator or Mains.

PV modules.

Consult with your system integrator for other possible system architectures depending on your requirements.

This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.

Communication Connection

Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer and follow on-screen instruction to install the monitoring software. For the detailed software operation, please check user manual of software inside of CD.

SPECIFICATIOS

Model	3.5KW	5.5KW
Input Voltage Waveform	Sinusoidal (utility or generator)
Nominal Input Voltage	230Vac
Low Loss Voltage	170Vac±7V (UPS); 90Vac±7V (Appliances)
Low Loss Return Voltage	180Vac±7V (UPS); 100Vac±7V (Appliances)
High Loss Voltage	280Vac±7V
High Loss Return Voltage	270Vac±7V
Max AC Input Voltage	300Vac
Nominal Input Frequency	50Hz / 60Hz (Auto detection)
Low Loss Frequency	40±1Hz
Low Loss Return Frequency	42±1Hz
High Loss Frequency	65±1Hz
High Loss Return Frequency	63±1Hz
Output Short Circuit Protection	Circuit Breaker
Efficiency (Mains Mode)	> 95%
	( Rated load, battery full charged )
Transfer Time	10ms typical(UPS)； 20ms(Appliances)
Output power derating: When AC input voltage drops to 170V, the output power will be derated.
