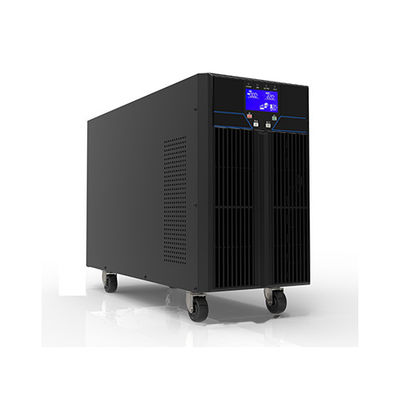

DSP PFC Online High Frequency UPS 10-20KVA 220V Medical 3 Phase
-
High Light
20KVA Online High Frequency UPS
,DSP PFC Online High Frequency UPS
,220V Industrial Power Supply UPS
-
ColorBlack Or Depending
-
Topology2 Conversion
-
Phase3
-
Capacity10-20KVA
-
Rated Voltage208/220/230/240VAC
-
Frequency Range40HZ-70HZ
-
Place of OriginShenzhen, China
-
Brand NameCONSNANT
-
CertificationCE, ISO9001, ISO14001
-
Model NumberCNH110
-
Minimum Order Quantity10
-
PriceNegotiable
-
Packaging DetailsExport Standard Package
-
Delivery Time5-7 days for sample order, 7-15 days for mass production
-
Payment TermsT/T, L/C, Western Union
-
Supply Ability50000 pieces per year
DSP PFC Online High Frequency UPS 10-20KVA 220V Medical 3 Phase
CNH110 HIGH FREQUENCY ONLINE UPS 10-20KVA 3 PHASE
Key Feature:
Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues
DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply
Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life
Best Loading Capability
Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application
Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.
High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer
Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion
Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system
Specification Refer:
| Model | 3C10K | 3C10KS | 3C15K | 3C15KS | 3C20K | 3C20KS | |
| Capacity | VA/W | 10KVA/9KW | 15KVA/13.5KW | 20KVA/18KW | |||
| Topology | Double Conversion Online UPS | ||||||
| Phase | Single Phase Input Single Phase Output OR 3 Phases Input Single Phase Output |
||||||
| Mains Input | Wiring | Single Phase L/N+PE OR 3 Phases (L1,L2,L3,N)/N+PE |
|||||
| Rated Voltage | 208/220/230/240VAC | ||||||
| Voltage Range | Line-Neutral 90~300VAC Line-Line 150~500VAC |
||||||
| Frequency Range | 40Hz-70Hz | ||||||
| Input Power Factor | ≥0.99 | ||||||
| AC Output | Wiring | L/N+PE | |||||
| Output Voltage | 208/220/230/240VAC | ||||||
| Voltage Regulation | ±1% | ||||||
| Output Frequency | 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) | ||||||
| Waveform | Pure Sine Wave | ||||||
| Distortion(THDV%) | <2%(Linear Load) | ||||||
| <7%(None-Linear Load) | |||||||
| Over load capacity | 10Min@105%~125%Rated Load 60Sec.@125%~150%Rated Load 0.5Sec.@>150%Rated Load |
||||||
| Efficiency | AC/AC Mode | >94% | |||||
| DC/AC Mode | >92% | ||||||
| Battery & Charge |
Rated Battery Voltage ① | 192VDC Internal |
192/240VDC External |
192VDC Internal |
192/240VDC External |
192VDC Internal |
192/240VDC External |
| Battery Capacity | 12V/7AH x 16pcs | External Battery Depends | 12V/7AH x 32pcs | External Battery Depends | 12V/7AH x 32pcs | External Battery Depends | |
| Backup Time | >6mins @ Half Load | >6mins @ Half Load | >6mins @ Half Load | ||||
| Charging Current | Standard Model with Internal Battery:1A Long Backup Time Model :4A |
||||||
| Physical | Chassis Style | RACK / Tower (separated) | |||||
| Tower Dimension ② |
3C10kS: 190(W)X340(H)x535(D)mm 3C15/20kS: 238(W)X528(H)x540(D)mm |
||||||
| Rack Dimension | 3C10kSR: 438mm(W) x 132mm(3U)(H) x 500mm(D) 3C15kSR/3C20kSR:4U 438(W)x176(H)x530(D)MM |
||||||
| Weight (kg) | 8.9 | 4.2 | 14 | 5.9 | 21.6 | 8.3 | |
| HMI | LCD DISPLAY | Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status | |||||
| Standards Communication | 1. RS232 PORT 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown |
||||||
| Optional Extension Card | CMC MODBUS Card, USB Card, Relay Card (Needs assembly according to order request before shipping) |
||||||
| Operating Environment Endurance |
Temperature range | -10~50oC | |||||
| Relative Humidity | 0-98%(Non-condensing) | ||||||
| Acoustics Noise | <60dB @ 1 meters | ||||||
Remark:
① Battery Capacity and voltage is open to customization
② Dimension might vary for different bezel
③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order
④ More parameter customization,please contact sales representative
