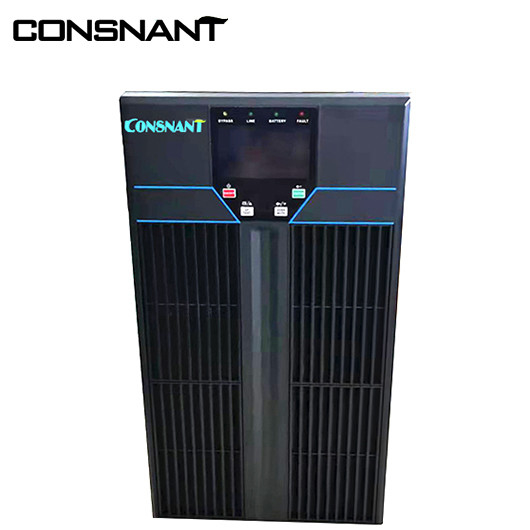

Telecom Apply Black Power Supply UPS High Frequency Online UPS 6KVA

Telecom Apply Black Power Supply UPS High Frequency Online UPS 6KVA

  • High Light

    Telecom Black Power Supply UPS

    ,

    40HZ High Frequency Online UPS

    ,

    High Frequency Online UPS 6KVA

  • Color
    Black Or Depending
  • Capacity
    6KVA
  • Rated Voltage
    208/220/230/240VAC
  • Frequency Range
    40HZ-70HZ
  • Efficiency
    AC/AC Mode:93% DC/AC Mode:91%
  • Waveform
    Pure Sine Wave
  • Place of Origin
    Shenzhen, China
  • Brand Name
    CONSNANT
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
    CNH110
  • Minimum Order Quantity
    10
  • Price
    Negotiable
  • Packaging Details
    Export Standard Package
  • Delivery Time
    5-7 days for sample order, 7-15 days for mass production
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    50000 pieces per year

Telecom Apply Black Power Supply UPS High Frequency Online UPS 6KVA

CNH110 HIGH FREQUENCY ONLINE UPS 6KVA

Key Feature:

Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues

DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply

Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life

Best Loading Capability
Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application

Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.

High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer

Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion

Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system

Specification Refer:

ModelC6KC6KS
CapacityVA/W6KVA/5.4KW
TopologyDouble Conversion Online UPS
PhaseSingle Phase Input Single Phase Output
Mains InputWiringL/N+PE
Rated Voltage208/220/230/240VAC
Voltage Range90~300VAC
Frequency Range40Hz-70Hz
Input Power Factor≥0.99
AC OutputWiringL/N+PE
Output Voltage208/220/230/240VAC
Voltage Regulation±1%
Output Frequency50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
WaveformPure Sine Wave
Distortion(THDV%)<2%(Linear Load)
<7%(None-Linear Load)
Over load capacity10Min@105%~125%Rated Load
60Sec.@125%~150%Rated Load
0.5Sec.@>150%Rated Load
EfficiencyAC/AC Mode>93%
DC/AC Mode>91%
Battery
&
Charge
Rated Battery Voltage ①144VDC
Internal
192/240VDC
External
Battery Capacity12V/7AHExternal Battery Depends
Backup Time>6mins @ Half Load
Charging CurrentStandard Model with Internal Battery:1A
Long Backup Time Model :4A
PhysicalChassis StyleRACK / Tower (separated)
Tower Dimension
C6KS, C8KS, C10kS: 190(W)X340(H)x534(D)mm
C6K:190(W)X360(H)x534(D)mm
C8K, C10K: 190(W)X456(H)x534(D)
Rack DimensionUPS: 438mm(W) x 88mm(2U)(H) x 500mm(D) without Internal Battery
Battery Pack: 438mm(W) x 88mm(2U)(H) x500mm(D)
Weight (kg)8.94.2
HMILCD DISPLAYInput Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards Communication1. RS232 PORT
2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
Optional Extension CardCMC MODBUS Card, USB Card, Relay Card
(Needs assembly according to order request before shipping)
Operating Environment
Endurance
Temperature range-10~50oC
Relative Humidity0-98%(Non-condensing)
Acoustics Noise<55dB @ 1 meters


Remark:
① Battery Capacity and voltage is open to customization
② Dimension might vary for different bezel
③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order
④ More parameter customization,please contact sales representative
