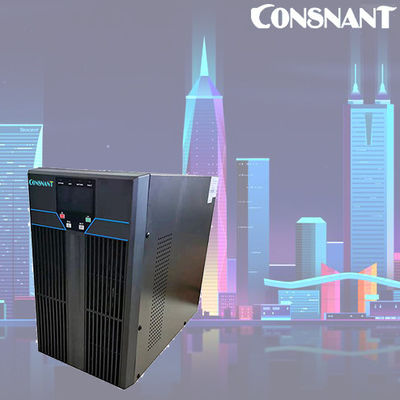

Networks Power Supply UPS 2KVA Online UPS System With Pure Sine Wave

Networks Power Supply UPS 2KVA Online UPS System With Pure Sine Wave

  • High Light

    2KVA Networks Power Supply UPS


    240VAC Networks Power Supply UPS


    Sine Wave Online UPS System

  • Color
    Black Or Depending
  • Weight
    14kg / 5.9kg
  • Capacity
  • Rated Voltage
  • Frequency Range
  • Waveform
    Pure Sine Wave
  • Place of Origin
    Shenzhen, China
  • Brand Name
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Export Standard Package
  • Delivery Time
    5-7 days for sample order, 7-15 days for mass production
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    50000 pieces per year

Networks Power Supply UPS 2KVA Online UPS System With Pure Sine Wave



Key Feature:


Zero Transfer time

True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues


DSP Digital Control Based

Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply


Ultra Wide Input Mains range

Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life


Best Loading Capability

Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application


Genset Compatible

Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.


High Input power factor

Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer


Reliable design

Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion


Open to customization

Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system


Specification Refer:

Model C2K C2KS
Capacity VA/W 2KVA/1.6KW
Topology Double Conversion Online UPS
Phase Single Phase Input Single Phase Output
Mains Input Wiring L/N+PE
Rated Voltage 208/220/230/240VAC
Voltage Range 90~300VAC
Frequency Range 40Hz-70Hz
Input Power Factor ≥0.99
AC Output Wiring L/N+PE
Output Voltage 208/220/230/240VAC
Voltage Regulation ±1%
Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform Pure Sine Wave
Distortion(THDV%) <2%(Linear Load)
<7%(None-Linear Load)
Over load capacity 1Min@105%~125%Rated Load
Efficiency AC/AC Mode 89%
DC/AC Mode 87%
Rated Battery Voltage ① 48VDC
Battery Capacity 12V/7AH External Battery Depends
Backup Time >6mins @ Half Load
Charging Current Standard Model with Internal Battery:1A
Long Backup Time Model :4A
Physical Chassis Style RACK / Tower (separated)
Tower Dimension
1KS: 145(W)X220(H)x250(D)mm
1K, 2KS: 145(W)X220(H)x318(D)mm
3K/3KS: 190(W) x 318(H) x 368(D)mm
Rack Dimension 3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery
1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D)
Weight (kg) 14 5.9
HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards Communication 1. RS232 PORT
2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
Optional Extension Card CMC MODBUS Card, USB Card, Relay Card
(Needs assembly according to order request before shipping)
Operating Environment
Temperature range -10~50oC
Relative Humidity 0-98%(Non-condensing)
Acoustics Noise <55dB @ 1 meters



① Battery Capacity and voltage is open to customization

② Dimension might vary for different bezel

③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order

④ More parameter customization,please contact sales representative
