Storage Capacity 15KWH Energy Storage System Smaller Size Better For Home Use
This energy storage system can provide power to connected loads by utilizing PV power,
utility power and battery power and store surplus energy generated from PV solar
modules for use when needed. When the sun has set, energy demand is high, or there is
a black-out, you can use the energy stored in this system to meet your energy needs at
no extra cost. In addition, this energy storage system helps you pursue the goal of
energy self-consumption and ultimately energy-independence.
Depending on different power situations, this energy storage system is designed to
generate continuous power from PV solar modules (solar panels), battery, and the utility.
When MPP input voltage of PV modules is within acceptable range (see specification for
the details), this energy storage system is able to generate power to feed the grid (utility)
and charge. This energy storage system is only compatible with PV module types of
single crystalline and poly crystalline. Do not connect any PV array types other than
these two types of PV modules to the energy storage system. Do not connect the
positive or negative terminal of the solar panel to the ground. See Figure 1 for a simple
diagram of a typical energy storage system.

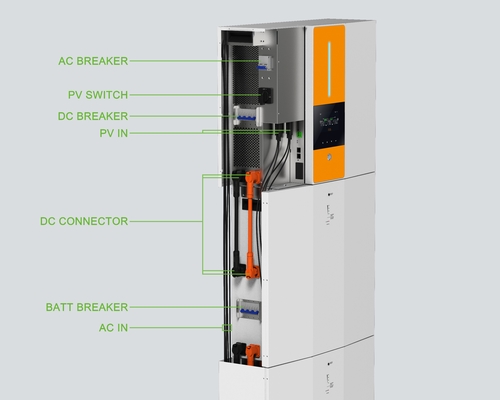

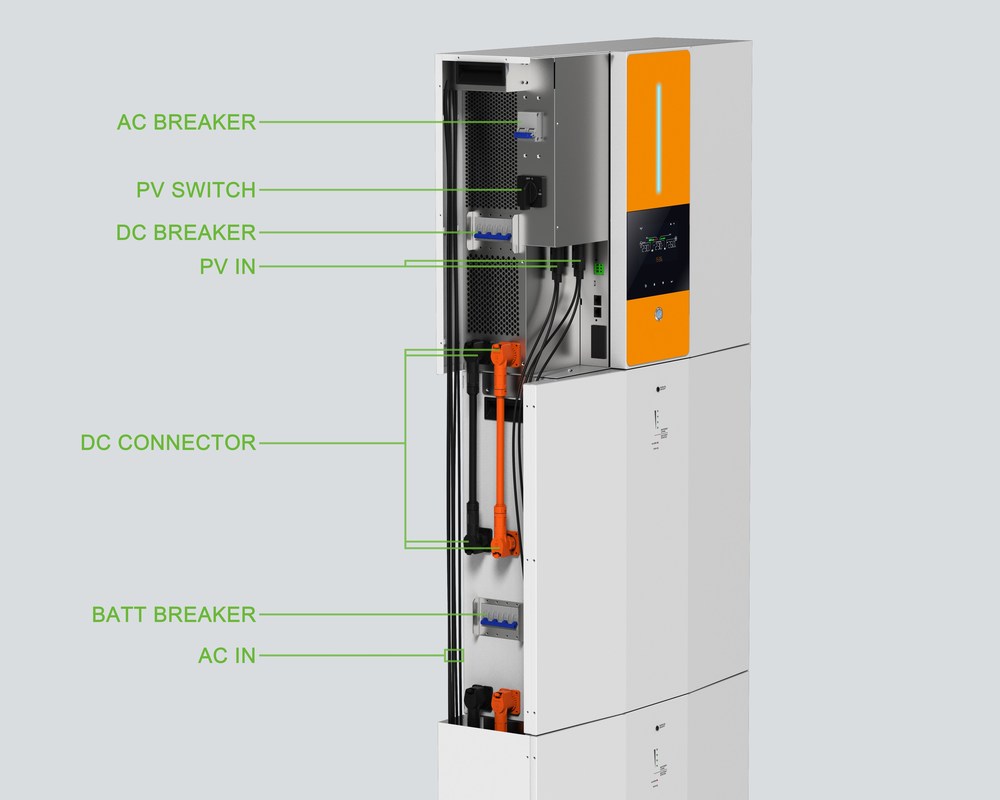

The Home Ess electrical inter face provides a simple connection to any home or bulding.It is revolutionary compact
design achieves market-leading energy density and is easy to install.enabling owners to quickly realize the benefits
of reliable,clean power.
DC input Battery Box
Max.PV input power 6500W Number of battery modules 2
Max.PV input voltage 370V Storage capacity 15KWH
MPPT voltage range 100-500V Battery voltage range 42-57V
Battery input and output Battery Module
Nominal battery voltage 51.2V Module capacity 7.5KWh
Battery voltage range 42-57V Module dimensions (W × H × D) T214*W550*H621mm
Max.charging current 80A
Max.discharging current 150A
Dimension(W × H × D)
