High Light
Touch Screen Bidirectional Battery Inverter
,630KW Bidirectional Battery Inverter
,IP20 Solar Charger Battery Inverter
-
Apparent Power55-693kva
-
Rated Power50-630kw
-
Rated Voltage400V
-
Rated Current72-909A
-
Rated Frequency50/60HZ
-
THDI<3%
-
AC Connection3/N/PE
-
Overload Capacity110%-10min，120%-1min
-
Battery Voltage600-700VDC
-
DC Voltage Range500-900V
-
Max. Efficiency95.5-98.5%
-
Protection DegreeIP20
-
Weight450-900kg
-
DisplayTouch Screen
-
Place of OriginChina
-
Brand NameCONSNANT
-
CertificationCE,ISO9001/ISO14001
-
Model NumberRunner series
-
Minimum Order Quantity1Uint
-
PriceNegotiable
-
Packaging Detailsstandard export package
-
Delivery Time15 days after receiving 30% deposit
-
Payment TermsL/C, T/T,,
-
Supply Ability5000 pieces per month

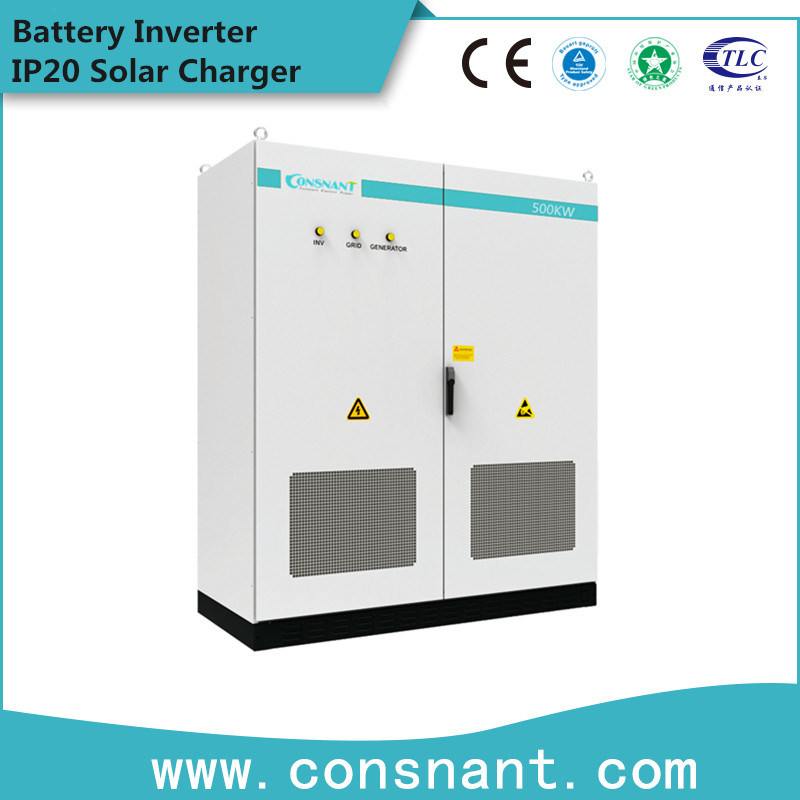

630KW Touch Screen Bidirectional Battery Inverter IP20 Solar Charger
Bidirectional battery inverter from 50KW to 630KW,can be used alone or with solar charge and other accessories
Features
- Flexible Configuration
Configured with solar charge controller, bypass cabinet or stand alone.
- Programmable working mode
Pak-shaving, back-up, use the system however you want it
- Scalable
Applicable in MW level system by paralleling multiple units
- Touchscreen LCD
More convenient for parameter setting and maintenance
- Dry contact output
Supports remote control of DG
Specification
| CNS SPS50 | CNS SPS100 | CNS SPS 250 | CNS SPS 500 | CNS SPS 630 |
| AC(grid-connected) | |||||
| Apparent power | 55kva | 110kva | 275kva | 550kva | 693kva |
| Rated power | 50KW | 100KW | 250KW | 500KW | 630KW |
| Rated voltage | 400V | ||||
| Rated current | 72A | 144A | 361A | 722A | 909A |
| Voltage rated | 310V-450V | ||||
| Rated frequency | 50/60HZ | ||||
| Frequency range | 45-55/55-65HZ | ||||
| THDI | <3% | ||||
| PF | 0.8 lagging-0.8leading | ||||
| AC connection | 3/N/PE | ||||
| AC(Off-grid) | |||||
| Apparent power | 55KVA | 110KVA | 275KVA | 550KVA | 693KVA |
| Rated power | 50KW | 100KW | 250KW | 500KW | 630KW |
| Rated voltage | 400V | ||||
| Rated current | 72A | 144A | 361A | 722A | 909A |
| THDU | <=2%linear | ||||
| Rated frequency | 50/60HZ | ||||
| Overload capacity | 110%-10min 120%-1min | ||||
| DC(battery and PV) | |||||
| Rated power | 50KW | 100KW | 250KW | 500KW | 630KW |
| Current regulation | ±1% | ||||
| Voltage regulation | ±1% | ||||
| Voltage ripple | <3% | ||||
| Current ripple | <2% | ||||
| Rated voltage | 600VDC | 600VDC | 600VDC | 700VDC | 700VDC |
| Voltage range | 500V-820V | 600V-900V | |||
| Rated current | 84A | 167A | 417A | 714A | 900A |
| General information | |||||
| Max.efficiency | 95.5% | 97.1% | 97.3% | 98.5% | 98.5% |
| Protection degree | IP20 | ||||
| Noise emission | <65db(A)@1m | ||||
| Environment teperature | -25℃…+55℃ | ||||
| Cooling | Forced-air | ||||
| Relative humidity | 0-95%non-condensing | ||||
| Max.altitude | 6000m(derate over 3000m) | ||||
| Dimension(W*H*D) | 600*1630*800mm | 1100*1890*850mm | 1600*2080*850mm | 1200*1900*800mm | 1200*1900*800mm |
| Weight | 450kg | 820kg | 1465kg | 900kg | 900kg |
| Build-in transfer | Yes | Yes | Yes | NO | NO |
| Transfer between on/off grid | Manual(default)Automatic(optional)<=10ms | ||||
| Communication | |||||
| Display | Touch screen | ||||
| Communication interface | RS485/CAN | ||||
| Certificate | CE,MEA,PEA,EN,IEC | ||||
