High Light
3kva Battery Power Storage Systems
,3.3KW Battery Storage Systems
-
Max.PVvoltage550VDC
-
Rated Power3kva
-
Rated Frequency50/60Hz
-
MPPT Voltage Range150VDC-500VDC
-
Place of OriginShenzhen,China
-
Brand NameCONSNANT
-
CertificationCE, ISO9001, ISO14001
-
Model NumberHESS
-
Minimum Order Quantity1 Unit
-
PriceNegotiable
-
Packaging DetailsExport Standard Package
-
Delivery Time20 days after receving 30% deposid
-
Payment TermsL/C, T/T, Western Union
-
Supply Ability500 set per month

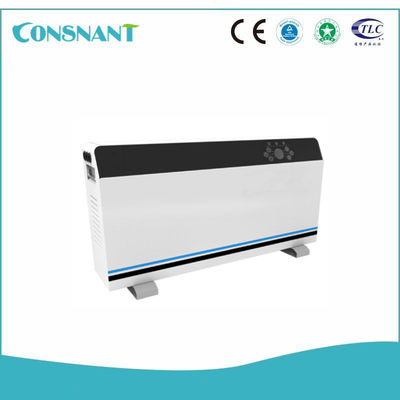

3kva 3.3KW Hybrid Lithium Batteries Storage System
Single-phase Energy Storage System (ESS)
Feature
- All in one design, integrated LFP Battery;
- Hybrid work mode
- Easy installation and maintenance, can meet the demand of different clients DIY,
- APP for ISO/Android.
- On/Off-Grid Functions;
- Back-up/Bypass Functions;
- Island Function, Battery Capacity Expandable.
- Multi protection and warning system, safe and reliable;
- Comply with TUV,SAA,CE;
- Extensively tested Lithium Batteries.
Specification
| Model No. | Unit | Unit R | |
| PV Data (For DC Coupled) | |||
| Max. PV Input Power | 3KW | / | |
| Max. PV Vpltage | 550VDC | / | |
| MPPT Voltage Range | 150VDC-500VDC | / | |
| No. of MPPT Trackers/Max.Input Current | 1/1*20A | / | |
| On Grid Inverter Side Data (For AC Coupled) | |||
| Rated Voltage | / | 220V-240Vac | |
| Rated Frequency | / | 50/60Hz | |
| Rated Input Current | / | 14.3A | |
| Rated Input Power | / | 3.3KW | |
| AC Data | |||
| Rated Power | 3kva | ||
| Continuous Ouput Power | Back-up(MAX) | 3kva(3.3kva) | |
| Bypass(MAX) | 3kva(9kva) | ||
| Overload Capacity (Off-Grid Mode) | 3.3KW(normal running),4.5KW(5s),6KW(100ms) | ||
| Rated AC Voltage(Input/Ouput) | 220V-240Vac/220V-240Vac | ||
| Rated Frequency | 50/60Hz | ||
| Grid Input | Max Current | 42.9A | |
| Max Power | 9KVA | ||
| Grid Output | Max Current | 22A | |
| Max Power | 4.6KW | ||
| THD | Inverter Voltage | 2% | |
| On-Grid Current | 3%% | ||
| AC Input Voltage Range | 180-270Vac | ||
| Max.Efficiency | 94.30% | ||
| Output Wave | Pure Sine Wave | ||
| Battery Data | |||
| Battery Voltage | Rated | 48Vdc | |
| Range | 44.5-54Vdc | ||
| Charging Voltage | 44.5-54Vdc | ||
| Battery Type | LiFePO4(standard)/Others (optional) | ||
| Battery Capacity | 100AH | ||
| Max.Discharging Power | 3200W | ||
| Max.Charging Current(capacity related) | 5-50A(can be configured) | ||
| Charging Method | 3 Steps charging | ||
