High Safety Solar Power Inverter 48VDC Nominal Input Voltage LIFEPO4 Battery

High Safety Solar Power Inverter 48VDC Nominal Input Voltage LIFEPO4 Battery

  • High Light

    solar power 3 phase inverter

    ,

    solar panel dc to ac inverter

  • Voltage Range Of Battery Group
    44V-57.6V
  • Rated Allowable Maximum Discharge Current
    200A
  • Discharge Termination Voltage
    40
  • Nominal Input Voltage
    48VDC
  • Output Voltage
    110V-220VAC
  • Overload Ability(10min)
    110%
  • Place of Origin
    Shenzhen,China
  • Brand Name
    CONSNANT
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
    ESS
  • Minimum Order Quantity
    1 Unit
  • Price
    Negotiable
  • Packaging Details
    Export Standard Package
  • Delivery Time
    20 days after receving 30% deposid
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    500 set per month

High Safety Solar Power Inverter 48VDC Nominal Input Voltage LIFEPO4 Battery

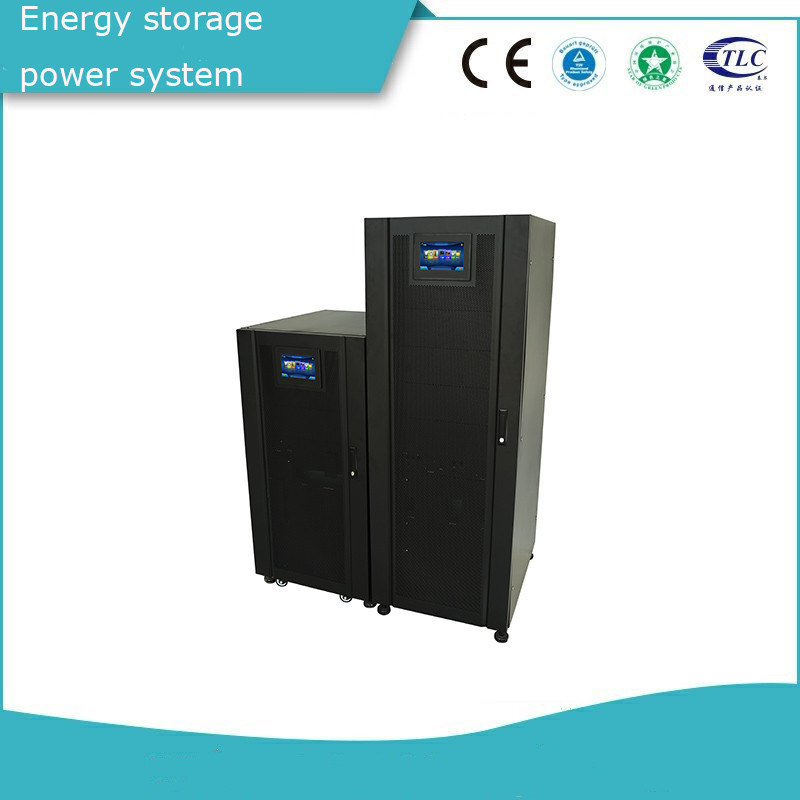

Litium motor cabinet energy storage system

The lithium motor cabinet energy storage system consists of high-performance lithium battery,BMS battery management system.photovoltaic charging device,inverter device,and corresponding combination to form a multi-capacity,power,functional energy.





Features

  • Modular design and it will be easy installation and maintenance.
  • High performance and high safety lithium iron phosphate battery has long cycle life,safety,energy saving and environment protection.
  • Using intelligent management technology to extend battery life.
  • According to customer customization,it can be connected to the grid and run off the network,supporting multi machine parallel operation.
  • Micro grid control functions can be used as a micro grid control center to coordinate and match photovoltaic chargers,inverters and other power generation equipment according to load requirments.
  • With perfect overload protection,over temperature protection,output short circuit protection,input under-voltage protection,input over-voltage protection and other functions,stable performance,high product safety and reliability.
  • It desighed with the LCD display,easy to monitor and management.



Operation Principle:

     Energy storage in power system including solar panels,inverter(for AC and DC conversion),and provide backup power for the main electrical backup lines.Household electricity demand different choice of different components.





Parameter:

Battery cell
Rated capacity 50KW 1000AH 75KW 1600AH 100KW 2100AH
Battery type lIFEPO4 battery
Model of cell 302V 65A Square aluminum shell
Battery group array 16s15p 16s23p 16s30p
Voltage range of battery group 44V-57.6V
Cycle life 4000 cycles at 80%DOD
Protection Short Circuit Protection ,Over Charge Protection,Over Discharge Protection,Reverse Polarity Protection,Cell Over Voltage,Cell Under Voltage and Over Temperature
Charge
Battery charge temperature 0-50℃
Maximum charge voltage 50±0.5V
Rated charge voltage 58.4±0.4v
Nominal charge current 200A 300A 380A
Discharge
Battery working temperature `-20℃~60℃
Allowable maximum discharge current 250A 1min 250A 1min 250A 1min
Rated allowable maximum discharge current 200A
Discharge termination voltage 40
Self Discharge Rate Less than 3% per month (nominal temperature)
Inverter
Type Stand-alone Inverter(Off Grid Inverter) Single phase output transformer or galvanic isolation
Rated power 5.0kw7.5kw10kw Remark:AC output power continuously 5.0KW/7.5KW/10KW at electrical load type:Unity power factor(pf=1)
Nominal Input Voltage 48VDC
Output voltage 110V-220VAC
Output voltage regulation Less than 5% at steady state load
Total harmonic distortion(THDv) Less than 4%when the electrical load is 0.8 lagging power factor
Maximum surge power 200% of nominal power
Maximum running current 75
Overload ability(10min) 110%
AC input frequency range 50HZ/60HZ(automatic tracking)
Output efficiency 50HZ/60HZ±0.3HZ
Wave form ≥85%
Protection Pure sine wave form
Communication Overload,Short Circuit,Over Input Voltage,DC Reverse Polarity,Battery Low Voltage Cut Off(automatic reconnect)and Over Temperature
Solar Charge Controller
Max PV input power at STC 5KW 7.5KW 10KW
(Standard Test Condition)
Output voltage charger to battery 48VDC 48VDC 48VDC
MPPT(Mximum power point tracking)charger at STC 5KW 7.5KW 10KW
Charger and Discharge controller as SOC(Stage of Charge)
Charge Controller can communicate with BMS of all LFP battery and can control,setting,display data to LCD display
Battery Reverse Polarity Protection
