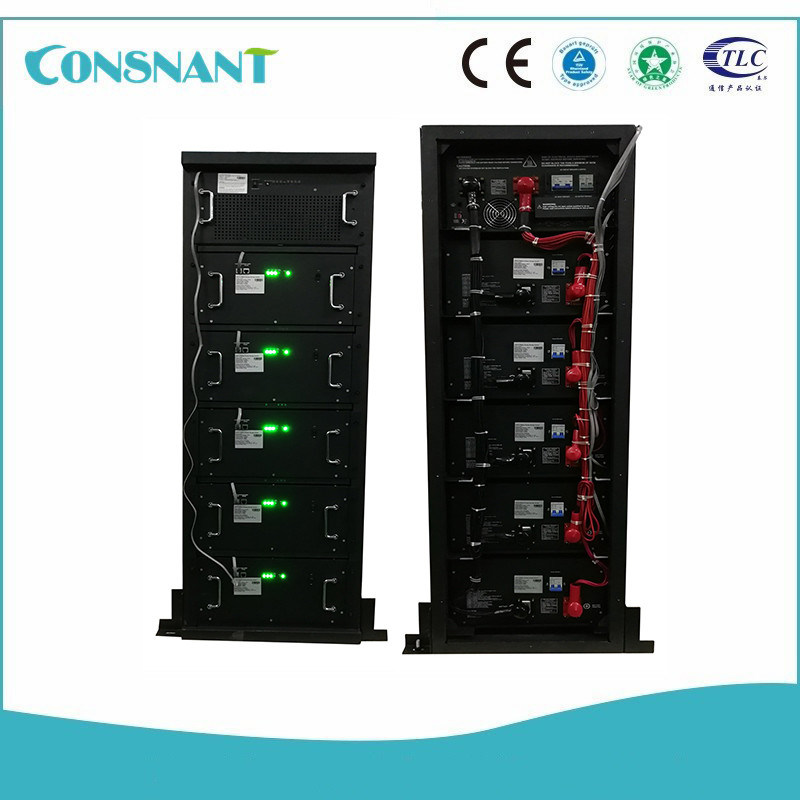

Long Cycle Life Solar Cell Inverter 200A Rated Charge Current 25.6KWH

Long Cycle Life Solar Cell Inverter 200A Rated Charge Current 25.6KWH

  • High Light

    solar power 3 phase inverter


    solar panel dc to ac inverter

  • Rated Energy
  • Battery Cell
    3.2V50AH 160PCS
  • Rated Charge Current
  • Storage Humidity
  • Rated Capacity
  • Output Voltage Range
  • Rated Discharge Current
  • Discharge Cut-off Voltage
  • Place of Origin
  • Brand Name
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
    25.6KWH ESS
  • Minimum Order Quantity
    1 Unit
  • Price
  • Packaging Details
    Export Standard Package
  • Delivery Time
    20 days after receving 30% deposid
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    500 set per month

Long Cycle Life Solar Cell Inverter 200A Rated Charge Current 25.6KWH

Solar Power Inverter&AC charger Energy Storage System automatic calibration and provide backup power

25.6KWH LifePo4 Battery 12KW Inverter&AC charger 80A MPPT Solar charger

  • 160pcs 50Ah LiFePO4 battery,5*5KWH packs parallel
  • 51.2Vdc 500Ah rated capacity
  • Long cycle life 3500 times at least on 80%DOD
  • Customized charger make system life maxmizatin
  • High reliability intelligent BMS
  • Unique automatic calibration active balancing tachnology BMS system
  • 51.2Vdc voltage output,suitable for home energy storage system,communication station and other application
  • Standard CAN&RS485 communication port,can meet the requirement of several packages to connect in parallel,Master&Slave relationship,Monitor and otherprolongation functions.

Operation Principle:

     Energy storage in power system including solar panels,inverter(for AC and DC conversion),and provide backup power for the main electrical backup lines.Household electricity demand different choice of different components.


Technical Specifications:

Basic Specification
NO ITEMS Description
Normal specification
1 Rated Voltage 51.2V
2 Rated Capacity 500Ah
3 Rated Energy 25.6KWH
4 Battery Configuration 5.2KWH 5U Packs*5 parallel
5 Battery Cell 3.2V50AH 160PCS
Standard Charge
1 Battery operation temperature range @charging 0-45℃
2 Max charge voltage 58.4±0.4V
3 Rated charge voltage 56.0±0.4V
4 Allowed MAX charge cuurent 250A
5 Rated charge current 200A
Standard discharge
1 Battery operation temperature range @dicharging -20~60℃
2 Output Voltage Range 40~58.4V
3 Allowed MAX discharge current 550A withstand 1min
4 Peak discharge current 600A withstand 5s
5 Rated discharge current 500A
6 Discharge Cut-off Voltage 40V
Operation and Indicator
1 Power Switch ON:all function start OFF:all function shut dowm
2 Run LED(green) Lighting:System working normal Flash:System standby
3 Alarm LED(red) Lighting:System Fault Flash:System warning
4 SOC LED(4pcs green) Charging: SOC<25% LED1,LED2,LED3,LED4flash in turn 25%<SOC<50% LED1lighting,LED2,LED3,LED4 flash in turn 50%<SOC<70% LED1,LED2lighting,LED3,LED4flash in turn 75%<SOC<75% LED1,LED2,LED3lighting,LED4flash in turn Discharge: SOC>75% LED1,LED2,LED3,LED4lighting 50%<SOC<75% LED1,LED2,LED3lighting,LED4off 25%<SOC<50% LED1lighting,LED2,LED3,LED4off SOC<10% LED1 flash,LED2,LED3,LED4 off
1 RS485 For LCD remote control(option)
2 CAN PC control and monitor(one communication CAN card support ten packs parallel)
Mechanical Characteristics
1 Dimension L*W*H(unit)=530*735*1600mm
2 Weight N.W.450kg;G.W.500kg
Storage and Transportation requirements
1 Storage Temperature Less than 1 momth -20~35℃
Less than 6month -10~30℃
2 Storage Humidity 45~75%RH
3 SOC Storage 60~75% SOC
Transport 45~55%SOC
