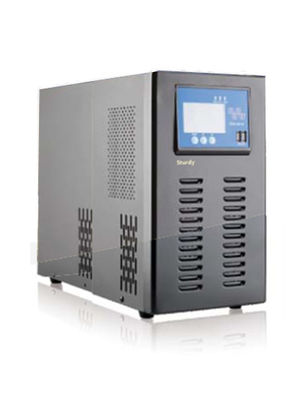

1 - 6KW MPPT Charge Mode Solar Power Inverter With Strong Overload Capacity

1 - 6KW MPPT Charge Mode Solar Power Inverter With Strong Overload Capacity

  • High Light

    solar power 3 phase inverter


    solar panel dc to ac inverter

  • Rated Power (W)
  • Type
    DC/AC Inverters
  • Nature Of Wave String
    Sine Wave Inverter
  • PV Current Efficient
    Above 96%
  • Max. Output Current
  • Display Panel
    LCD / LED
  • Place of Origin
    Shenzhen, China
  • Brand Name
  • Certification
    ICE, ISO
  • Model Number
  • Minimum Order Quantity
    20 pieces
  • Price
  • Packaging Details
    Export Standard Package
  • Delivery Time
    5-8 days for sample order, 15-21 days for large quantity
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    1000 pieces per month

1 - 6KW MPPT Charge Mode Solar Power Inverter With Strong Overload Capacity

1 - 6KW MPPT Charge Mode Solar Power Inverter With Strong Overload Capacity



Product Information:

CNS series single-phase off-grid inverter consist of 3 functional modules: solar controller, pure sine wave inverter and isolated transformer. The controller adapts MPPT technology and intelligent battery management design which is very efficient and smart; integrated pure sine wave inverter and low frequency isolated transformer makes it with excellent overload performance, suitable for a variety of electrical appliances. It supports mains/generator input, take advantages of old diesel generators, saving initial investment and operation maintenance cost.





  1. MPPT controller, maximize utilization of solar panels
  2. Integrated design with controller, inverter and transformer
  3. Pure sine wave output
  4. Output isolated transformer, safe and stable
  5. Mains/diesel generator input interface (optional)
  6. Excellent overload capacity
  7. Suitable for all sorts of electrical appliances
  8. Intelligent battery management function
  9. Complete protections
  10. Display: LCD display + LED status indicator indicate content PV Status, battery capacity, AC Input & Output Volt, load, running Status
  11. Cooling Method:Fan Cooling
  12. Communication: RS232 (Optional)




  1. Remote animal husbandry
  2. Fishery area
  3. Big family to solve people's electricity problems.


Why Choose Us?


  • We have experienced team for more ten years and high-tech equipment.
  • Our products is with ICE, ISO and Chinese TLC
  • We can make product according to your requirements, such as your size, color, design, and your logo.
  • We can offer you very competitive price.
  • You can get expert guides from us all the time.




Technical Specifications:



Model NO. Inverter   600 400 1000 1500 2000 3000 4000 5000 6000
Rated Power (W) 400W 600W 800W 1000W 1500W 2000W 3000W 4000W 5000W 6000W
Peak Power (W) 1200W 1800W 2400W 3000W 4500W 6000W 9000W 12000W 15000W 18000W
System Volt. 24V 24V/48V 48V/96V
Inverter Output Volt. 110V/220V±5% 220V ±5%
Output Frequency 50/60Hz±1%
Efficiency >80% >85%
Overload Capacity 105-120% 30s; 120*150% 10s; >150% 5s; Short Circuit 10ms
Output Wave Puse Sine Wave
Solar Charge Controller
Charge Type MPPT
PV Recommend Power 1500W 1500W/3000W 3000W/6000W
PV Input Volt. Range 35-90V 35~90V(24V)/70-150V(48V) 70-150V(48V)/150-300V(96V)
Input Rate Volt. 40V 40V/102V 102V/170V
Max. Output Current 50A 50A 50A
Floating Charging Volt. 26.80V 53.5V 107V
Equalization Charging Volt. 28.8V 57.6V 115.2V
AC Battery Charger
AC Input Volt. 90~125V (110V) / 180~250V (220V)
Input Frequency 50/60Hz±3%
AC Charge Current Standard 10A; Max. : 15A
AC By-pass
Transfer Time <8ms
AC Input Wave Form AC or Generator (Sine Wave)
Noise Emission [dB (A)] <60dB (1m)
Operating Temp. Range -20~50°C
Storage Temp. Range -15~70oC
Operation Humidity 0-90% RH Non-condensing
Dimension (mm) 410x160X210mm 480x190x345mm 480x240x480mm
Weight (KG) 8KG 9KG 10KG 11 KG 19KG 22KG 35KG 40KG 45KG 54KG
