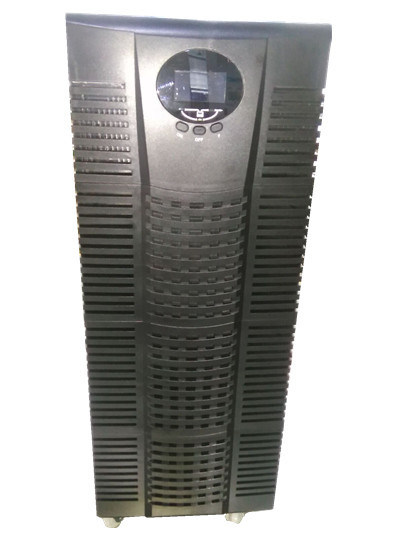

Generator Compatible High Frequency Online UPS Three Phase 3 x 400V Output
Key Application:
Medical
E-business workshop
Data center
Local area network
Personal computers
Telecom
Labs
Cyber service providers
Key Features:
1) True double-conversion
2) Optional isolation transformer offers full isolation and complete common mode noise rejection
3) Output power factor 0.8
4) Optional N+X parallel redundancy
5) Emergency power off function (EPO)
6) 50Hz/60Hz frequency converter mode
7) ECO mode operation for energy saving
8) Accepts dual-mains inputs
9) Generator compatible
10) Active power factor correction in all phases
11) SNMP+USB+RS-232 multiple communications
12) 3-stage extendable charging design for optimized battery performance
13) Adjustable battery numbers
14) Maintenance bypass available
15) Wide input voltage range (110-300 VAC)
16) DSP technology guarantees high performance
17) LCD: Display UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault
18) ECO/EPO (Optional)
19) Short Protect
Reduce the investment cost saving valuable space:
CNH330 Series UPS represents the best solution that is both cost effective and environmental friendly,It delivers an excellent integrated autonomy, reduced footprint and optimum input and output performances, guaranteeing reliable and flexible power.
Specification:
| MODEL | CNH330 10-80KVA | ||||||||||||
| Capacity | 10K | 10KS | 20K | 20KS | 30KS | 40KS | 60KS | 80KS | |||||
| 8KW | 16KW | 24KW | 32KW | 48KW | 64KW | ||||||||
| PHASE | 3-phase in / 3-phase out | ||||||||||||
| INPUT | |||||||||||||
| Nominal Voltage | 380/400/415VAC (3Ph+N) | ||||||||||||
| Input Voltage Range | 305-478 VAC (3-phase) at 100% load ; 190-520 VAC (3-phase) at 50% load | ||||||||||||
| Breaker | 32A | 50A | 60A | 80A | 80A | 105A | |||||||
| Frequency Range | 46~54 Hz or 56~64Hz | ||||||||||||
| Frequency Range | >= 0.99 @ 100% Load | ||||||||||||
| OUTPUT | |||||||||||||
| Output Voltage | 3 x 400V (3Ph+N) | ||||||||||||
| AC Voltage Regulation (Batt. Mode) | ± 1% | ||||||||||||
| Frequency Range (Synchronized Range) | 46~54Hz or 56~64Hz | ||||||||||||
|
Frequency Range (Batt. Mode) |
50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | ||||||||||||
| Current Crest Ratio | 3:1 (max.) | ||||||||||||
| Harmonic Distortion | <= 2 % THD (Linear Load) ; <= 5 % THD (Non-linear Load) | ||||||||||||
| BATTERY | |||||||||||||
| Rated DC Voltage | 192VDC | 240VDC | 480VDC | ||||||||||
| Charging Current (max.) | 1A | 7.5A | 1A | 6A | 5.5A | 10A | |||||||
| Noise (dB) | ≤60(dB) | ||||||||||||
| Dimension D *W * H(mm) |
533*260*501 | 710*260*717 | 840*515*1135 | ||||||||||
| Net Weight (kg) | 93 | 26 | 98 | 50 | 58.5 | 60 | 195 | 208 | |||||
STANDARD:Conform to GB/EC regulation: EMC: GB7260.2/IEC62040-2
-GB/17626.2~5/IEC61000-4-2~5
SAFETY:GB4943
Note: Product specifications are subject to change without further notice.
