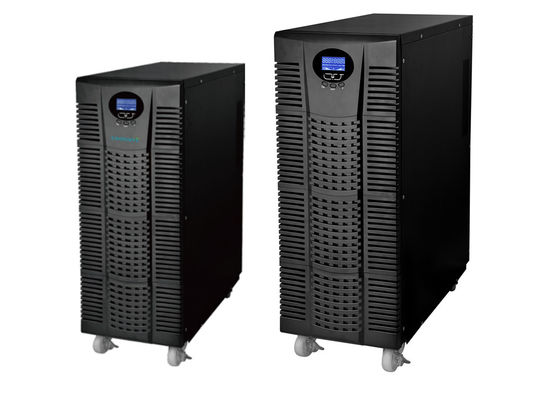

Telecom Double Conversion Online High Frequency UPS Wide Input Voltage Range

Telecom Double Conversion Online High Frequency UPS Wide Input Voltage Range

  • Highlight

    online ups power supply

    ,

    uninterruptible power supply unit

  • Output Voltage
    3 X 400V (3Ph+N)
  • AC Voltage Regulation (Batt. Mode)
    ± 1%
  • Output Frequency
    46~54Hz Or 56~64Hz
  • Frequency Range (Batt. Mode)
    50 Hz ± 0.1 Hz Or 60 Hz ± 0.1 Hz
  • Current Crest Ratio
    3:1 (max.)
  • Harmonic Distortion
    <= 2 % THD (Linear Load) ; <= 5 % THD (Non-linear Load)
  • Place of Origin
    Shenzhen, China
  • Brand Name
    CONSNANT
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
    CNH330
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Export Standard Package
  • Delivery Time
    21 days against the deposit
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    10000 per year

Telecom Double Conversion Online High Frequency UPS Wide Input Voltage Range

Telecom Power Supply High Frequency Online UPS With Wide Input Voltage Range





Application:

  1. Medical
  2. E-business
  3. Local area network
  4. Personal computers
  5. Telecom
  6. Labs
  7. Net servers


Advantages:

  •  True double-conversion
  •  DSP technology guarantees high performance
  •  Output power factor 0.8
  •  Wide input voltage range (110-300 VAC)
  •  Active power factor correction in all phases
  •  50Hz/60Hz frequency converter mode
  •  ECO mode operation for energy saving
  •  Accepts dual-mains inputs
  •  Emergency power off function (EPO)
  •  Short Circuit Protect
  •  Generator compatible
  •  SNMP+USB+RS-232 multiple communications
  •  3-stage extendable charging design for optimized battery performance
  •  Adjustable battery numbers
  •  Maintenance bypass available
  •  N+X parallel redundancy Optional
  •  Optional isolation transformer offers full isolation and complete common mode noise rejection


Reduce the investment cost saving valuable space:


CNH330 Series UPS represents the best solution that is both cost effective and environmental friendly,It delivers an excellent integrated autonomy, reduced footprint and optimum input and output performances, guaranteeing reliable and flexible power.





MODEL CNH330 10-80KVA
Capacity 10K 10KS 20K 20KS 30KS 40KS 60KS 80KS
  8KW 16KW 24KW 32KW 48KW 64KW
PHASE 3-phase in / 3-phase out
INPUT
Nominal Voltage 380/400/415VAC (3Ph+N)
Input Voltage Range 305-478 VAC (3-phase) at 100% load ; 190-520 VAC (3-phase) at 50% load
Breaker 32A 50A 60A 80A 80A 105A
Frequency Range 46~54 Hz or 56~64Hz
Frequency Range >= 0.99 @ 100% Load
OUTPUT
Output Voltage 3 x 400V (3Ph+N)
AC Voltage Regulation (Batt. Mode) ± 1%
Frequency Range (Synchronized Range) 46~54Hz or 56~64Hz

Frequency Range

(Batt. Mode)

50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio 3:1 (max.)
Harmonic Distortion <= 2 % THD (Linear Load) ; <= 5 % THD (Non-linear Load)
BATTERY

Rated DC Voltage 192VDC 240VDC 480VDC
Charging Current (max.) 1A 7.5A 1A 6A 5.5A 10A
INDICATORS
LCD Display UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault
ECO/EPO Optional
Short Circuit Protect Yes
Noise (dB) ≤60(dB)
Dimension
D *W * H(mm)
533*260*501 710*260*717 840*515*1135
Net Weight (kg) 93 26 98 50 58.5 60 195 208



STANDARD:Conform to GB/EC regulation: EMC: GB7260.2/IEC62040-2

-GB/17626.2~5/IEC61000-4-2~5

SAFETY:GB4943

Note: Product specifications are subject to change without further notice.
