1 - 10 KVA Design Online High Frequency UPS Compact High Overload Capacity

1 - 10 KVA Design Online High Frequency UPS Compact High Overload Capacity

  • High Light

    uninterruptible power supply unit

    ,

    computer ups power supply

  • Input Frequency
    50Hz(46-54Hz); 60HZ(56-64Hz)
  • Norminal Voltage
    208/220/230/240VAC Single Phase 2 Wire+G
  • Pwer Factor
    0.8/0.9(optional)
  • Current Crest Ratio
    3:1
  • Transfer Time
    0 Ms(AC Mode↔DC Mode);(AC Mode↔Bypass<4ms)
  • Battery Recharge Time
    5 Hours To 90%
  • Display Panel
    LCD
  • Place of Origin
    Shenzhen, China
  • Brand Name
    CONSNANT
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
    CNH110
  • Minimum Order Quantity
    20
  • Price
    Negotiable
  • Packaging Details
    Export Standard Package
  • Delivery Time
    10-30 days against the order quantity
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    50000 pieces per year

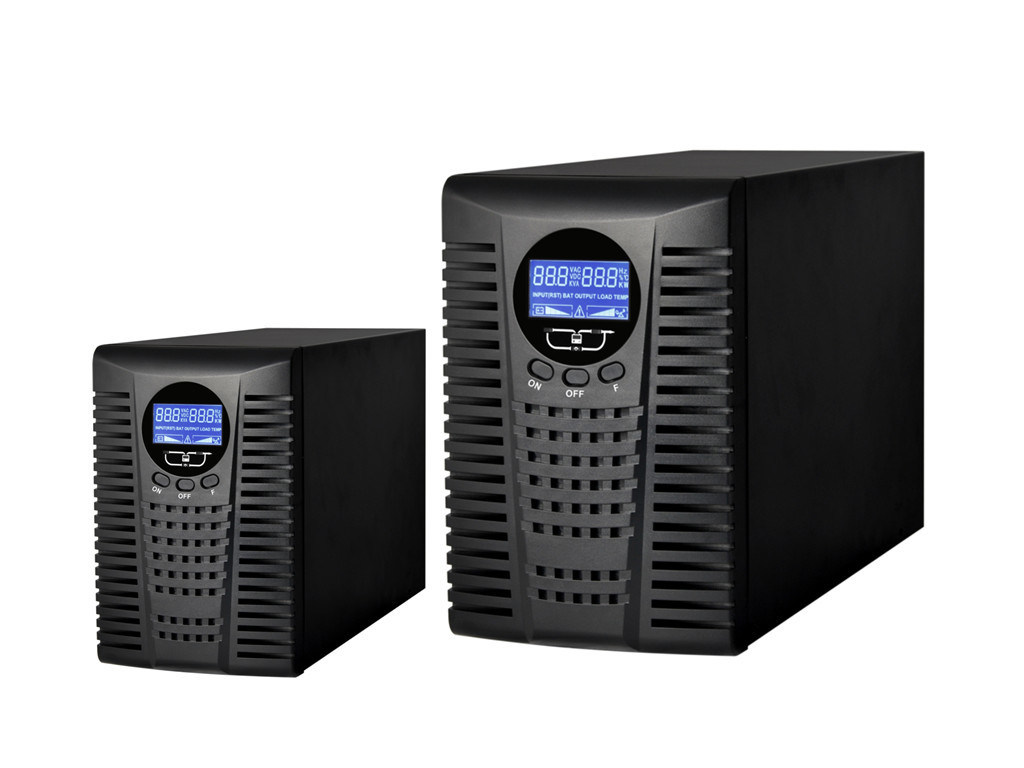

1 - 10 KVA Design Online High Frequency UPS Compact High Overload Capacity

1 - 10 KVA Compact Design High Frequency Online UPS With EMC Requirements




Stable and Reliable, Comprehensive Protection :




CNH110 (1-10KVA ) adopts the double conversion online architecture ideal for resolving all issues on power supply. This state-of-the-art solution is especially designed for eliminating the power loss, extra high or low voltage of utility power, voltage sags or damped oscillation, high-voltage pulse, voltage fluctuation, surge voltage, harmonic distortion, clutter immunity, and frequency fluctuation etc., delivery safely and reliable power supply to guarantee for user's load.




Key Features:





  •  Its cut-edge digital technology of DSP (Digital Signal Processor)
  •  Output power factor up to 0.8 - applicable to the tendency of future load evolution, and deliver higher payload capacity;
  •   Total power factor up to 90%,  minimize the power loss of UPS and save utilization cost for user;
  •   Emergency Power Off (EPO): UPS can be instantly shut off in case of any emergency;
  •   Compliance with EMC requirements of IEC61000-4,provide a clean electric environment.
  •   Active power factor correction (PFC) technology: input power factor approaching to 1, dramatically reducing the immunity on utility grid;
  •  Excellent input frequency range , suitable to different power supply devices, i.e. generator set;
  •   Parallel Kit:  parallel extension and redundancy function
  •  Compact Design, Lower Noise;






Features:




Rich Communication and Monitoring; RS232,USB interface and communication cable




User-friendly interface: LCD (accurate UPS working environment, through the LCD display panel can be set output voltage and frequency, ECO mode ,  to operate the UPS conveniently.




Intelligent battery management: advanced intelligent charge control mode, proper UPS control parameters for intelligent UPS management, adaptation of 50/60Hz power supply system, perfect failure protection and alarm function




Intelligent Power monitoring and Management Software WinPower 2003 :



Support :



  1.   Microsoft Windows95/Me/NT/2000/XP/Unux operating system. Suit for TCP/IP local area network;
  2.   TCP/IP network monitoring ; Provide a hierarchical directory structure management network; Unusual event can be notified to user through broadcast , e-mail, messenger call or mobile messager; Automatically detective the UPS model and the communication port; Provide password protection;
  3.  Timing boot up / shut off UPS function;
  4.  Timing UPS self-test function;
  5. Graphically displayed UPS status function in real time;
  6. Network to deactivate the function of multiple servers and workstations;
  7.  Accept the abnormal power;
  8.   To shut off most of the applications and the preservation of related document;
  9.  The online help function; with data records (including mains, ups, load, battery), and event function,to convenient the system administrator for the routine maintenance.




Technical specifications:





Model CNH110 1-10KVA
1KS 1K 2KS 2K 3KS 3K 6KS 6K 10KS 10K
Capacity 1KVA/800W 2KVA/1600W 3KVA/2400W 6KVA/4800W 10KVA/8000W
Input
Nominal Voltage 208/220/230/240VAC Single phase 2 wire+G
Nominal Frequency 50/60HZ
Voltage Range 115~300VAC 120~275VAC
Frequency Range 50HZ: (46~54HZ); 60HZ:(56HZ~64HZ)
Power Factor > 0.98 0.99
Output
Voltage Precision 208/220/230/240X(1±2%)VAC
Frequency Precision 50/60Hz±0.05Hz
Power Factor 0.8 0.8/0.9(Optional)
Harmonic Distortion Linear load<3% Non-linear<6%
Overload Capacity load > 110% for 47s;
load > 150% for 25s;
load > 200% for 300ms;
105% < load ≤125% for 60s;
125% < load ≤150% for 30s;
load >150% for 0.5s.
Current Crest Ratio 3:1
Transfer Time 0 ms(AC mode↔DC mode);(AC mode↔Bypass<4ms)
Battery
DC Voltage 36VDC 72VDC 96VDC 192 or 240VDC(Optional)
Recharge Time 5 hours to 90%(it means standard model which battery inside UPS)
Recharge Current 1A 7A 1A 8A 1A 8A 2A 4A 2A 4A
Panel Display
LCD UPS status, input/output voltage and frequency, battery voltage, capacity, load temperature
Communication
Communication port RS232, SNMP Card(Optional),USB port(Optional)
Working Environment
Temperature 0ºC~40ºC
Relative Humidity 0~95%(Non-condensing)
Storage Temperature -25ºC~55ºC
Elevation 1500m
Noise Level <45dB <50dB <50dB





FAQ:



Q1: What's included in products?

A: It is included UPS unit, user manual, 2% spare parts for emergency, test certificate(optional)


Q2. Your UPS meet CE requirements?

A:Our UPS is with the certificate of CE, ISO and Chinese TLC certificates.



Q3: Can we change the shape, size, color or printing based on the original design?

A: Yes, and OEM, ODM accepted


Q4:. Can you design one specially?

A: Yes
