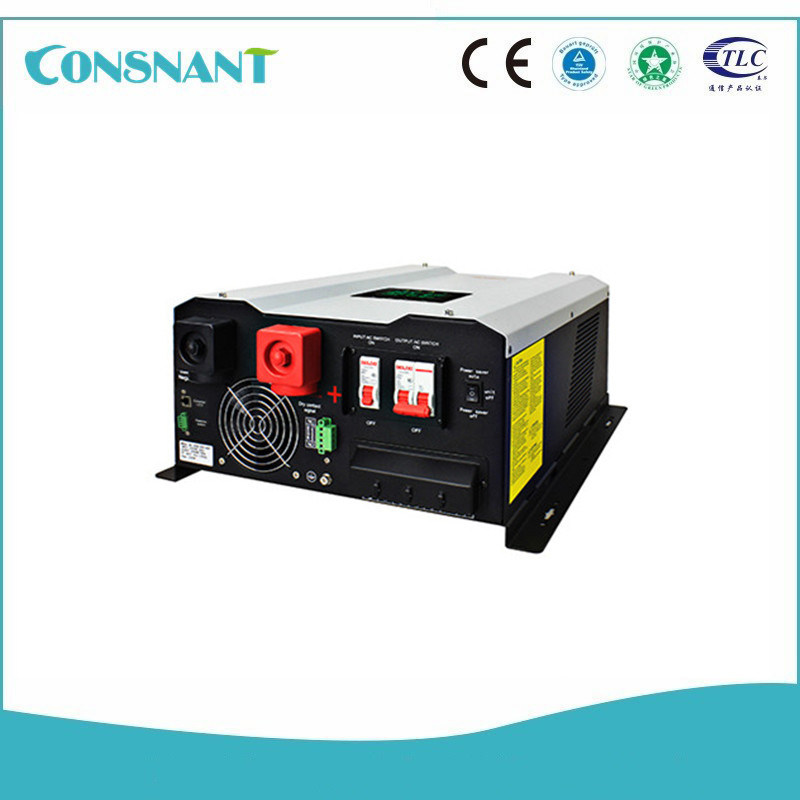

Dry Contact Solar Power Inverter With Multiple Protection Off - grid 1 - 12KW
Brief Description:
CNS110 Series Hybrid Inverter is designed to serve as a backup power supply for AC loads. The input power of CNS110 Series hybrid inverter comes from PV system and AC grid which not only supply power to AC loads but also charge the battery bank when the power from AC grid or AC generator is present(also known as Line Mode).
In the event of the AC grid (or AC generator) outage, the AC loads can be alternatively powered by PV system(if the illumination is sufficient) and the battery bank.
Product Features:
1. AC/Solar Charging Off Grid Hybrid Inverter.
2. LED/LCD display, Enhanced functions setting via LCD, Man-machine intelligent design
3. Built-in 40A/60A optional MPPT solar charger controller.
4. LCD shows the solar capacity.
5. 5 stages adjustable AC charging current. AC charging also can be closed
6. AC/DC priority modes can be set.
7. Generator restart signal. (Dry contact)
8. 3 times peak power. Strong loading capacity.
9. Overload, output short-circuit protection.
System parameter :
Over-load Protection: 110%<load<150%, beeps 0.5s every 1s, and fault after 60s off the output,
Load>150%, beeps 0.5s every 1s, and fault after 20s.
Surge rating(10s): 1:3(VA)
Power Saver: Load≦25W(enabled on “P/S auto” setting of Remote comtro;)
Protections: Low battery, over charging, overload, over temp
Indicatoers: LED+LCD Display
Why Choose Us?
We have experienced team for more ten years and high-tech equipment.
Our products is with ICE, ISO and Chinese TLC
We can make product according to your requirements, such as your size, color, design, and your logo.
We can offer you very competitive price.
You can get expert guides from us all the time.
CNS110 Series Technical Specifications:
| Battery Inverter Mode Specifications: | |||
| Output |
Output Voltage Waveform |
Sine wave | |
|
Rated Output Power(KW) |
LV:1-6KW | HV:1KW-12KW | |
| Power Factor | 0.9~1.0 | ||
|
Nominal Output Voltage(V) |
LV:120Vac±10% rms | HV:230 Vac±10% rms | |
|
Nominal Output Frequency(Hz) |
60Hz±0.3Hz 50Hz±0.3Hz |
||
| DC Voltage |
Nominal DC Input Voltage |
12VDC/24VDC/48VDC | |
| DC Voltage Range | 10-15.5Vdc for 12V battery | ||
| 20-31.0 Vdc for 24V battery | |||
| 40-62.0 Vdc for 48V battery | |||
| Low Battery Alarm | 10.5Vdc±0.3Vdc for 12V Battery | ||
| 21.0 Vdc±0.6Vdc for24V Battery | |||
| 42.0 Vdc±1.2Vdc for 48V Battery | |||
|
Low DC input shut-down |
10.0Vdc±0.3Vdc for 12V Battery | ||
| 20.0Vdc±0.6Vdc for 24V Battery | |||
| 40.0Vdc±1.2Vdc for 48V Battery | |||
| High DC input alarm&fault | 16Vdc±0.3Vdc for 12V Battery | ||
| 32Vdc±0.6Vdc for 24V Battery | |||
| 64Vdc±1.2Vdc for 48V Battery | |||
| High DC input recorvery | 15.5Vdc±0.3Vdc for 12V Battery | ||
| 31.0Vdc±0.6Vdc for 24V Battery | |||
| 62.0Vdc±1.2Vdc for 48V Battery | |||
| AC Charger | Nominal Charge Current | 20A/35A/50A/70A/90A(5satges adjustable charging current) | |
| Charge Current Regulation | ±5Adc | ||
| Over Charge protection | Bat.V≧15.5VDC for 12V battery | ||
| Bat.V≧31.0VDC for 24V battery | |||
| Bat.V≧62.0VDC for48V battery | |||
| Beeps 0.5s every 1s& fault after 60S | |||
| Algorithm | |||
| Three stage:Boost CC(Constant current stage) →Boost CV(Constant voltage stage) →Float(constant voltage stage) | |||
| Solar Charger | Rated Charge Current | 40A | 60A |
| Rated Charge Battery Voltage Type | 12V/24V/48V | 12V/24V | |
| Max PV open Circuit array voltage | 12V for 40Vdc | ||
| 24V for 40Vdc | |||
| 48V for 110Vdc | |||
| Charger Mode | MPPT | ||
| PV Low Voltage Re-connect | PV≧Bat.V=3V | ||
| PV Low Voltage Disconnect | PV≦Bat.V | ||
| Efficiency | Efficiency | ≧97% | |
| Efficiency(Battery Mode) | ≧85% | ||
| Efficiency(Line Mode) | >98% | ||
| Transfer Time | AC to DC | 20ms(Max) | |
| DC to AC | 15ms(Max) | ||
| General Specifications | Operation Temperature Range | 0℃ to 40℃ | |
| Strorage Temperature | -15℃~60℃ | ||
| Operation Humidity | 5% to 95%(non-condensing) | ||
| Audible Noise | 60dB max | ||
| Cooling | Forced air, Variable speed fan | ||
| Dimension(L*W*H) |
1-3KW: 526*423*260mm 4-6KW:530*396*190mm 7-12KW:627*416*204mm |
||
| Net Weight(Kg) | 1KW:21.5Kg; | 1.5KW:23.5Kg | |
| 3KW:30.5Kg | 4KW:32Kg | ||
| 5KW:36.5Kg | 6KW:40.5Kg | ||
| 7KW:43.5Kg | 8KW:50Kg | ||
| 10KW:57.5Kg | 12KW:60Kg | ||
