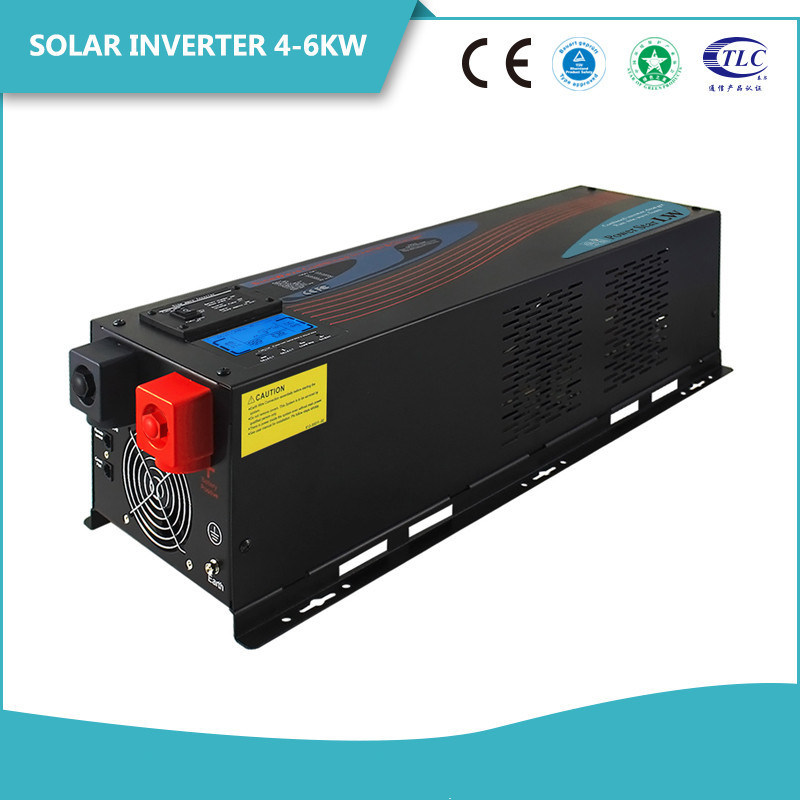

Microprocessor Control Solar Power Inverter Single Phase With LED / LCD Digital Display

Microprocessor Control Solar Power Inverter Single Phase With LED / LCD Digital Display

  • High Light

    gridgrid hybrid solar power inverter


    solar panel dc to ac inverter

  • Frequency
    50Hz±0.3Hz 60Hz±0.3Hz (bypass Mode Sync To Input)
  • Short Circuit Protection
    Yes, Shutdown After 10ms
  • Power Factor
  • AC Output Phase
    Single Phase
  • AC Output Waveform
    Pure Sine Wave (bypass Mode Sync To Input)
  • AC Output Peak Power
    3 Times Of Rating Power
  • Place of Origin
    Shenzhen, China
  • Brand Name
  • Certification
    CE, ISO
  • Model Number
    MINI CNS112
  • Minimum Order Quantity
  • Price
    US$112-145/ pcs
  • Packaging Details
    Export Standard Package
  • Delivery Time
    5-7days for sample, 7-15 for mass production
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    100000 pieces per year

Microprocessor Control Solar Power Inverter Single Phase With LED / LCD Digital Display


 LED/LCD Digital Display Solar Power Inverter Pure Sine Wave



500W-1000W CNS112,  Mini Pure Sine Wave Inverter,  is equiped with LED/LCD digital display, 3 times peak power, low frequency type with transformer, UPS function. It widely applied in wind generator, Solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station.

Main Features:

1. LED/LCD digital display show voltage, load and battery info in real time.
2. Peak power is three times of rated power.
3. Can work with inductive load such as air conditioner, motor door and so on.
4. Pure sine wave output, available for sensitive load.
5. 4-step progressive charging, 7 battery type selector.
6. Fast and powerful charger with 35A and 75A/90A.
7. Accept generator's energy output.
8. High power factor 0.9, low power consumption.
9. Automatically transfer between battery and line modes.
10. Microprocessor control guarantees high reliability.
11. Bypass without battery connected.
12. Remote control function.
13. Protection against: Over load, over temperature, over charging, low battery
14. Reverse connection (optional by hard connector), Blackouts




System parameter:

Efficiency: Battery Mode > 85%; Line Mode > 96%
Power Saver:  Load <=25W (Enabled on "P/S auto" setting of Remote control)
Audible Alarm: Sounding when the heat sink's tem is over 100ºC and shutdown after 30 seconds;
Over Load Protection: 110% <load<150%, beeps 0.5s every 1s, and Fault after 60s.
                                        Load>150%, beeps 0.5s every 1s, and Fault after 20s.
Protections:  low battery, over charging, over temp, over load
Communications: RS-232/USB/SNMP(custom-made)

Technical specifications:


MODEL MINI CNS112-500 MINI CNS112-750 MINI CNS112-1000
Nominal Power 500W 750W 1000W
AC Input
Phase &
Single phase & Pure Sine Wave
Voltage 110/120/130VAC or 220/230/240VAC
Acceptable Voltage 95-126VAC or 194-253VAC±4%
Low Line Disconnect 85VAC±4% or 184VAC±4%
Low Line Re-connect 95VAC±4% or 194VAC±4%
High Line Disconnect 136VAC±4% or 263VAC±4%
High Line Re-connect 126VAC±4% or 253VAC±4%
Frequency 50Hz:41-54Hz 60Hz:51-64Hz
AC Output
Phase & waveform Single phase & Pure Sine Wave (bypass mode sync to input)
Voltage 110/120/130VAC or 220/230/240VAC±10%rms (bypass mode sync to input)
Frequency 50Hz±0.3Hz 60Hz±0.3Hz (bypass mode sync to input)
Peak Power 3 times of rating power
Short Circuit
Yes, shutdown after 10ms
Power Factor 0.9-1.0
DC Input
Battery Voltage 12VDC or 24VDC
Minimum Start
10VDC or 20VDC
Low Battery Alarm 10.5±0.3vdc or 21±0.6vdc
Low DC input
10±0.3vdc or 20±0.6vdc
High DC input Alarm & Fault 16±0.3vdc or 32±0.6vdc
High DC input
15.5±0.3vdc or 31±0.6vdc
MAX Charger
20A/35A (According to the Inverter model)
Other Specifications
Operating Environment 0-40ºC,0-90%RH(non-condensing)
Audible Noise <60dB
Net Weight(KG) 8.5kg 11kg 14.5kg


L * W * H

380 X182 X160mm
