Online 70HZ High Frequency UPS System Zero Transfer Double Conversion PFC

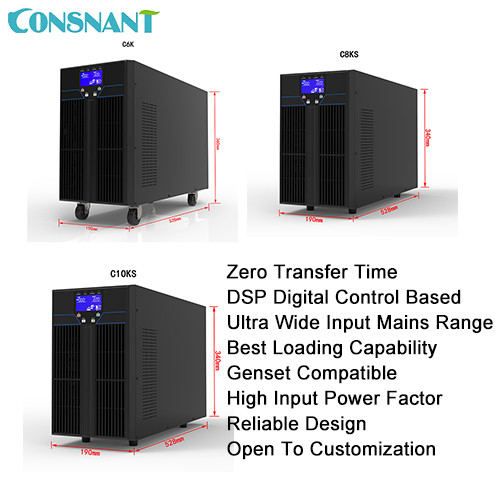

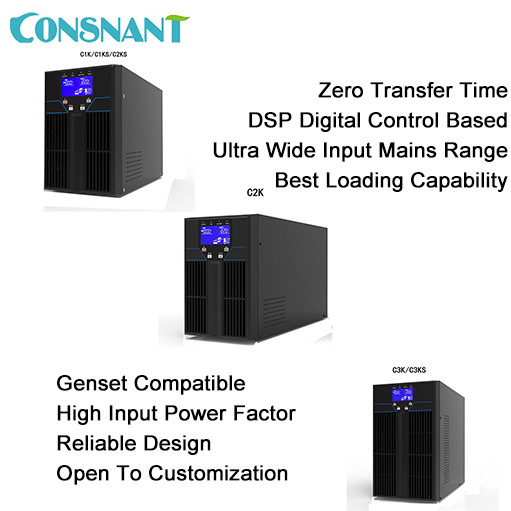

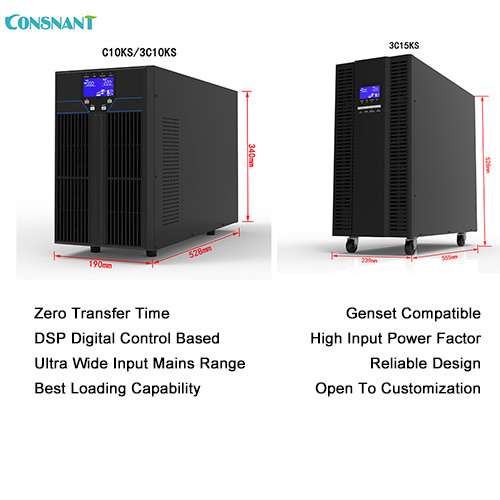

CNH110 HIGH FREQUENCY ONLINE UPS

Key Feature:

Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues

DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply

Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life

Best Loading Capability
Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application

Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.

High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer

Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion

Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system

Specification Refer:



Model C1K C1KS C2K C2KS C3K C3KS
Capacity VA/W 1KVA/800W 2KVA/1.6KW 3KVA/2.4KW
Topology Double Conversion Online UPS
Phase Single Phase Input Single Phase Output
Mains Input Wiring L/N+PE
Rated Voltage 208/220/230/240VAC
Voltage Range 90~300VAC
Frequency Range 40Hz-70Hz
Input Power Factor ≥0.99
AC Output Wiring L/N+PE
Output Voltage 208/220/230/240VAC
Voltage Regulation ±1%
Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform Pure Sine Wave
Distortion(THDV%) <2%(Linear Load)
<7%(None-Linear Load)
Over load capacity 1Min@105%~125%Rated Load
30Sec.@125%~150%Razoad
Efficiency AC/AC Mode 88% 89% 90%
DC/AC Mode 86% 87% 88%
Battery
&
Charge
Rated Battery Voltage ① 24VDC
Internal
36VDC
External
48VDC
Internal
72VDC
External
72VDC
Internal
96VDC
External
Battery Capacity 12V/7AH External Battery Depends 12V/7AH External Battery Depends 12V/7AH External Battery Depends
Backup Time >6mins @ Half Load >6mins @ Half Load >6mins @ Half Load
Charging Current Standard Model with Internal Battery:1A
Long Backup Time Model :4A
Physical Chassis Style RACK / Tower (separated)
Tower Dimension
1KS: 145(W)X220(H)x250(D)mm
1K, 2KS: 145(W)X220(H)x318(D)mm
2K:145(W)X220(H)x390(D)mm
3K/3KS: 190(W) x 318(H) x 368(D)mm
Rack Dimension 3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery
1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D)
Weight (kg) 8.9 4.2 14 5.9 21.6 8.3
HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards Communication 1. RS232 PORT
2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
Optional Extension Card CMC MODBUS Card, USB Card, Relay Card
(Needs assembly according to order request before shipping)
Operating Environment
Endurance
Temperature range -10~50oC
Relative Humidity 0-98%(Non-condensing)
Acoustics Noise <55dB @ 1 meters



Model C1K-LV C1KS-LV C2K-LV C2KS-LV C3K-LV C3KS-LV C5K-LV C5KS-LV
Capacity VA/W 1KVA/800W 2KVA/1.6KW 3KVA/2.4KW 5KVA/5.4KW
Topology Double Conversion Online UPS
Phase Single Phase Input Single Phase Output
Mains Input Wiring 1 phase 3 wires (L/N+PE)
Rated Voltage 110/115/120/127VAC
Voltage Range Line-Neutral: 90~300VAC
Frequency Range 40Hz-70Hz
Input Power Factor ≥0.99
AC Output Wiring 1 phase L/N+PE
Output Voltage 110/115/120/127VAC
Voltage Regulation ±2%
Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform Pure Sine Wave
Distortion(THDV%) <2%(Linear Load)
<7%(None-Linear Load)
Over load capacity 1Min@105%~125%Rated Load
30Sec.@125%~150%Razoad
10min@105%~125%
60s@125%~150%
0.5S@>150%
Efficiency AC/AC Mode 88% 89% 90% 92%
DC/AC Mode 86% 87% 88% 90%
Battery
&
Charge
Rated Battery Voltage ① 24VDC
Internal
36VDC
External
48VDC
Internal
72VDC
External
72VDC
Internal
96VDC
External
144VDC
Internal
192VDC
External
Battery Capacity 12V/7AH External Battery Depends 12V/7AH External Battery Depends 12V/7AH External Battery Depends 12V/7AH External Battery Depends
Backup Time >6mins @ Half Load >6mins @ Half Load >6mins @ Half Load >6mins @ Half Load
Charging Current Standard Model with Internal Battery:1A
Long Backup Time Model :4A
Physical Chassis Style RACK / Tower (separated)
Tower Dimension
1KS: 145(W)X220(H)x250(D)mm
1K, 2KS: 145(W)X220(H)x318(D)mm
2K:145(W)X220(H)x390(D)mm
3K/3KS: 190(W) x 318(H) x 368(D)mm
C5KS-LV
190 x 360x 528
Rack Dimension 3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery
1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D)
Weight (kg) 8.9 4.2 14 5.9 21.6 8.3 37 16
HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards Communication 1. RS232 PORT
2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
Optional Extension Card CMC MODBUS Card, USB Card, Relay Card
(Needs assembly according to order request before shipping)
Operating Environment
Endurance
Temperature range -10~50oC
Relative Humidity 0-98%(Non-condensing)
Acoustics Noise <55dB @ 1 meters



Model C6K C6KS C8K C8KS C10K C10KS
Capacity VA/W 6KVA/5.4KW 8KVA/7.2KW 10KVA/9KW
Topology Double Conversion Online UPS
Phase Single Phase Input Single Phase Output
Mains Input Wiring L/N+PE
Rated Voltage 208/220/230/240VAC
Voltage Range 90~300VAC
Frequency Range 40Hz-70Hz
Input Power Factor ≥0.99
AC Output Wiring L/N+PE
Output Voltage 208/220/230/240VAC
Voltage Regulation ±1%
Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform Pure Sine Wave
Distortion(THDV%) <2%(Linear Load)
<7%(None-Linear Load)
Over load capacity 10Min@105%~125%Rated Load
60Sec.@125%~150%Rated Load
0.5Sec.@>150%Rated Load
Efficiency AC/AC Mode >93%
DC/AC Mode >91%
Battery
&
Charge
Rated Battery Voltage ① 144VDC
Internal
192/240VDC
External
192VDC
Internal
192/240VDC
External
192VDC
Internal
192/240VDC
External
Battery Capacity 12V/7AH External Battery Depends 12V/7AH External Battery Depends 12V/7AH External Battery Depends
Backup Time >6mins @ Half Load >6mins @ Half Load >6mins @ Half Load
Charging Current Standard Model with Internal Battery:1A
Long Backup Time Model :4A
Physical Chassis Style RACK / Tower (separated)
Tower Dimension
C6KS, C8KS, C10kS: 190(W)X340(H)x534(D)mm
C6K:190(W)X360(H)x534(D)mm
C8K, C10K: 190(W)X456(H)x534(D)
Rack Dimension UPS: 438mm(W) x 88mm(2U)(H) x 500mm(D) without Internal Battery
Battery Pack: 438mm(W) x 88mm(2U)(H) x500mm(D)
Weight (kg) 8.9 4.2 14 5.9 21.6 8.3
HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards Communication 1. RS232 PORT
2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
Optional Extension Card CMC MODBUS Card, USB Card, Relay Card
(Needs assembly according to order request before shipping)
Operating Environment
Endurance
Temperature range -10~50oC
Relative Humidity 0-98%(Non-condensing)
Acoustics Noise <55dB @ 1 meters



Model 3C10K 3C10KS 3C15K 3C15KS 3C20K 3C20KS
Capacity VA/W 10KVA/9KW 15KVA/13.5KW 20KVA/18KW
Topology Double Conversion Online UPS
Phase Single Phase Input Single Phase Output OR
3 Phases Input Single Phase Output
Mains Input Wiring Single Phase L/N+PE OR
3 Phases (L1,L2,L3,N)/N+PE
Rated Voltage 208/220/230/240VAC
Voltage Range Line-Neutral 90~300VAC
Line-Line 150~500VAC
Frequency Range 40Hz-70Hz
Input Power Factor ≥0.99
AC Output Wiring L/N+PE
Output Voltage 208/220/230/240VAC
Voltage Regulation ±1%
Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform Pure Sine Wave
Distortion(THDV%) <2%(Linear Load)
<7%(None-Linear Load)
Over load capacity 10Min@105%~125%Rated Load
60Sec.@125%~150%Rated Load
0.5Sec.@>150%Rated Load
Efficiency AC/AC Mode >94%
DC/AC Mode >92%
Battery
&
Charge
Rated Battery Voltage ① 192VDC
Internal
192/240VDC
External
192VDC
Internal
192/240VDC
External
192VDC
Internal
192/240VDC
External
Battery Capacity 12V/7AH x 16pcs External Battery Depends 12V/7AH x 32pcs External Battery Depends 12V/7AH x 32pcs External Battery Depends
Backup Time >6mins @ Half Load >6mins @ Half Load >6mins @ Half Load
Charging Current Standard Model with Internal Battery:1A
Long Backup Time Model :4A
Physical Chassis Style RACK / Tower (separated)
Tower Dimension
3C10kS: 190(W)X340(H)x535(D)mm
3C15/20kS: 238(W)X528(H)x540(D)mm
Rack Dimension 3C10kSR: 438mm(W) x 132mm(3U)(H) x 500mm(D)
3C15kSR/3C20kSR:4U 438(W)x176(H)x530(D)MM
Weight (kg) 8.9 4.2 14 5.9 21.6 8.3
HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards Communication 1. RS232 PORT
2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
Optional Extension Card CMC MODBUS Card, USB Card, Relay Card
(Needs assembly according to order request before shipping)
Operating Environment
Endurance
Temperature range -10~50oC
Relative Humidity 0-98%(Non-condensing)
Acoustics Noise <60dB @ 1 meters


Remark:
① Battery Capacity and voltage is open to customization
② Dimension might vary for different bezel
③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order
④ More parameter customization,please contact sales representative
