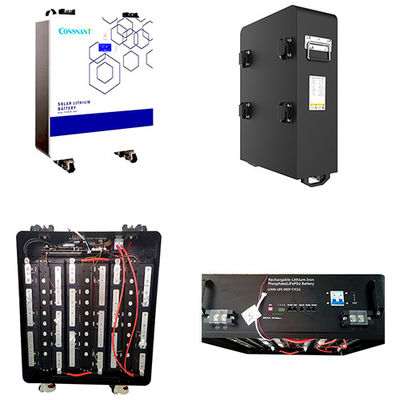

Multiple Model Lithium Lron BMS Battery Pack 100Ah 200Ah  Rechargeable

Multiple Model Lithium Lron BMS Battery Pack 100Ah 200Ah Rechargeable

  • High Light

    Lithium Lron BMS Battery Pack

    ,

    Multiple Model BMS Battery Pack

    ,

    100Ah Rechargeable Lithium Ion Pack

  • Mangement
    BMS System
  • Battery Type
    LiFePO4 Battery
  • Nominal Voltage
    48V
  • Operating Voltage Range
    37.5V~54.75V
  • Operating Temperature
    -20℃-60℃
  • Storage Temperature
    -20℃-50℃
  • Shipment Voltage
    ≥48V
  • Place of Origin
    Shenzhen,China
  • Brand Name
    CONSNANT
  • Certification
    CE, ISO9001, ISO14001
  • Model Number
    CNHD-48V100Ah/200Ah-15S
  • Minimum Order Quantity
    2 Unit
  • Price
    Negotiable
  • Packaging Details
    Export Standard Package
  • Delivery Time
    20 days after receving 30% deposid
  • Payment Terms
    L/C, T/T, , MoneyGram
  • Supply Ability
    500 set per month

Multiple Model Lithium Lron BMS Battery Pack 100Ah 200Ah Rechargeable

100Ah/200Ah Lithium-Ion Rechargeable Battery



Description and Model:



     This product is a new type of backup power supply for the development of high-tech products,

with integration, miniaturization, light, intelligent, standardized, environmental protection and other

characteristics, can be widely used in indoor distribution stations, integrated base stations,  arginal

stations, distributed power supply and other fields.

    Adopted by the high safety performance, lithium battery cathode material for lithium iron phosphate,

high safety, high stability, high cycle life, high pecific energy, specific power, low temperature performance

is superior, but large current charge and discharge, and many other advantages.

   Standard design, low operating environment requirements (can be in -20 ~ 60℃, humidity < 95% normal

work), small size, light weight, easy installation, simple maintenance in the later stage, can save considerable

upfront investment and maintenance costs in the later stage.





Manufacturing standard:



  • YDB032-2009 communication backup type lithium ion battery pack;
  • YDT - 2011-2344.1 the communication lithium iron phosphate battery part 1: integrated battery ";
  • YDT, 1051-2010" communication board (stand) power system total technical requirements ";
  • YDT - 2005-1363.3 the communication board (station) power supply, air conditioning and environment centralized monitoring management system "of the relevant standards


Key Feature:



1. LiFePO4 battery has high safety, high energy density and excellent cycling performance;



2. BMS battery management system, has the protection functions of over discharge, over charge,

    over current, high temperature and low temperature to ensure the safety of the battery pack;



3. Automatic charge and discharge management;



4. Alarm function, when the battery voltage is lower than the alarm value or too low, it will automatically

    power down to protect the battery;



5.The battery pack has good electromagnetic compatibility.



Specification Reference:



NO. Item Specification

1

Nominal Capacity 100Ah 200Ah
2 Watt hour 4800Wh 9600Wh
3 Standard charging method 50A
4 Maximum continuous charging current 100A
5 Standard discharging method 50A
6 Maximum
continuous discharge current
100A
7 Cycle Life ≥3000 cycles (0.5C charge ,0.5C discharge)
80%DOD;±25℃
8 Communication mode RS485
9 Charge retention and
capacity recovery capability
Standard charge the battery, and then put aside at
room temperature for 28d or 55 ℃ for 7d, Charge
retention rate≥90%, Recovery rate of charge≥90
10 Weight 51KG 110KG
11 Size (W399.5×L563×D185mm )±5mm (W575×H764×D190mm )±5mm
17 Designed life 10 YEARS
18 Guarantee period 3 YEARS
