High Light
RS232 Hybrid Solar Inverter
,6000W Hybrid Solar Inverter
,24VDC Grid Tie Hybrid Inverter
-
Output TypeSingle
-
TypeDC/AC Inverters
-
Output Frequency50/60HZ
-
Input Voltage24VDC/48VDC
-
Output Voltage220VAC/230VAC
-
WarrantyOne Year
-
DisplayLCD
-
ColorSky Blue
-
Output WaveformPure Sine Wave Output,Prue Sine Wave
-
Product NameSolar Inverter
-
Efficiency97%
-
ApplicationSolar System Compatible To Genetator
-
Place of OriginChina
-
Brand NameCONSNANT
-
CertificationCE
-
Model NumberMPS-V PLUS
-
Minimum Order Quantity10 pieces
-
Packaging Detailscolor box
-
Delivery Time5-8 working days
-
Payment TermsT/T
-
Supply Ability500 pieces per month

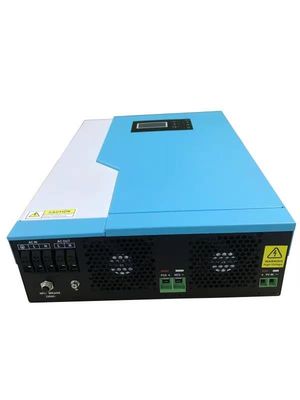

6000W RS232 Hybrid Solar Inverter 24VDC Grid Tie Hybrid Inverter
Special design for home application include computer
Features:
1. Pure sine wave solar inverter
2. Wifi & GPRS available for IOS and android
3. Built-in 100A MPPT solar charger
4. Built-in anti-dust kit for harsh environment
5. Output power factor 1.0
6. Inverter running without battery
7. High PV input voltage range (120 ~ 500VDC)
8. Smart battery charge design to optimized battery life
| Model | MPS-V 3500W-PLUS | MPS-V 5500W-PLUS |
| Rated Power | 3500VA/3500W | 5500VA/5500W |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range |
170-280VAC (for personal computers) 90-280VAC (for home appliances) |
|
| Frequency Range | 50Hz/60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Battery Mode) | 230VAC ＋－ 5% | |
| Surge power | 7000VA | 11000VA |
| Efficiency (peak) PV to INV | 97% | |
| Efficiency (Peak) BAT to INV | 94% | |
| Transfer time |
10 ms (for personal computers) 20 ms (for home appliances) |
|
| Wave form | Pure sine wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| Maximum Charge Current | 80A | 80A |
| SOLAR CHARGER | ||
| MPPT Range@ Operating Voltage | 120-450VDC | |
| MAX. PV Array Power | 5000W | 6000W |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Charging Current | 100A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension (D*W*H mm) | 440*300*100 | |
| Net Weight (Kgs) | 11 | 12 |
| Communication Interface |
USB/RS232 (standard) GPRS/WIFI (Optional) |
|
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | 0 ℃ to 55 ℃ | |
| Storage Temperature | - 15 ℃ to 60 ℃ | |
